Concurrent chromatographic determination of pseudoephedrine and loratadine from combination syrups and tablets
Future Journal of Pharmaceutical Sciences volume 7, Article number: 138 (2021)
Chromatographic separation of polar and nonpolar compounds when presented in combined dosage forms has always been considered as great analytical challenge. Separation and retention of both polar and nonpolar compounds by the same stationary phase can be a useful approach for analyses of complex samples with such a difference in chemical properties. Loratadine (nonpolar) and pseudoephedrine (polar) are typical examples of this situation.
The Box–Behnken design was used to optimize the separation process, an efficient separation of loratadine and pseudoephedrine was achieved within 6 min; employing a mixture of 16.0 mM ammonium acetate buffer (pH 4.5) and acetonitrile (23:77, v/v) as isocratic mobile phase, pumped at 1.0 mL/min through a Zorbax cyanopropyl column (250 mm × 4.6 mm, 5 μm), the analytes were detected at 250 nm. Under the same conditions, separation of sodium benzoate preservative co-formulated with the two analytes in syrup formulation was also achieved. The calibration curve demonstrated excellent linearity in the range of 24.6–123.2 μg/mL and 594.8–2974.0 μg/mL for loratadine and pseudoephedrine, respectively with determination coefficient (r2) > 0.999.
The method’s accuracy bias < 2.0%, repeatability and intermediate precision (%RSD < 2.0%) were verified. In addition, system suitability parameters were found within the acceptable limits. Satisfactory results were obtained upon the application of the validated method to the analysis of commercial tablet and syrup formulations.

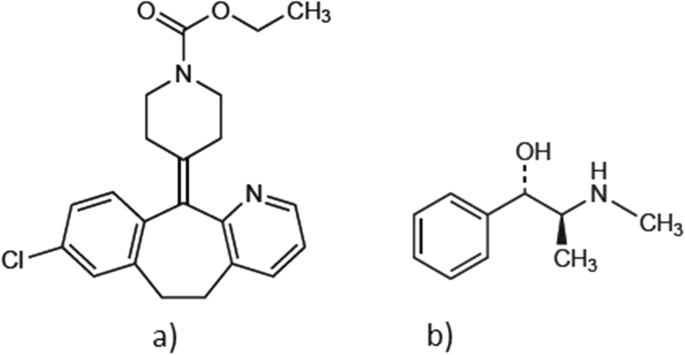

Loratadine (LOR) chemically is ethyl 4-(8-chloro-5,6-dihydro-11-H-benzo -[5,6] cyclohepta[1,2-b] pyridin-11-ylidene)-1-piperidine-carboxylate (Fig. 1a). It is a long-acting, non-sedative second-generation H1 receptor blocker with no significant antimuscarinic activity. It is used for the symptomatic relief of allergic conditions including rhinitis and chronic urticaria .
Pseudoephedrine (PSE) chemically is (1S, 2S)-2-(Methyl-amino)-1-phenylpropan-1-ol (Fig. 1b). Pseudoephedrine is a sympathomimetic agent with both direct and indirect actions . Salts of pseudoephedrine are given orally for the symptomatic relief of nasal congestion; it is combined with other ingredients in preparations intended for the relief of cough and cold symptoms.
Combined dosage forms of loratadine and pseudoephedrine sulfate are prescribed to relieve symptoms of allergic rhinitis . Their commercial association exhibits important mass difference between the two analytes (PSE: LOR up to 24:1, w/w). Liquid formulations in addition to the two active contain preservatives such as methylparaben (MP), prorylparaben (PP), or sodium benzoate (SB). All these aspects increase the analytical challenge.
Pseudoephedrine is characterized by being highly polar (Log P = 0.9), while loratadine is highly apolar (Log P = 5.20) . This great difference in polarity between the two compounds offers another interesting analytical challenge when subjected to chromatographic analysis.
The combination of LOR and PSE in syrup formulation is not official in any pharmacopeia, and it is not commonly used worldwide; accordingly, no analytical method so far has been developed for their determination in liquid formulations; only few reversed-phase chromatographic methods have been developed for the determination of the two analytes in tablets [3,4,5]. The other analytical techniques reported were multi-wavelength spectroscopy , first derivative spectroscopy , chemometric treatment of spectrophotometric data , analysis of nonlinear second-order spectrophotometric data generated by a pH-gradient flow injection technique and artificial neutral networks , high-performance thin layer chromatography , and cation-exchange chromatography .
The reported reversed-phase chromatographic methods [3, 5] were not efficient enough to obtain optimum separation between the two analytes; in both methods under reversed-phase conditions, the hydrophilic component PSE has eluted with the solvent front, indicating insignificant retention and possible interference with the formulation; while the retention of LOR was sacrificed leaving it to elute late. To overcome this problem and to achieve optimum separation between the two analytes in tablet formulation, an expensive approach which is also not suitable for routine application was developed where a C18 and cyanopropyl column were used in series .
The objective of the present work was to develop and validate a high-performance liquid chromatographic methodology for the simultaneous determination of LOR and PSE in tablets and syrups with significant retention of the compounds in a single isocratic run without the use of ion-pairing agents or micellar liquid chromatography and without interference from sodium benzoate preservative in case of syrup formulation.
Apparatus and software
The separations were performed on a Shimadzu Prominence high-performance liquid chromatography (HPLC) system consisted of degasser (Model DGU-20A5), pump (Model LC-20AD), Rheodyne manual injector fitted with 20-μL loop, variable wavelength UV–Vis detector (Model SPD-20A). The separation was carried out on a Zorbax CN column (250 mm × 4.6 mm, 5 μm). The mobile phase was pumped at a flow rate of 1.0 mL/min, and the analytes were monitored at 250 nm.
The experimental design data analysis and response surface was performed with Design Expert v. 8.1 (Stat-Ease Inc., Minneapolis, MN, USA). Other statistical analyses were carried out using Microsoft Excel 2013 software (Microsoft, USA).
Chemicals and reagents
Analytical-grade reagents ammonium acetate (BDH, Poole, England), glacial acetic acid acid (Sd fine Chem. Ltd., India), acetonitrile HPLC grade (Scharlau Chemie, Spain), and double-distilled water were used throughout the chromatographic analysis. Aqueous acetonitrile solution (75% v/v) was used as a diluent.
The reference standards of loratadine (99.5%), sodium benzoate (99.7%), and pseudoephedrine sulphate (98.8%) were used in this work.
Marketed formulations Lorinase syrup with label claim pseudoephedrine sulphate 60 mg and loratadine 5 mg per 5 mL, and Clarinase tablets labeled to contain 5 mg loratadine and 120 mg pseudoephedrine sulphate per tablet were purchased from the local market.
Preparation of standards and sample solutions
Optimization standard solution
Ten milliliters of a 100 μg/mL loratadine standard solution in acetonitrile were transferred into a 100-mL volumetric flask containing 5 mg sodium benzoate and 90 mg pseudoephedrine sulphate; the content was mixed and made to volume with the diluent.
Standards stock solution
Accurately weighed about 340 mg pseudoephedrine sulphate, 5 mg sodium benzoate, and 15 mg loratadine standards were transferred into a 25-mL volumetric flask; 10 mL of the diluent were added. The content of the flask was sonicated for 5 min and allowed to cool, and the volume was adjusted to the mark with the same diluent.
The sample density was first determined, and sample weight equivalent to 5 mL was accurately weighed into a 50-mL volumetric flask; 10 mL of the diluent were added, and the content was mixed and completed to mark with the same diluent. The sample was then filtered through 0.45-μm nylon filter and injected into the HPLC system. The concentrations of LOR and PSE were calculated from the linear regression equations of their calibration curves.
Ten tablets were finely powdered, and a portion equivalent to one tablet was suspended in 10 mL water in a 50-mL volumetric flask. The suspension was sonicated for 15 min, and the volume was completed to mark with acetoniltrile. The resulting solution was filtered through a 0.45-μm nylon filter and injected into the HPLC system. The concentrations of LOR and PSE were calculated from the linear regression equations of their calibration curves.
Aliquot volumes (1–5 mL) of the standard stock solution were transferred into a series of 25-mL volumetric flasks, and volumes were adjusted to the mark with the diluent.
Ammonium acetate buffers
The different concentrations of the buffer used were prepared by dissolving the required amount of the ammonium acetate in 500 mL distilled water. The pH of these buffers was adjusted using dilute glacial acetic acid.
The influence of the mobile phase components on chromatographic resolution between the analytes was studied using the following conditions: ionic strength (10, 15, and 20 mM), pH (3.5, 4.0, 4.5, and 5.0), and percent acetonitrile (65, 70, 75, and 80%). The experiments were carried by varying one parameter while keeping the other two constant. The resolutions between the adjacent peak pairs were calculated and plotted as a function of the experimental conditions.
Optimization of the mobile phase composition
The Box–Behnken experimental design  was used to optimize the mobile phase composition. The experiments were carried out using a series of mobile phases containing ammonium acetate buffer (10–20 mM) adjusted to pH = 3.0–5.0 and acetonitrile (74–80%),
The optimized method was validated in agreement with the ICH guidelines . The method linearity in the relevant working ranges, precision, accuracy, and specificity were evaluated. System suitability parameters were also determined.
The method’s linearity was evaluated using five standard mixtures prepared from their corresponding stock solution to obtain final concentrations of PSE in the range of 594.8–2974.0 μg/mL and LOR 24.6–123.2 μg/mL. The method of least squares was used to obtain the linearity parameters from calibration data of the analyte concentration versus their corresponding peak areas.
Six replicate determinations of the samples containing 100% of their corresponding expected concentrations in the pharmaceutical product were injected, and the method's precision was verified in its repeatability and intermediate precision aspects according to the ICH guidelines. For verification of the intermediate precision, the process was repeated on a different day using fresh reagents and samples.
The method accuracy was demonstrated using the standard addition method by evaluating analyte recoveries from a pre-assayed pharmaceutical formulation sample, containing 60% of the declared amount of the drugs, which was fortified with known amounts of the two analytes, to obtain concentration levels of 60–120% of the expected drug concentrations in the pharmaceutical dosage form.
Limits of detection LOD and quantification LOQ
In order to assess that the validated concentration ranges of the analytes were above their LOQ values, the LOD and LOQ were determined employing the ICH method based on the calibration curve .
System suitability parameters
The system suitability parameters: the column efficiencies (N), resolution between adjacent peeks (Rs), and asymmetry factor (As) were calculated from five replicate injections of the standard solution made under optimized conditions.
Method development and optimization
Preliminary investigations using the one-factor-at-a-time (OFAT) approach caused variable effects on the retention of the analytes with organic modifier content (acetonitrile) when the pH was kept at 4 and the ionic strength at 10 mM. The retention of PSE increased, while that of LOR and sodium benzoate decreased with increasing acetonitrile proportion. Pseudoephedrine retention behavior is opposed to reversed-phase retention mechanism, where solutes are retained less as the polarity of the mobile phase decreases (when increasing organic modifier content). This observation could lead to the assumption that pseudoephedrine is in fact retained by the cyanopropyl stationary phase in accordance to a normal-phase mechanism as normal-phase mechanism supposes a polar stationary phase, a nonpolar mobile phase, and a polar solute. Cyanopropyl radicals are in fact quite polar in character, however behaving in both reversed-phase and normal-phase mechanisms . Since pseudoephedrine is a hydrophilic molecule which will fully ionize at pH of 4, all these considerations support the idea of a pseudo-normal phase separation mechanism for pseudoephedrine, mainly for a higher organic modifier content in the mobile phase. With acetonitrile proportions greater than 70% v/v LOR and PSE are eluted in the opposite order with PSE being retained more than LOR; that is, the dominant mechanism is typically reversed-phase interaction.
Variation of the acetate buffer pH in the range of 3.5 to 5.0 while keeping the acetonitrile proportion at 70% v/v and the ionic strength at 10 mM did not affect the retention of the analytes or the resolution between them; with LOR being a weaker base as compared with PSE, it elutes first since it is protonated at the pH range studied, indicating reversed-phase interaction as possible mechanism for its retention.
Variation of the ionic strength in the range of 10–20 mM while keeping the pH at 4.0 and acetonitrile percentage at 70% v/v did not affect the retention of LOR and SB while the retention of PSE has increased with increasing the ionic strength. The increase of the ionic strength leads to higher retention of the polar compounds by increasing the polarity of the medium and the dissociation of compounds. This means that the acids are more negatively charged and the basic drugs are more positively charged. The basic and acidic drugs become stronger bases and acids, respectively. The net results are stronger retention for the basic drugs by electrostatic attraction and decreased retention for the acidic drugs by repulsion .
To obtain second-order predictive models, the Box–Behnken design  was employed. The optimum composition of the mobile phase was determined with series of mobile phases containing acetonitrile in the range of (74–80% v/v), ammonium acetate buffer (10–20 mM) with its pH being varied between 3 and 5. The resolutions between the adjacent peak pairs were considered as the responses for the optimization purpose. The criteria for optimization of each response are given in Table 1.
The resolution between SB and LOR peak pair was kept as 4.0 to ensure sufficient resolution of the preservative peak in the sample from LOR peak; the resolution between LOR and PSE pair was kept as 5.0 to ensure sufficient resolution between the peak pair and reasonable analysis time. Importance of 3.0 was considered in both cases; as from the preliminary studies, there is no critical resolution between the analyte pairs to warrant considering more importance value.
The relation between the investigated factors and selected responses was established using multiple linear regressions and the least-squares method of approximation. The obtained models were then reduced by backward elimination, omitting the insignificant factors (those having P values > 0.05). The newly obtained equations in terms of coded factor values were as follows:
where Y1 = resolution between SB and LOR and Log10 (Y2) = log base 10 of resolution between LOR and PSE. It is important to notice that the best fit model equation for the resolution between LOR and PSE was possible after log base 10 transformations of the responses.
Since two responses (resolution between two peak pairs) at the same time, Derringer’s desirability function was used . The design space generated through the desirability function is portrayed in Fig. 2 indicating high method performance owing to maximum desirability value (equal to 1); accordingly, it was possible to conclude that there was a set of coordinates producing high desirability (D = 1.0). These were pH of 4.5, acetonitrile content of 77%, and ionic strength of 16.0 mM. The predicted response values corresponding to the latter value of D were Y1 = 4.0 and Y2 = 5.6.
The calibration curves correlation coefficients were higher than 0.99, the confidence intervals of the intercepts contained the zero, and the residuals were spread uniformly and at random around the regression lines, passing the normality distribution test (P < 0.05) confirming method linearity. The regression parameters of the method are shown in Table 2.
Limits of detection (LOD) and quantification (LOQ)
The LOD values were 2.92 μg/mL and 67.68 μg/mL with their corresponding LOQ values of 8.86 μg/mL and 205.09 μg/mL for LOR and PSE, respectively as shown in Table 2. The values were calculated according to the ICH method using the regression data .
Low percent relative standard deviation (%RSD) (< 2%) values were obtained for the two analytes in repeatability and intermediate precision studies. The overall %RSD of the assays calculated using the data from the two-day analysis (12 samples) was also < 2%, and the difference between the individual assay results was less than < 2% (Table 3). This evidenced that the outcome of the determination was statistically similar regardless the day of the assay and reagent preparation in the determination.
The suitability of method for accurate determination of the analytes was confirmed by the low %RSD values (< 2%) with < 2% variation between the individual samples as shown in Table 3.
System suitability parameters
The method performance parameters, the column efficiencies (N), resolutions between adjacent peak pairs (Rs), and asymmetry factor (As) are listed in Table 4.
Analysis of commercial formulations
The results of analysis of commercial formulations were found to be satisfactory as per label claim with standard deviation values below 2% (Table 3). This method also offers the possibility of quantitative determination of sodium benzoate in syrup formulation since it is completely resolved from the loratadine peak eluting next to it.
The use of cyanopropyl column offered an efficient alternative method that overcome the elution problems encountered when conventional reversed-phase chromatographic methods were used [3, 5]; moreover, the developed method is simple and easy to use for routine analysis of the two analytes when presented in combined dosage forms upon comparison with method reported by Abu-Lathou et al. .
The results of one-factor-at-a-time (OFAT) studies suggested that optimum separation of the three compounds (LOR, PSE, and SB) is possible when the ionic strength is in the range of 10–20 mM and pH range 3.0–5.0, and acetonitrile is more than 70% v/v. Based on these results, it has been decided to use multivariate response surface methodology approach for the separation process optimization. The Box–Behnken design was chosen because it is economical, rotatable, or semi-rotatable .
The statistical model parameters obtained from ANOVA of two responses after backward elimination are reported in Table 5. Since the prediction regression coefficient (R2) and adjusted regression coefficient (R2 adjusted) values for the two models were in close agreement, and the adequacy of precisions were > 4, these model can be used to navigate the design space . The design space generated through Derringer’s desirability function was portrayed in Fig. 2, indicating high method performance owing to maximum desirability value (equal to 1); accordingly, it was possible to conclude that there was a set of coordinates producing high desirability (D = 1.0). These were pH of 4.5, acetonitrile content of 77% v/v and ionic strength of 16.0 mM. The predicted response values corresponding to the latter value of D were Y1 = 4.0 and Y2 = 5.6.
The predictability of the proposed model was further confirmed by the good agreement between the experimental and predicted responses, as shown in Table 6.
The good separation between the analytes confirms the prediction efficiency of the model; the corresponding chromatograms of the optimization mixture, standard, syrup, and tablets are shown in Figs. 3a–d, respectively.
The values of LOQ of the analytes were below the lowest expected analyte concentrations in the samples; hence, determination of the two analytes with high precision and accuracy is possible at concentrations above their reported LOQ values.
The good agreements between the practically obtained system suitability parameters and the theoretically required ones confirm the method suitability .
The use of experimental designs approach enabled rational and reliable method optimization. The use of cyanopropyl column and the very simple, relatively cheap, and easy-to-prepare mobile phase enabled separation of the active principles and preservative within less than 6 min, despite their widely different properties. It was also possible to achieve their quantification in spite of the great concentration difference between the analytes (PSE: LOR up to 24:1, w/w). In addition it was proved that the method is sensitive, precise, and accurate, with regards to the mixture under investigation. The method can be confidently applied to the quality control of the two active ingredients even when sodium benzoate is present as a preservative in syrup formulations.
