Valsartan in combination with metformin and gliclazide in diabetic rat model using developed RP-HPLC method

Abstract

Background

Oral administration of biguanides (metformin) and sulfonylureas (gliclazide) are the most common approach of management of type 2 diabetes in humans. Among these diabetic patients, approximately 40–60% suffers from hypertension. Hence, the need of the day is application of polytherapy. A major challenge in polytherapy is the drug-drug interactions that may arise. Hence, this study is focused to develop a reverse phase high-performance liquid chromatography (RP-HPLC) method for concurrent estimation of diabetic drug metformin and hypertension drug valsartan using C18 column and find any possible pharmacokinetic interactions between the two drug combinations strategies, i.e., metformin-valsartan and gliclazide-valsartan in streptozotocin-induced diabetic rats.

Result

The bioanalysis of drug-drug interaction pharmacokinetic result showed no significant difference in the t_max of single treatment of gliclazide and single treatment of metformin or upon co-administration with valsartan.

Conclusion

Our study has shown that polytherapy of valsartan, a drug administered for hypertension along with hypoglycemic drugs metformin and gliclazide, can be advantageous and safe in patients suffering from both diabetes and hypertension.

Background

Diabetes has become a growing epidemic, and the percentage of patient population is increasing in leaps and bounds [1]. It is a chronic condition of metabolic disorder featured by elevated glucose level in blood circulation [2]. This is due to the improper alteration in regulation of protein, carbohydrate, and lipid metabolism [3], due to reduction in glucose uptake by skeletal muscle cells and uncontrolled hepatic glucose output. Based on insulin secretion, diabetes can be classified under two major categories: types 1 and 2, where type 1 is insulin dependent, whereas type 2 is non-insulin dependent [4]. The concern among diabetic patients is the multi organ damage that happens in course of the disease if left undetected or untreated. Such patients require polytherapy wherein drug-drug interactions may lead to adverse side effects [5, 6]. Besides mortality, the therapeutic effect of either drug may lower or enhance or may execute new activity which was not observed in earlier therapeutic studies [7].

Metformin, the first known line of therapy for type 2 diabetes, acts by reducing the rate of gluconeogenesis and enhances sensitivity of insulin [8], reducing free fatty acids (FFA) through adipose tissue inhibition [9]. It also showed therapeutic effect on obesity metabolic disorder [10]. Women, who suffer from polycystic ovary syndrome (PCOS), sometimes rely on this drug for ovulation and regular menstrual cycle [11, 12]. The chemical structure of metformin is shown in Fig. 1. Apart from metformin, another drug, i.e., a sulfonylurea, gliclazide is frequently prescribed to control type 2 diabetes. Gliclazide is known to shield pancreatic beta cell apoptosis induced due to hyperglycemia [13,14,15] and its therapeutic effect on plaque formation in arteries, thereby reducing atherogenesis in hyperglycemic patients [16].

Fig. 1

Structure of metformin

The prevalence of hypertension among diabetic patients is very high, accounting to 75% of coexistence [17]. Valsartan, an angiotensin II receptor blocker, is the common treatment option for hypertension [18]. The chemical structure of valsartan is shown in Fig. 2. Since these patients are subjected to polytherapy, there arise possibilities of occurrences of interactions between valsartan-metformin and valsartan-gliclazide. Hence, our study is aimed to look for possible drug interaction effect of antihypertensive drug valsartan along with metformin. Hence, RP-HPLC method is developed, which can be applied for routine laboratory analysis, forced degradation studies, and pharmacokinetic studies (as well as in laboratory analysis, forced degradation studies). In our previous study, we had developed a method (RP-HPLC) for concurrent estimation of gliclazide and valsartan [19].

Fig. 2

Structure of valsartan

Clinical studies illuminating drug-drug interaction is an important parameter for polytherapy. Various studies have thrown light on drug-drug interactions of which one of the studies has shown reduced hypoglycemic effect of gliclazide upon prolonged co-administration with anti-hypertensive drug lisinopril [20, 21]. An in vivo study in diabetic rat and rabbit revealed synergistic effect of gliclazide upon co-administration with anti-hyperlipidemic drug pravastatin [22]. Another study by Patel and Kothari revealed no drug-drug interaction between pitavastatin (cholesterol-lowering drug) and candesartan (anti-hypertensive drug) [23]. In this study, we have focused on the effects of valsartan with either gliclazide or metformin by concomitant administration in diabetic rats.

Materials

Ethical approval

All experimental procedures and protocols used in the animal study were reviewed and approved by the Institutional Animal Ethical Committee (IAEC/1657/CMRCP/T2/PH), Vijaya College of Pharmacy, Hyderabad, Telangana, India.

Torrent Pharmaceutical Ltd., Ahmedabad, supplied valsartan, gliclazide, and metformin. The working standard was kindly provided by Lupin Pharma, India. All other reagents were procured from E. Merck, (India) Ltd., and are HPLC grade. The D-glucose GOD-POD colorimetric assay kit was supplied by Excel Diagnostic Center, Hyderabad. Streptozotocin was obtained from Sigma.

Methods

Parameters of chromatography

The HPLC from Waters Company was integrated with XTerra® C18 column of 5 μm (with features 4.6X250 mm) for separation. Mobile phase was fixed to mixture of phosphate buffer and methanol in 60:40 ratio, and the rate of flow was 1 mL.min⁻¹. The filtration of the mobile phase was performed by using a 0.2-μm membrane filter. Chromatographic procedure was performed at RT.

Preparation of standard solutions

To prepare standards, metformin and valsartan were each weighed 100 mg and added into 10 mL of a solvent which is a mixture of phosphate buffer and methanol in 60:40 ratio. By adding another 15 mL of phosphate buffer and methanol solution, the final volume was made up to 25 mL. The stock solution was subjected to sonication for 15 min, and by mixing 75 mL of diluent, the volume was made up to 100 mL to achieve a 1 mg/mL stock solution. Standard stock solution was diluted to achieve 2 to 20 μg.ml⁻¹ as final concentration for valsartan, whereas metformin final concentration was set to 3.12 to 100 μg.ml⁻¹.

Validation of the method

The following RP-HPLC parameters were validated as per ICH guidelines [24].

Linearity

The standard (metformin and valsartan) stock solutions were diluted with mobile phase. The final concentration of valsartan was in the range of 2 to 20 μg.ml⁻¹ whereas the final concentration of metformin was 3 to 100 μg.ml⁻¹. A volume of 20 μL was injected into C18 column. The calibration graph was achieved by peak area on Y-axis versus concentration of valsartan and metformin on X-axis.

Accuracy

Accuracy was validated in triplicate by addition of three different amounts of valsartan and metformin to previously analyzed samples. The quantities of analytes recovered were compared with the quantities of drugs injected. The quantities added were equivalent to 50, 100, and 150% of the amount originally presented.

Precision

To evaluate precision, 6 tests of both the drugs of 10 and 30 μg.ml⁻¹ were injected into the column. This procedure was performed on a single day (which is also called intraday precision) as well as on three different days (which is also called intermediate precision).

Limit of detection and quantitation

The minimum concentrations of each drug which was able to produce LOD was minimum S/N of 3. The minimum quantity of each drug was quantified by this method is called LOQ.

Method applicability and system suitability

The devised method was validated by applying pharmaceutical dosage forms for the estimation of valsartan and metformin, to evaluate the system suitability. The analytical procedure of the system was carried out by performing system suitability tests. Various parameters were evaluated such as theoretical plate number (N), tailing factor, retention time, resolution, area, and % peak area were analyzed. Twenty microliters of the working standard solution of valsartan (10 μg.ml⁻¹) and metformin (25 μg.ml⁻¹) was injected into the column for 6 times.

Analyzed method specificity

It was monitored to achieve clear peaks for both the drugs avoiding interference (from drug impurities or solvents) by the proposed method.

Robustness

To execute the robustness of designed method, analyzed standard concentrations (n = 6), i.e., 10 μg/mL of valsartan and 30 μg/mL of metformin, were done using two different columns of the same make.

Pharmacokinetic study

Male Wistar rats were obtained from Vab Bioscience, Hyderabad, India, with the approval of Committee for the Purpose of Control and Supervision of Experiments (282/PO/RcBt/2000/CPCSEA). Starved (12 h) animals (male Wistar rats) were induced with diabetes by injecting freshly prepared streptozotocin of 0.220 to 0.250 mL (60.0 mg streptozotocin dissolved in 1 mL of 0.010 M Citrate buffer, pH 4.5) intraperitoneally amounting to dose of 60 mg.kg⁻¹ as the final one. The animals were handled as per the approved protocol of Institutional Animal Ethical Committee. Prior to the induction of diabetes, animals were placed in optimum conditions with atmospheric humidity of 50.0% and supplemented with pellet diet and water ad libitum. The hyperglycemic condition was assessed by measuring the concentration of glucose in non-fasting serum post 48 h of induction. Total of six groups were made, i.e., four groups of individual treatment of gliclazide, metformin and valsartan (to diabetic as well as healthy rats). To the remaining groups, combination treatment is given, i.e., gliclazide and valsartan, and metformin and valsartan were administered to diabetic rats. Plasma sample segregates from blood were obtained at different time intervals (zero (0), 1, 2, 4, 6, 8, till 24 h) post drug administration.

The plasma samples were processed for HPLC analysis. All the samples were evaluated using reverse phase HPLC method developed by us. Phenformin (10 μL of 40 μg/mL) was used as an internal standard. Twenty microliter of supernatant was injected into C18 column to estimate gliclazide and valsartan individually and together. The chromatographic conditions were set with mobile phase acetonitrile (45:55); phosphate buffer pH was set at 4.80, and pressure was set at 190 to 210 kg.f/cm³; flow rate was set at one mL.min⁻¹; procedure was performed at room temperature; and UV detector wavelength was set at 234 nm [19]. To estimate metformin and valsartan in rat plasma simultaneously, the chromatographic conditions such as mobile phase was set at phosphate buffer (pH 4), acetonitrile 60:40 v/v respectively; pressure was set at 190 to 210 kg.f/cm³; flow rate was set at 1 mL.min⁻¹; procedure was performed at RT; UV detector was set at wavelength of 238 nm; and injection volume was 20 μL. Various concentrations such as 0.050, 0.10, 0.50, 1.0, 5.0, 10.0, 20.0, and 40.0 μg.ml⁻¹ of metformin, gliclazide and valsartan were prepared using rat plasma for standard calibration curve. The peak area of all three drugs (metformin, gliclazide, and valsartan) was recorded for further analysis. Animals were sacrificed by deep burial, following cervical dislocation.

Statistical analysis

For analysis, the Win Nonlin® 5.1 software was used. The pharmacokinetic units such as highest plasma concentrations achieved (C_max), t_max denotes time for achievement of maximum concentration, the area under the curve is represented by AUC, and t½ represents elimination half-life, whereas AUC_0-t denotes the area the under the curve between time 0 to 24 h, while AUC_0-α represents the area under the curve from time at 0 h to infinity. Pharmacokinetic and pharmacodynamic statistical comparisons between individual and in combination of anti-diabetic drugs, which were used in this study, i.e., metformin and gliclazide and antihypertensive drug valsartan, were evaluated using students paired t test. Statistical significance was considered to be P < 0.05. Mean ± S.E.M was determined to decipher the relationship between total plasma concentrations and pharmacokinetic and pharmacodynamic parameters.

Results

Method development and validation

The developed method is robust for the simultaneous evaluation of both metformin and valsartan. For optimization of chromatographic conditions, buffering systems of various combinations were tested such as acetonitrile-methanol, methanol-water, and acetonitrile-water. The other parameters were also taken into consideration for optimization such as detection wavelength, flow rate, volume of injection, and temperature. At wavelength of 238 nm, both valsartan and metformin analytes were found to be free from interferences and the peaks were well defined. Typical chromatograms of metformin and valsartan are shown in Fig. 3.

Fig. 3

Typical chromatogram of valsartan and metformin was obtained by injecting 20 μL of each drug solution with flow rate 1 mL per minute performed with UV detector at 238 nm.

System suitability

The system suitability pertaining to the proposed method was performed by applying 6 injections (metformin of 30 μg.ml⁻¹ and valsartan of 10 μg.ml⁻¹). %Coefficient of variation (CV) of 1.688 and 1.450 was observed for valsartan and metformin respectively. Data is shown in Table 1.

Table 1 System suitability: metformin-valsartan

Linearity

The linearity of valsartan and metformin API were calculated by plotting calibration curve keeping peak of area on Y-axis against respective concentrations on X-axis which was found to be in the linearity range between 2 and 20 μg.ml⁻¹ for valsartan, whereas the linearity for metformin was observed between 3 to 100 μg.ml⁻¹ for metformin (Fig. 4a, b). The respective linear regression equation was recorded as y = 1582x + 408.85 for valsartan, whereas y = 184.2x + 322.40 for metformin. Other parameters such as intercept, %RSD, and slope were calculated for the study which is presented in Table 2.

Fig. 4

a Calibration curve of valsartan. b Calibration curve of metformin.

Table 2 System suitability: valsartan-metformin

Accuracy

Accuracy is the recovery of each drug (valsartan and metformin) analytes at 80%, 100%, and 120% of mentioned concentrations which were found to be on an average 97.03% for valsartan and 105.75% for metformin. The recovery values obtained for both valsartan and metformin are in the acceptable range of 90 to 110 % as per the reports available in literature [25]. It is worthy to note that the recovery values obtained in this study are also similar to the ones reported by us earlier for the RP-HPLC method development of valsartan and gliclazide [19]. The data is shown in Table 3.

Table 3 Accuracy: valsartan-metformin

Precision

Value of 0.38 and 0.65 % RSD was achieved for valsartan and metformin respectively in the intraday experiment (Table 4). Value of 0.306 and 0.466% of relative standard deviation observed for valsartan and metformin respectively in inter-day experiments (Table 5).

Table 4 Method precision: metformin-valsartan

Table 5 Intermediate precision of valsartan and metformin

LOQ and LOD

Value of 0.329–0.999 μg.ml⁻¹ was observed as LOD and LOQ for valsartan, and value of 0.008–0.027 μg.ml⁻¹ was observed as LOD and LOQ for metformin. The data thus obtained proved the sensitivity of the method. Broad range of concentrations of analytes of valsartan and metformin can be estimated using the developed method. The data is presented in Table 2.

Specificity and robustness

During the RP-HPLC run of valsartan and metformin API, no additional or extra peaks were found. Hence, there was no interference from any other reagents used in the procedure. The mean (n = 6) percentage of coefficient of variation of robustness for valsartan was 1.17 whereas, for metformin, it was 1.64 using column 1. Using column 2, the values were 1.36 and 1.58 for metformin and valsartan. The data pertaining to this is presented in Table 6.

Table 6 Robustness: metformin-valsartan

Pharmacokinetic study

Effect of valsartan on metformin bioavailability

The experiment was executed to estimate the possible effect of valsartan on metformin bioavailability, when administered simultaneously. We found that, on day 1, the C_max was 25.74 ± 0.39 μg/mL and 26.93 ± 0.12 μg/mL for metformin treatment and combinations of metformin and valsartan post 2 h (t_max) administration respectively. On day 8, the maximum plasma concentration was observed as 32.919 ± 0.220 μg.ml⁻¹ and 32.610 ± 0.099 μg.ml⁻¹ for metformin and in the mixture of metformin and valsartan post 2 h (t_max) administration respectively. On both day 1 and day 8, the C_max and t_max values for both conditions showed no change between administration of metformin alone and in combination of metformin-valsartan. Similarly, no significant differences were observed with other measurements such as AUC _(0-24h) and t_1/2. Comparison graphs are shown in Fig. 5 for day 1 and day 8 respectively.

Fig. 5

Drug-drug interaction profile of metformin and valsartan (n = 6). Mean plasma concentrations (μg.ml⁻¹)

Effect of valsartan on gliclazide bioavailability

Upon simultaneous administration, it was observed that on day 1, the C_max was 11.54 ± 2.14 μg.ml⁻¹ and 18.329 ± 0.12 μg.ml⁻¹ for gliclazide only and combinations of gliclazide and valsartan post 2 h (t_max) administration respectively whereas, on day 8, plasma concentration was found to be 25.829 μg.ml⁻¹ which was recorded maximum and 26.93 μg/mL for treatment like gliclazide and gliclazide-valsartan at 2 h administration respectively. The maximum plasma concentration values for both conditions revealed no significant difference between administration of gliclazide and gliclazide-valsartan doses. The comparison graphs are shown in Fig. 6.

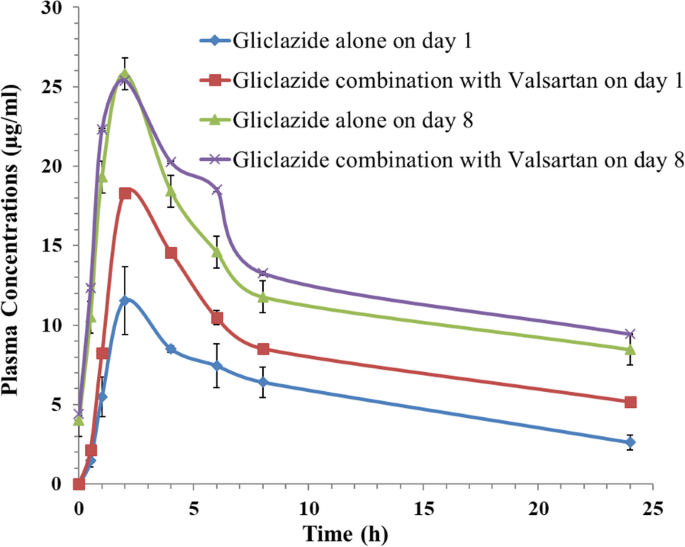

Fig. 6

Drug-drug interaction profile of gliclazide and valsartan (n = 6). Mean plasma concentrations (μg.ml⁻¹)

Discussion

In this study, we have focused on the effects of valsartan and gliclazide by concomitant administration in diabetic rats, as diabetes and hypertension majorly exist in elder subjects [26]. The results of our study revealed that valsartan has no effect on gliclazide during concomitant administration. An in vivo study in diabetic rat and rabbit revealed synergistic effect of gliclazide upon co-administration with pravastatin which is an anti-hyperlipidemic drug [22]. In addition to it, while studying the pharmacokinetic interaction between metformin-valsartan and gliclazide-valsartan, we simultaneously evaluated the effect of valsartan in healthy rats. The bioavailability of valsartan was found to be C_max of 3.919 ± 0.030 μg.ml⁻¹ and 2.720 ± 0.030 μg.ml⁻¹ in diabetic and healthy rats respectively at 2 h on day 1. Similar results were observed on day 8. The data is presented in supplementary Fig. 1. We found that the bioavailability of valsartan did not affect metformin or gliclazide combinational treatment in hyperglycemic rats with approximately C_max of 3–4 μg.ml⁻¹ at 2 h on both day 1 and day 8. The data is shown in supplementary Fig. 2 and Fig. 3. The elimination half-life, i.e., t_1/2 of metformin, is 5 h [27]. Drug-drug interaction of metformin with cefepime (cephalosporin, an antibiotic drug) in diabetic rat revealed reduced hypoglycemic effect of metformin [28].

No drug-drug interaction between metformin-valsartan and gliclazide-valsartan was further confirmed by comparing the blood glucose level and found 52.36% and 64% reduction of glucose level from gliclazide and valsartan samples treated for 4 h. Individual treatment with gliclazide showed around 54% and 62% of glucose level reduction on day 1 and day 8 respectively (data is presented in supplementary Fig. 4). Likewise reduction in glucose level was observed at 51% and 48% from combinational treatment of metformin and valsartan on the 1st day and on 8th day respectively, whereas individual treatment on same conditions showed glucose level reduction of 55% and 54% on the 1st day and on 8th day respectively (data is presented in supplementary Fig. 5).

Conclusion

In this study, the RP-HPLC method developed and validated is robust for estimation of metformin and valsartan concurrently. Shorter run times and cost effectiveness are the advantages of the developed method. When samples are to be analyzed in bulk, the above-mentioned features are important for any RP-HPLC method. No interference of any other reagents used in this procedure confirmed from the peaks of the chromatogram. We were able to analyze the plasma samples collected during pharmacokinetic study and showed that the dosage of gliclazide, metformin, and their combinational treatment with valsartan in diabetic rats did not display any drug-drug interactions in its pharmacokinetic parameters that are statistically significant. Hence, it can be concluded that polytherapy of valsartan with hypoglycemic drugs metformin and gliclazide can be advantageous and safe in patients suffering from both diabetes and hypertension.
