Validated high-performance thin-layer chromatographic analysis of curcumin in the methanolic fraction of Curcuma longa L. rhizomes

Abstract

Background

In the present study, an HPTLC (high-performance thin-layer chromatography) method was developed for the quantitative determination and validation of the curcumin in the methanolic fraction of Curcuma longa L. For achieving good separation of curcumin, the mobile phase of chloroform:methanol (97:3) was used. The densitometric analysis of curcumin was performed at 420 nm in reflection/absorption mode.

Results

Linearity of the method was obtained in the range of 100‒600 ng per spot. During analysis, the methanolic fraction of the C. longa showed the presence of a quantifiable amount of curcumin. The content of curcumin was found to be 1.5% (per dry weight).

Conclusions

The method is specific, simple, precise, and accurate. The obtained data can have used for the routine analysis of the reported biomarkers in crude drugs and extracts. The quantification and the method validation of curcumin have not yet been reported in C. longa which can be utilized for the proper standardization of the plant.

Background

Curcuma longa L. (Zingiberaceae) is a rhizomatous perennial herb. It is a medicinally important plant commercially known as Haldi, Turmeric, or Indian saffron. It has a long history of traditional uses ranging from folk medicine to various culinary preparations. The paste of C. longa rhizome is commonly used traditionally in the treatment of asthma, leucoderma, tumor, piles [1]. In the Indian system of medicine, it is well reported as an anti-inflammatory and skin protective agent [2]. C. longa is the potential source of many secondary metabolites namely curcuminoids, curcumin, demethoxycurcumin, bisdemethoxycurcumin, turmerone, atlantone, and zingiberone, sesquiterpenoids, sugars, resins, proteins, vitamins, and minerals.

Curcumin is the major active constituent of C. longa. Structurally, Curcumin is 1,7-bis(4-hydroxy-3-methoxyphenyl)-1,6-heptadiene-3,5-dione (Fig. 1). It is a natural polyphenol procured from the rhizomes of C. longa [3]. It is a bright yellow-orange colored powder. Curcumin exhibits various pharmacological activities including antioxidant, anti-inflammatory, anticarcinogenic, hypocholesterolemic, wound healing, antispasmodic, anticoagulant, antitumor, and hepatoprotective activities [2]. Curcumin is included in various herbal remedies to treat skin inflammation and its infection. It is therapeutically used for the treatment of amenorrhea, dislocation of joints, diarrhea, diabetes, liver disorder, bronchitis, ringworm infection, toothache, anemia, and weakness of eyesight [1, 4, 5].

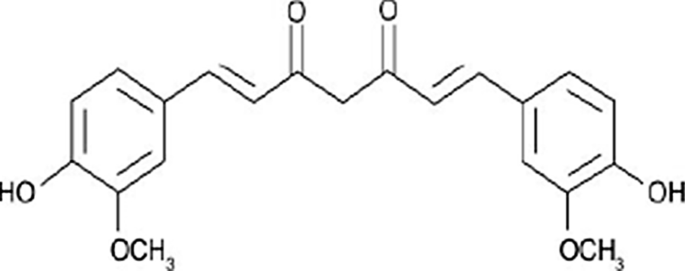

Fig. 1
figure 1

Structure of curcumin

The variation in the content of phytoconstituents in herbal extract presents a major challenge to control the quality of herbal products. To assess the safety and efficacy of plant material, qualitative and quantitative analyses are useful techniques which mostly related to the content of marker compounds present in the plant [6, 7]. Curcumin, the principal active constituent largely responsible for the therapeutic efficacy of C. longa, is recognized as the marker compound [2].

In recent years, the advancement of chromatographic and spectral fingerprints plays an important role in the quality control of herbal medicines [5]. Chromatographic fingerprint investigation has been demonstrated to be a realistic and practical method for quality assessment and authentication of various herbal medicines. This method can be used to identify the presence or absence of markers as well as the ratio of all detectable compounds [6]. Although several methods for the quantification of curcumin were reported by various researchers including supramolecular solvent-based liquid–liquid microextraction (SMS-LLME) [7], isocratic high-performance liquid chromatography (HPLC) [8, 9], ultra-performance liquid chromatography–mass spectrometry (UPLC-MS) [10], and reversed-phase liquid chromatography (RPLC) [11]. However, HPTLC has become a routine analytical technique due to its advantages [5, 12, 13]. The TLC chromatogram pattern comparison seems to be promising for fingerprinting the active compounds in plant extracts. HPTLC has been known as the fast tool for the detection of compounds [6]. Analytical quantification of chemical markers through HPTLC has the advantage of combining chromatographic separation on a silica layer, along with in situ densitometric quantification of the separated compounds [13]. This results in an efficient, quick, accurate, and relatively inexpensive method for the quantification of separated phytoconstituents [14], thus eliminating the possible interference given by other structurally related compounds. HPTLC method provides many other benefits such as rapid analysis time, i.e., many samples can be analyzed simultaneously, low solvent usage on a per-sample basis, low operating cost, high sample throughput, and the need for minimum sample clean-up. It can detect more compounds than HPLC, although the resolution is poorer [5, 6, 13]. Additionally, the compounds having no UV absorption can be detected by reagent spraying. Utilizing a data analysis system and optimized experimental conditions, HPTLC is also feasible for the development of chromatographic fingerprint methods to determine and identify complex herbal extracts just like HPLC and GC. The compounds which cannot be eluted still can be detected. Furthermore, the colorful picture, like the HPTLC image, provides extra-intuitive parameters of visible color and/or fluorescence. Moreover, the colorful pattern and quantification at the micron and nanogram levels help to differentiate various samples on the same plate [12,13,14].

Comparing to the GC and HPLC, the HPTLC method has few restrictions, such as a low plate efficiency and narrow developing distance. Despite that, it remains a valuable tool for quality assessment of natural products due to its ease, low cost, and few requirements, and it has been profitably utilized to develop a chromatographic fingerprint for various natural products, herbal drugs, and commercial herbal formulations [5, 6]. However, with the advancement in analytical techniques, a smartphone-enabled alternative of TLC densitometric scanning was developed which is economic, precise, and accurate to serve the purpose. Such techniques are especially effective in low-income countries and the methods developed with traditional HPTLC can easily be reciprocated to Smartphone-based image analysis [15, 16]. But this method requires technical experience.

Looking into the benefits, in the present work, a densitometric HPTLC method has been developed and validated according to International Conference on Harmonization (ICH) guidelines for the quantitation of curcumin from methanolic extract C. longa.

Methods

Chemicals and reagents

Curcumin was purchased from Sigma-Aldrich (Steinheim, Germany). HPTLC plates (20 cm × 10 cm, precoated silica gel aluminum plates 60 F254 (0.25 mm) were procured from E. Merck (Darmstadt, Germany). Methanol and chloroform were obtained from Merk (Mumbai, India). All other ingredients were of analytical grade. Double-distilled water (DDW) was used for all experiments.

Plant material

The plant materials, i.e., rhizome parts of C. longa, were collected from Lucknow, India (Fig. 2).

Fig. 2
figure 2

Fresh rhizomes of Curcuma longa L

Standard preparation

Stock solutions of curcumin were prepared by dissolving 0.1 mg mL−1 of curcumin in the methanol.

Sample preparation

The rhizome parts of C. longa were collected, thoroughly washed with the water to remove all the debris. The plant materials were shade-dried and coarsely powdered using an electric grinder at 60 mesh size. Powdered materials were defatted using 98% petroleum ether to remove the fatty materials/impurities. Defatted materials were extracted by the hot continuous extraction (soxhlation) method. Soxhlation was done for 9 h using 250 mL chloroform, followed by the methanol. The obtained methanolic fraction was passed through the filter paper (Whatman No.1). The filtrate was concentrated under vacuum in the rotary evaporator at 40 °C and stored at 4 °C for further use. The dried extracts were dissolved in 98% methanol to obtain the stock solution of 10 mg/mL for the application of spots on HPTLC plates.

Development of HPTLC fingerprinting of curcumin

Instrumentation and chromatographic conditions

The instruments and chromatographic conditions used are as follows:

  • HPTLC chamber: Glass twin-trough chamber (20 × 10 × 4 cm) CAMAG.

  • Densitometer: HPTLC Scanner 3 linked to win CATS software V. 4.06 CAMAG.

  • Spotting device: Linomat V automatic sample applicator CAMAG (Muttenz, Switzerland).

  • HPTLC plates: 20 × 10 cm, 0.2 mm thickness precoated with the silica gel 60 F254 (E-Merck).

  • Band size: 6 mm;

  • Slit dimension: 5.00 × 0.45 mm.

  • Syringe: 100 μL Hamilton (Bonaduz, Switzerland).

  • Scanning speed: 10 mm s−1

  • Radiation source: deuterium lamp.

  • Sample volume: 10 µL

  • Experimental conditions: temperature, 25 ± 2 °C; relative humidity, 40%.

  • Solvent system: chloroform: methanol (97:3V/V).

  • Detection wavelength: 420 nm.

Calibration curve of curcumin

A stock solution of curcumin (100 μg mL−1) was prepared in the HPLC grade methanol. The stock solution in different volumes was spotted on the HPTLC plate to achieve the concentrations of 100–600 ng per band of curcumin. Quantification was carried out by plotting data of peak areas against corresponding concentrations of the standard marker using regression analysis.

Method validation

Method validation was carried out to assess the suitability of the analytical method employed for its intended use. The developed method was validated in terms of linearity, precision, accuracy, limits of detection (LOD), limits of quantification (LOQ), and recovery as per the ICH guidelines [17, 18].

Specificity

The specificity of the method was determined by analyzing the band of curcumin and extract. The band of curcumin in samples was confirmed by the comparisons of the retention factor (Rf) values and spectra of the band with standards. The peak purity of curcumin was confirmed by the comparing of the spectrum at peak initiation (S), peak apex (M), and peak-end (E) positions of bands.

Robustness of the method

The robustness of the method was analyzed after introducing small modifications in the chromatographic conditions such as duration of mobile phase saturation, mobile phase composition, mobile phase volume, and activation of prewashed HPTLC plates with the methanol. Analysis was performed in triplicate at the concentration level of 200 ng per band for curcumin. The relative standard deviation (RSD) and standard deviation (SD) of peak areas were calculated to assess the robustness of the method.

Limits of detection (LOD) and limits of quantification (LOQ)

For the determination of the limit of detection (LOD) and limit of quantification (LOQ), different dilutions of known concentration of curcumin were spotted along with blank methanol for the six times and signal-to-noise (S/N) ratio was determined. A standard sample at the concentration level of 200 ng per band was prepared and analyzed on day 0 and after 6, 12, 24, 48, and 72 h. LOD was estimated at an S/N of 3:1 and LOQ at 10:1. Results of the analysis were treated for % RSD to assess the ruggedness of the method.

Accuracy

The accuracy of the method was assessed by measuring the recovery of the curcumin at different concentration levels in the extract. Experimentally, the pre-analyzed samples were spiked at three different levels, i.e., 50, 100, and 150% of the standard curcumin. The experiment was conducted six times and % recovery and average % recovery of curcumin was calculated.

Repeatability

Repeatability of the sample application and peak area measurement was conducted at concentration levels of 200, 400, and 600 ng per band of curcumin using nine determinants (3 concentrations /3 replicates). Repeatability reflects the reproducibility of the method for the quantification of the targeted analyte.

Precision

Intra- and inter-day precision analyses were performed at three different concentration levels viz 200, 400, and 600 ng per band. For intra-day precision samples were scanned three times a day. For inter-day precision analysis, samples were analyzed for five consecutive days. Results of the precision analysis were expressed in terms of mean relative standard deviation (RSD) (%).

Results

High-performance thin-layer chromatographic method optimization

To provide an accurate, precise, and reproducible method for the determination of curcumin, HPTLC conditions were optimized in terms of selection of mobile phase, absorption maxima, and slit dimensions. Solvent systems in different combinations were tried. The absorption spectrum of curcumin was obtained at 420 nm (Fig. 3).

Fig. 3
figure 3

UV spectrum of curcumin

High-performance thin-layer chromatographic method validation

HPTLC profile (Fig. 4) with chromatogram was obtained for the standard compound, and the plant extract and targeted compound from the targeted plant was identified by the Rf and the peak purity. The linearity of the method for the quantification of curcumin was obtained at the concentration of 100–600 ng/spot with a statistically, acceptable regression coefficient (r2) of 0.9998. Other statistical parameters of the regression are found to be within the limit of acceptance as summarized in Table 1, which confirms the linearity of the developed method.

Fig. 4
figure 4

HPTLC profiling of C. longa methanolic fraction with curcumin

Table 1 Statistical parameter for linearity validation of curcumin

Specificity of the developed method indicates the clear and complete separation of marker(s), i.e., curcumin peak (Fig. 5). The % RSD values of 0.31 in the intra-day analysis and 1.48 in inter-day analysis (Table 2). The recovery of curcumin in C. longa extract was found in the range of 97.48% to 98.15% (Table 3). The % RSD value was found to be less than 5% which confirms the robustness of the method. The concentration of curcumin in the methanolic fraction of C. longa is represented in Table 4.

Fig. 5
figure 5

HPTLC chromatograms of C. longa methanolic fraction with Curcumin

Table 2 Intra -day and Inter-day precision
Table 3 Recovery analysis of curcumin
Table 4 Quantification of curcumin in the methanolic fraction of C. longa

Discussion

Curcumin is an important secondary metabolite obtained from C. longa [2]. To identify and quantify concentration in specific plant species under investigation, accurate analytical methods with broad applicability were developed and validated in the current study. Among various mobile phases tried, the mobile phase consisting of chloroform/methanol (97:3 V/V) demonstrated the best resolution between other peaks of the extract [13, 14].

The procedure for separation and the determination of various biomarkers in the methanolic fraction of C. longa using HPTLC-densitometry is reported at the six-point calibration curve in which curcumin was quantified with the method validation. The validation of the method was based on criteria of linearity, repeatability, selectivity, LOD, LOQ, robustness, and recovery. Inter-day analysis showed SD are within the limits of the ICH guidelines and indicates that the method is precise and reproducible for quantification of targeted metabolites under the developed protocol. The recovery of curcumin in C. longa extract showed good recovery. Results of the recovery studies indicate the high accuracy of the method. The modifications in the chromatographic conditions did not affect the detection of curcumin content [6, 14, 18].

Conclusions

A simple, rapid, precise, accurate, and sensitive HPTLC method was successfully developed and validated for the determination of curcumin in C. longa. The developed method was found suitable for rapid screening of curcumin for their quantitative assessment. It does not necessitate any complex treatment or sophisticated analytical units, which are usually associated with HPLC and GC analyses. The obtained data suggest that the method is selective, reproducible, and economical and could be used for the routine analysis of reported compounds in crude drugs and extracts. The developed HPTLC method will help in the determination of the purity of the C. longa available from the different sources by detection of the related impurities as well as for quality control of C. longa. The HPTLC analysis has shown the presence of a quantifiable amount of curcumin in the samples. The content of the active principle, i.e., curcumin was found to be 1.5% (per dry weight). The developed method finds application in the pharmaceutical industry as a pharmacognostic tool for the quantification of this medicinally important plant.

Availability of data and materials

Data and material are available upon request.

Abbreviations

C. longa :

Curcuma longa L

HPTLC:

High-Performance Thin-Layer Chromatography

SMS-LLME:

Supramolecular Solvent-Based Liquid–Liquid Microextraction

HPLC:

High-Performance Liquid Chromatography (HPLC)

UPLC-MS:

Ultra-performance Liquid Chromatography–Mass Spectrometry (UPLC-MS)

RPLC:

Reversed-Phase Liquid Chromatography

ICH:

International Conference on Harmonization

LOD:

Limits of Detection (LOD)

LOQ:

Limits of Quantification

RSD:

Relative Standard Deviation
