Assessment of acute and sub-chronic neurotoxicity of Morus alba L. fruits in rodents

Abstract

Background

Morus alba L. fruits are consumed since long for their nutritional and medicinal values. Although there were studies on the neuroprotective activity of the fruit extract, safety profile of the fruit extract is not yet explored as per the recommended standard guidelines over the central nervous system (CNS). The present work was aimed to assess the neurotoxicity profile of chemically characterized extract of M. alba L. fruits (MA) using validated OECD guidelines, i.e., 425 and 424 in rodents.

Results

Neurobehavioural parameters were examined for motor, sensory and behavioural responses using actophotometer, hot plate and light and dark box test, respectively as per OECD 424. Interestingly, no sign of mortality and/or adversity on mice treated per-orally with MA (2000 mg/kg) was observed during the limit test as per OECD 425. Further, rats treated with MA (1000, 300 and 100 mg/kg, p.o.) for 28 days, showed insignificant (p < 0.05) changes in body weight, food consumption, neurobehavioural responses, organ weights and biochemical, haematological and histopathological features when compared with vehicle-treated animals.

Conclusion

The outcome of findings suggests that MA is safe in acute oral as well as sub-chronic (28 days) administration in mice and rats respectively. MA (1000 mg/kg) did not pose any toxic sign and symptoms on neurobehavioural responses in rats even after 28 days repeated treatment in compliance with OECD 424.

Background

Herbal medicine is the backbone of paramount healthcare system in the developing countries as the inhabitants of those areas do not have access or cannot afford to buy pharmaceuticals [1]. Many of these plants are used as medicine since time immemorial and are commonly perceived to be safe [2]. This safety is based on their long usage in the treatment of diseases according to the traditional knowledge accumulated over years. A general belief exist amongst people that herbal medicaments are exempted from any unwanted or toxic effects as they are derived from nature [3]. However, recent scientific studies have reported that many plant-derived food and medicine are potentially toxic, mutagenic and carcinogenic [4, 5]. Moreover, medicinal plants have not received much attention as its toxicity is not well established or is still unknown [6]. For these reasons, the toxicity study is a crucial part in assessment and development of herbal products.

Morus alba Linn. (Moraceae) is a perennial, deciduous medium-sized tree commonly known as white mulberry. It is native to Asian countries and is cultivated in certain tropical countries for rearing silkworms. The leaves are used to prepare different Indian recipes. The fruits are eaten as such, fermented to prepare special wine and beer and is made into jams and jellies [7]. Mulberry is not only used as a fruit but also as a medicine. In traditional oriental medicine, every part of the plant has diversified uses. In traditional Chinese medicine, mulberry is used for the treatment and prevention of different kinds of ailments like fever, and to protect the liver, improve eyesight, strengthen joints, facilitate discharge of urine and lower blood pressure [8]. The fruits possess cleansing properties and is used as mouth wash. It is used to treat anaemia, weakness, and fatigue, and to nourish the blood [9]. In contemporary pharmacological research, mulberry fruits are reported to have antioxidant and antimicrobial [10], diuretic [11], antibacterial [12], anti-diabetic [13], anti-parkinsonian [14, 15], and neuro-protective effect [16, 17] and is found to be effective against cerebral ischaemia [18]. Like other berries, mulberry fruits are rich in numerous bioactive constituents such as flavonoids, tannins, anthocyanins and phenolic acids which are known to have antioxidant properties [19]. These chemical constituents are found to have positive effects against the reported diseases and disorders. The fruits also contain ample amounts of ascorbic acid, carotene, vitamin D and minerals [20] that suggest its unique nutritional profile which enhances its significance as promising nature’s functional tonic. M. alba is largely used as a nutraceutical that has led it to earn the status of ‘superfood’ [21]. Although there have been reports on the effectiveness of the fruit extract over the CNS-related etiologies, the safety profile of the fruit extract is yet to be explored as per the recommended standard guidelines over the CNS. Therefore, the objective of this investigation is to carry out acute toxicity study and to access sub-chronic neurotoxicity of mulberry fruit extract. The study was conducted in accordance to OECD guidelines.

Methods

Collection and identification of the plant material

The mature fruits of Morus alba L. were collected from the easternmost region of (27° 47″ latitude and 94° 91″ longitude), Assam, India, in the month of March 2018. The plant was identified and authenticated by the Eastern Regional Centre of the Botanical Survey of India (No.: BSI/ERC/2018/Tech/468, dated 22 October 2018).

Preparation of the extract

The fruits were washed thoroughly and dried under shaded condition. The dried material was subjected to pulverization and then passed through sieve no. 30 to get a coarse powder of the crude drug. The dried powder was extracted with 70% methanol by cold maceration at room temperature for 48 h. The extract was filtered through Whatman no.1 filter paper. This was repeated for multiple times, and similar extracts were pooled together, concentrated and vacuum evaporated using rotary evaporator at a temperature of 45 °C, and the solvent traces were removed by lyophilization. The freeze-dried extract thus obtained was stored at low temperature (− 8 °C) in air tight containers.

High-performance thin layer chromatography analysis

High-performance thin layer chromatography (HPTLC) analysis was performed using the markers quercetin, rutin and resveratrol. The reported contents of quercetin, rutin and resveratrol in mulberry fruits are 0.038, 0.433 and 0.03 mg/g of fruit extract respectively [19]. The standards (1 mg/ml) were prepared by dissolving 10 mg of each of the standard (quercetin, rutin and resveratrol) in 10 ml of methanol in separate volumetric flasks and were sonicated (Ultrasonic cleaner STD Rivotek, India).The extract was prepared by dissolving 100 mg of 70% methanol extract of M. alba fruits in 1 mL methanol, sonicated followed by centrifugation (RM-03 Plus, REMI, India), and the supernatant was used for the analysis.

HPTLC was performed on silica gel 60F₂₅₄ pre-coated plates (Merck, Mumbai, India). The applications were made as bands 8.0-mm wide, 11.5-mm apart and 10.0-mm from the bottom edge of the chromatographic plate by the use of a Camag (Muttenz, Switzerland) Linomat V sample applicator equipped with a 100-μL Hamilton (USA) syringe. Ascending development to a distance of 70 mm was performed at room temperature (28 ± 2 °C), with a suitable mobile phase, in a Camag glass twin-trough chamber previously saturated with mobile phase vapour for 20 min. The mobile phases used as follows—for quercetin (toluene: ethyl acetate: formic acid: 10:8:0.4), for resveratrol (hexane: ethyl acetate: glacial acetic acid: 8:12:0.2) and for rutin (ethyl acetate: formic acid: acetic acid: water: 15:1:1:1.5). After development, the plates were dried and then scanned at specified wavelength with a Camag TLC Scanner. The compounds were identified by superimposing the UV spectra of the standards and the samples within the same R_f range.

Animals and housing conditions

The animal studies were performed in accordance with the guidelines of Committee for the Purpose of Control and Supervision of Experiments on Animals (CPCSEA) and was approved by the Institutional Animal Ethics Committee (IAEC), vide approval no. IAEC/DU/166, dtd. 10.12.2018. Female mice of Swiss strain (20–25 g) and male and female rats of Wistar strain (150 ± 20 g, 5–6 weeks old), obtained from breeding house, were used for in vivo neurotoxicity study. The animal house was well ventilated, and the temperature was maintained at 22 °C (± 3 °C). Lighting was provided according to 12 h light/dark cycle. The animals were housed in large spacious cages in small groups of same sex to allow to acclimatize to laboratory conditions 5–7 days before the commencement of the experiment. For feeding, conventional laboratory diets were used with an unlimited supply of drinking water.

Acute toxicity study

The acute oral toxicity study was based on ‘Up-and-Down’ procedure as described by Dixon according to OECD 425 guidelines [22]. Healthy adult female Swiss albino mice selected for the study were fasted overnight prior to dosing. MA extract was dissolved in 10% carboxymethyl cellulose (CMC) and administered orally at a single dose of 2000 mg/kg of body weight (b.w) to all the female mice (n = 6). Following the dosing, the animals were observed individually once, periodically during the first 24 h (with special attention given during the first 4 h) and daily thereafter, for a total of 14 days for any delayed toxic effects. The behavioural changes and death were the main parameters observed during the study period.

Neurotoxicity study

The neurological safety profile of MA was evaluated by performing various neurobehavioural tests as per OECD guideline 424 [23]. Based on acute toxicity study result, three doses were selected for further studies (1000, 300 and 100 mg/kg). The control group animals received a definite volume of distilled water. Accordingly, the animals were randomly divided into 4 groups (comprising n = 12 animals; 6 males and 6 females in each group). Repeated daily dose of design regimen was administered orally for a period of 28 days.

Neurobehavioural evaluation

Neurotoxicity of the plant was determined using open field test on actophotometer for motor coordination and ataxia, sensory response analysis using hot plate test and stereotyped behaviour (rearing, grooming, latency, level of mobility, urination/defecation, tremor/convulsions, vocalization, arousal, posture, pilo-erection, gait abnormalities, stereotypy and/or unusual behaviours) using light-dark box test.

Assessment of motor dysfunction

Spontaneous locomotor activity

The locomotor activity can be an index of wakefulness (alertness) of mental activity. The spontaneous locomotor activity was performed in actophotometer (Orchid Scientific & Innovative India Pvt. Ltd., Nashik, India). Each animal was allowed for a period of 5 min in a square closed field arena (30 × 30 × 30 cm) equipped with 6 photocells in the outer wall for spontaneous locomotion. Interruption of photocell beams (locomotor activity) was recorded by means of a 6 digit resettable counter. Increase in count was regarded as central nervous stimulation, decrease in count as central nervous depressant activity [24].

Assessment of behavioural impairment

Light-dark box test

The light-dark box (LDB) (Orchid Scientific & Innovative India Pvt. Ltd., Nashik, India) setup consisted of two compartments: one lit compartment (40 × 50 cm, 350 lux; light box) and one dark compartment (40 × 30 cm, 70 lux) [25]. The floors in each compartment were divided into squares (10 × 10 cm), and the compartments were connected via a small opening (7.5 × 7.5 cm) enabling transition between the compartments [26]. Rats were placed in the dark compartment and rearing and grooming, number of entries and time spent in light compartment, and latency to first light compartment entry during the 5 min test were assessed by all maze video tracking software (Orchid Scientific & Innovative India Pvt. Ltd., Nashik, India).

Assessment of sensory dysfunction

Hot plate reaction time in rats

Rats were screened by placing them on a hot plate maintained at 55 ± 1 °C and recording the reaction time in seconds for forepaw licking or jumping. Only animals which reacted within 15 s and which did not show large variation when tested on four separate occasions, each 15 min apart, were taken for the test. The time for forepaw licking or jumping on the heated plate of the analgesiometer maintained at 55 °C was taken as the reaction time [24].

Body weight and food consumption

All animals were weighed once a week. The food intake was also recorded weekly.

Biochemical and haematological analysis

At 28th day of the treatment, blood samples were collected from the animals in two batches. From one batch of blood sample, serum was separated by centrifuging at 6000 rpm for 10 min and was used for biochemical investigations. The other batch was used for haematological study.

Necroscopy and histopathology

After euthanasia, the internal organs (liver, spleen, lung, heart, kidneys, testis and ovaries) were harvested, and gross findings as well as organ weights were recorded. The liver, spleen, lung, heart, kidney and brain were fixed with neutral formalin for 48 h, dehydrated with alcohol, embedded in paraffin, cut into thin sections and stained with haematoxylin-eosin dye for photomicroscopic examinations.

Statistical analysis

Data of all experiments were expressed as mean ± Standard deviation (SD) of six animals in each group. Differences amongst different treatment groups were determined by one-way analysis of variance (ANOVA) followed by Student-Newman-Keuls comparison test unless stated otherwise. GraphPad Prism 5 was used for statistical analysis.

Results

HPTLC analysis

The MA extract was characterized by validated HPTLC method [27, 28]. The identification of quercetin was confirmed by superimposing the UV spectra of the standard and the sample within the same R_f~ 0.334 at 262 nm (Fig. 1a). Similarly, the UV spectra of standard rutin was found to match with that of sample within the same R_f 0.235 at 262 nm (Fig. 1b).The presence of resveratrol in the sample was confirmed when its R_f at 0.566 was found to match with that of the standard at 302 nm (Fig. 1c).

Fig. 1

Fingerprint chromatogram of standard marker compounds and MA. a Fingerprint of quercetin standard (std) and MA at 262 nm. b Fingerprint of rutin (std) and MA at 262 nm. c Fingerprint of resveratrol (std) and MA at 302 nm

Acute toxicity study

Rats administered with a single per-oral dose of MA at 2000 mg/kg did not show any toxic signs and/or mortality during the period of observation (14 days) as per OECD 425. Therefore LD₅₀ (median lethal dose: dose required to kill half of the tested population after a specified test duration) of MA was found to be more than 2000 mg/kg as calculated by AOT425statpgm (ver.1.0).

Neurotoxicity study

Mortality and clinical signs

All administration groups survived to the end of study, and no obvious abnormal clinical signs were found in any of the MA-treated groups, throughout the experimental period of 28 days. No obvious clinical sign, including loss of hair, changes in skin colour, scabbing, eyes and mucous membranes and change in behaviour patterns were observed in any of the treated groups throughout the experimental period. The animals from all administration groups appeared healthy throughout the study period.

Neurobehavioural assessment

Assessment of motor dysfunction

Spontaneous locomotor activity

The M. alba-treated groups did not produce any significant (P < 0.05) increase or reduction in locomotor activity when compared with the vehicle control group. The results of the test are given in Fig. 2.

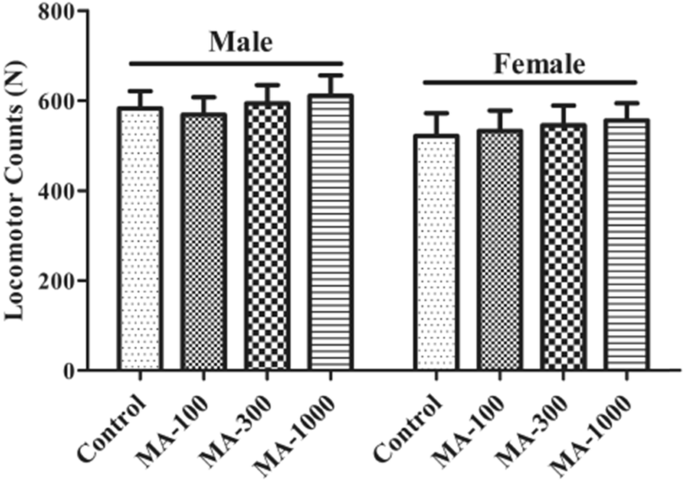

Fig. 2

Effect of MA (100, 300 and 1000 mg/kg/b.w.) on locomotor counts in actophotometer test. Values are mean ± SD, n = 6 animals in each group. P value (P < 0.05) was considered as statistically significant. Data was analyzed via one-way ANOVA followed by Newman-Keuls Multiple Comparison Test

Assessment of behavioural impairment

Light-dark box test

The animals treated with MA did not show any significant (P < 0.05) change in the time spent in light chamber and the number of entries in light chamber. The results of L&D box test are given in Fig. 3.

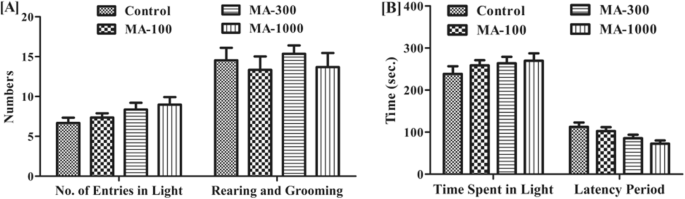

Fig. 3

Effect of MA (100, 300 and 1000 mg/kg/b.w.) on behavioural impairment of rats using light-dark box test. a Number of entries in light chamber and rearing and grooming score; b time spent in light and latency period of first time entry in light chamber on rats. Values are mean ± SD, n = 12 animals in each group. P value (P < 0.05) was considered as statistically significant. Data was analyzed via one-way ANOVA followed by Newman-Keuls Multiple Comparison Test

Assessment of sensory dysfunction

Hot plate reaction time in rat

The reaction time of the MA at the doses of 100, 300 and 1000 mg/kg produced no significant change in the reaction time in the hot plate (P < 0.05) (Fig. 4).

Fig. 4

Response time on hot plate test on male and female rats. Values are mean ± SD, n = 6 animals in each group. P value (P < 0.05) was considered as statistically significant. Data was analyzed via one way ANOVA followed by Newman-Keuls Multiple Comparison Test

Body weight and food consumption

There were no changes in body weights in the treated groups when compared to the vehicle control group. Body weight changes for male and female rats during the treatment periods are given in the Fig. 5. The treatment did not affect the daily food consumption. The report of food consumption during the course of the treatment is given in Fig. 6.

Fig. 5

Changes in body weight of rats treated with MA for a period of 28 days. a Male rats and b female rats. The values were presented as mean ± SD

Fig. 6

Changes in food consumption of rats treated with MA for a period of 28 days. a Male rats and b female rats. The values were presented as mean ± SD

Biochemical and haematological analysis

The effects of administration of MA on haematological and biochemical parameters are presented in Tables 1 and 2. There are no significant changes in haematological parameters (haemoglobin, total RBC cells, total WBC cells and haematocrit) of treated rats and the control group. No statistically significant changes in kidney function parameters (blood urea nitrogen, creatinine) were noted. The liver function enzymes such as alanine aminotransferase (ALT), aspartate aminotransferase (AST) and alkaline phosphatase did not reveal any relevant changes in the extract-administered groups. The reports of total protein, cholesterol, glucose and albumin level did not indicate any notable changes.

Table 1 Haematological parameters of rats treated with 100, 300 and 1000 mg/kg of MA for a period of 28 days

Table 2 Biochemical parameters of rats treated with (100, 300, 1000 mg/kg) MA for a period of 28 days

Organ weight

Organ weights of 28 days treated-groups are shown in Table 3. No significant difference in organ weight was observed in the treatment and control groups at the time of necroscopy.

Table 3 Organ weights of rats administered orally with MA for a period of 28 days

Histopathology

Histopathological examinations were first conducted on the liver, kidneys, heart, spleen, lungs, brain, pancreas and stomach of animals only in the high-dose and control groups. If there were pathological changes observed, histological examination of the corresponding organs were also carried out in the mid-dose and low-dose groups. Macroscopic examination of the organs of animals treated with high dose did not reveal any abnormality in colour or texture when compared with the organs of the control group. In addition, microscopic examination of the control and MA-treated group showed normal architecture and absence of any gross pathological lesion in organs (Fig. 7).

Fig. 7

Photomicrograph of organ sections of rats administered with normal saline and MA (1000 mg/kg) for 28 days. Histomorphologies of normal group rats—A, liver; C, kidney; E, alveolar sac; G, brain; I, cardiac cells; K, pancreatic cells; M, spleen; O, stomach. Histomorphologies of M. alba treated rats—B, liver; D, kidney; F, alveolar sac; H, brain; J, cardiac cells; L, pancreatic cells; N, spleen; P, stomach. Cr. V central vein; Gr. glomerulus; Av. Sc alveolar sac; Ist. L islet cells of Langerhans; Mu mucosa; SM sub mucosa; M muscularis; S serosa

Discussion

As the global use and commercial success of medicines, nutraceuticals and functional foods have grown, so have concerns about public health risks regarding the concentration, composition, and individual contaminants, as well as their interactions with other drugs [29]. In traditional system of medicine, mulberry fruits are useful in the treatment of anaemia, weakness and fatigue and nourish the blood [9]. Although previous studies have attested that the fruits of the plant produce beneficial effect over the CNS [14, 17, 18] there is no regulatory neuro-toxicological evaluation on mulberry fruit extract. In addition, both medicinal and poisonous plants possess secondary metabolites such as glycosides, alkaloids, flavonoids, tannins and amino acids [30] and exhibit beneficial or adverse effects based on it [31]. As safety is the preponderant measure in the selection of herbal products for use in healthcare systems, [32] here, the neuro-toxicity of M. alba fruit extract was evaluated as per standard guidelines.

In the present study, MA was characterized by HPTLC method using quercetin, rutin and resveratrol as markers. The effects of MA on behavioural paradigms, biochemical, haematological and architectural changes were evaluated. Mortality is an important criterion in toxicity evaluation [33], and acute administration did not elicit significant mortality. No deaths occurred within 48 h. No clinical signs of toxicity occurred, and all the animals appeared to be healthy. From acute toxicity study, the LD₅₀ value of the MA was found to be greater than 2000 mg/kg.

The CNS controls all the major functions of the body, and minor alterations of the nervous system can have a profound impact on other activities of the body. Behaviour is considered as an important manifestation of the CNS, and any toxicant-induced alterations of the CNS are reflected in the neurobehavioural output of the animal. Thus, the OECD guideline 424 states that there are several other signs of nervous system toxicity other than neuropathy such as loss of motor coordination, sensory deficits and behavioural dysfunction. So, to detect the major neurobehavioural effects of M. alba in vivo, we used certain neuro-pharmacological models to characterize and quantify the neurotoxic responses which is further supported by histopathological, haematological and biochemical investigations. Locomotor activity is considered as an index of alertness and a decrease in it is an indicative of sedative activity [34]. The locotomotor activity was assessed by actophotometer test, and the number of locomotor counts of the treated animals did not vary significantly (P < 0.05) from the control animals. The light and dark paradigm is based on the natural aversion of rodent to brightly lit places. In this model, the treated animals showed no variation (P < 0.05) in the time spent in the light and dark compartments compared to the vehicle control animals. In this study, the hotplate method was used to establish the effectiveness of the extract in evaluating the CNS analgesia. In this model, the reaction time of MA-treated animals on the hotplate did not indicate any remarkable difference from that of the vehicle-treated animals.

Changes in the body weight are an important indicator in the determination of physiological changes brought about by the ingestion of an external agent [35]. Repeated administration of MA did not cause any change in body weights of the animals in the treatment groups (100, 300, 1000 mg/kg).

The daily food and water intake of the treated animals did not vary significantly in both the sexes compared to control animals. This indicates that MA did not interfere with the normal metabolism and so with the general health status of the treated animals. Similarly, no biological significant variation in the weights of the liver, spleen, lung, heart, kidneys, testis/ovary or brain was observed, suggesting that the administration of the extract at the sub-chronic oral doses had no effect on normal growth. Since there was no reduction in body and organ weights of the treated animals at any of the doses tested, we concluded that the extract is nontoxic to the analyzed organs.

The haemopoietic system is considered one of the most sensitive target for the toxic compounds, and its effects can cause changes in the normal counts of blood components [36]. The haematological parameters did not show any relevant changes in the MA-treated animals. This indicates that MA did not interfere with haematopoiesis and leucopoiesis in rats.

The liver is the main site of detoxification, and liver damage is assessed by determination of serum transaminases and total protein [37]. The lack of alterations in the levels of enzymes (AST and ALT), used as biomarkers for predicting toxicity [38], indicates MA did not cause any detrimental effects to the liver. The renal function markers, blood urea nitrogen and creatinine levels, were not affected by administration of the extract. The liver is the major site of cholesterol synthesis and degradation [39]. Since, no relevant changes were observed in the levels of cholesterol, it indicates MA had no effects on the cholesterol metabolism in rats. The other biochemical parameters, glucose and albumin levels, were also found to be normal. These results were further supported by the histopathological examinations.

The macroscopic analysis did not show any abnormal changes. In addition, the microscopic examination of selected vital organs from high-dose (1000 mg/kg) treated and control animals revealed normal architecture. The animals had normal hepatocytes, portal vein, glomeruli, intact alveolar sac, cardiac cells, brain cells, pancreatic cells and stomach walls. Thus, histological studies confirmed that no internal injuries or morphological changes were triggered by daily oral administration of MA extract for a period of 28 days, even at the highest tested dose of 1000 mg/kg.

Conclusion

Neurotoxicological profile of chemically characterized MA extract was carried out to evaluate the safety of MA over the CNS. The result of the overall investigation suggest that the fruits of Morus alba L. do not possess any toxicologically relevant abnormalities over the CNS even at the highest dose of 1000 mg/kg. The present study is carried out based upon the behavioural models without any associated neurochemical estimations; to understand the exact mechanism of action and extend the results further, it is necessary to carry out estimations of the neurotransmitter levels in the brain.
