Physicochemical compatibility studies of triclosan and flurbiprofen with excipients of pharmaceutical formulation using binary, ternary, and multi-combination approach
Future Journal of Pharmaceutical Sciences volume 7, Article number: 148 (2021)
The aim of the study was to evaluate the suitability of triclosan (TCS) and flurbiprofen (FLB) with poly-ε-caprolactone (PCL), chitosan (CS), and Kolliphor® P188 (KP) for possible application in the design of nano-formulations.
Differential scanning calorimetry (DSC), X-ray powder diffraction (XRPD), and scanning electron microscopy (SEM) revealed the physical characteristics of the various sample compositions without any apparent interaction. The Fourier transform infrared spectroscopy (FTIR)’s spectra of the physical mixtures showed their characteristic absorption bands with broadening and overlapping of bands in some instances, but no appearance of new bands was observed.
The study revealed the physical form stability of the evaluated components after the storage period and lack of definite pharmaceutical incompatibility between them. Thus, the selected drugs and excipients could be used for the development of pharmaceutical nano-formulations.
Development of a rational and ideal pharmaceutical product should encompass the preformulation study of the active pharmaceutical ingredients (APIs) against its intended formulation excipients. Preformulation is an investigation carried out during drug product development to assess physicochemical properties of the drug candidate, either alone or in combination with excipients for effective drug delivery [1,2,3,4,5]. Preformulation helps generate useful information as per the API, excipient, formulation parameters, and delivery method to guide the formulation scientists to develop an efficient and stable dosage form. Importantly, detection of incompatibilities between excipients and the active medicament represents a vital and integral part of the preformulation, and therefore, must be conducted at the early stage of drug product development [6,7,8]. In a drug formulation, the active molecules and excipients may interact during the processing stage and consequently, may affect the chemical nature, quality, stability, therapeutic efficacy, bioavailability, and safety profile of the final product [9,10,11,12,13].
Incompatibility between an API and excipient may arise from hydrogenation, hydrolysis, photodegradation, oxidation, dehydration, elimination, isomerization, cyclization, ionic complexation, and denaturization . Hydrogenation reactions may occur via hydrogen-donating functional groups of an API, resulting in drug-excipient interaction . Ionic interactions may occur in solution between counter ions brought by ionizable and soluble excipients and ionizable API, resulting in insoluble products [15,16,17]. Many factors such as pH, temperature, light, oxygen, and moisture act as catalysts for initiating the drugs-excipients incompatibility reaction . Based on the aforementioned facts, it becomes very imperative to evaluate any possible incompatibility that may arise from any new formulation design.
Till date, there is no clear cut as per the universally accepted protocol for drug-drug or drug-excipient compatibility testing [7, 15, 18, 19]. However, the simple and most commonly employed procedure for this purpose is combining the drug substance with the excipient(s) that are intended for the formulation to form a binary, ternary, or multiple-component physical mixture systems, with or without moisture, and their subsequent storage under normal or stress conditions for a specific period [7, 20, 21]. This is usually followed by evaluations using various analytical techniques such as differential scanning calorimetry (DSC), Fourier transform infrared spectroscopy (FTIR), X-ray powder diffraction (XRPD), high-performance liquid chromatography (HPLC), scanning electron microscopy (SEM), etc., to estimate the potential incompatibilities, degradation pathways, and impurities [14, 21,22,23,24]. The DSC or other rapid thermal analysis technique like thermogravimetry can detect possible physical interactions [25, 26]. DSC can reveal drug-excipient interactions through the endothermal or exothermal effects, by the appearance, shift, or disappearance of thermogram peak(s) [25, 27].
Similarly, complementary techniques such as XRPD and SEM are commonly employed as a supplement of DSC study . FTIR and nuclear magnetic resonance (NMR) are also being employed to study incompatibilities of drug–excipient physical mixtures, especially for the detection of any possible chemical interactions [7, 9]. Other analytical techniques such as HPLC and liquid chromatography-mass spectrometry are used to detect impurities through evaluation of the peaks and the elution time [6, 28,29,30]. Various researchers have recently reported compatibility studies for the physical mixtures of drugs-excipients in 1:1 ratio, using these analytical techniques [31,32,33].
The present study investigates compatibility screening based on binary or multiple combination mixtures of the drugs, i.e., triclosan (TCS) and flurbiprofen (FLB), with poly-ε-caprolactone (PCL), chitosan (CS) and Kolliphor® P188 (KP) as the excipients. The physical forms of the selected components where reported as crystalline powder for TCS and FLB , semi-crystalline for PCL [35, 36] and KP , and amorphous for CS [20, 38, 39]. However, we could not find any reported data for the effects of storage under specified conditions, on the physical stability of these components, and hence, it is desirable to provide this data.
A suitable formulation of TCS and FLB combination would be highly desirable for periodontal therapy, owing to the therapeutic efficacy of the drugs. TCS is a broad-spectrum antimicrobial agent with a recognized efficacy against several plaque-forming bacteria and has been used extensively in various products for many decades [40, 41]. Studies have shown that the broad-spectrum antimicrobial effect of TCS covered a wide range of Gram-positive and Gram-negative bacteria found in the oral cavity [42, 43]. On the other hand, FLB belongs to non-steroidal anti-inflammatory drugs (NSAIDs) class of drugs that has been well investigated during the last two decades, as a modulator of the inflammatory response of the host having periodontitis [44, 45]. Studies have revealed evidence which indicated that supplementing periodontitis treatment with NSAIDs can have a positive effect on the outcome of the therapy [44, 46,47,48,49,50,51]. Looking at these potential benefits of TCS and FLB, it is worthwhile to establish a compatibility profile of their combination for the design of formulation that can be used to treat oral cavity diseases such as periodontitis. The objective of this study was to evaluate possible incompatibilities/interaction between drug-drug, drug-excipient, drugs-excipients, and excipient-excipient for possible nano-formulation design, using DSC, HPLC, XRPD, and FTIR techniques. The present study also employed these techniques to provide data for the effect of storage of TCS, FLB, PCL, CS, and KP at ambient temperature, on their respective physical forms.
Chemicals and reagents
Triclosan was purchased from Bio Basic Canada Inc. (Markham Ontario, Canada). Flurbiprofen was from FDC Limited (Mumbai, India). Potassium bromide, acetonitrile, and methanol of HPLC grade were purchased from Merck Darmstadt, Germany. Chitosan with a molecular weight of 190–310 kDa and degree of deacetylation of 85%, poly-ε-caprolactone, and Kolliphor® P188 were purchased from Sigma-Aldrich, USA. Distilled water was produced in-house by the Favorit W4L water system (Genristo Ltd, England). All reagents and chemicals were of analytical grade.
Samples preparations and compatibility study
Binary, ternary, or multi-combination mixtures of drug-drug, drug-excipient, drugs-excipients, or excipient-excipient were prepared in 1:1 (w/w) ratios as presented in Table 1. Briefly, the samples were weighed accordingly, mixed to form physical mixtures, uniformly comminuted with a mortar and pestle, and then transferred into airtight light-resistant glass containers (6 cm height × 2.5 cm diameter). To ensure homogeneity and even particle size distribution, each mixture was adequately grounded and passed through sieve number 120 (125 μm) and subsequently observed under optical microscope before its transfer into the container. In the case of PCL, which comes as hard pellets, a laboratory mill (mrc, UK) was used to size reduced it to fine particles before mixing with the other component. The physical mixtures in the containers were stored at ambient temperature for 30 days. The individual pure drugs and excipients were also stored separately under the same conditions of the physical mixtures to serve as controls. The prepared samples were characterized using DSC, XRPD, and FTIR. The HPLC analysis was performed to validate the samples through the elution times and the ordinate of peaks. SEM was conducted to examine the polymorphic forms of the drugs.
Differential scanning calorimetry
DSC analyses of the individual pure drugs and excipients and their physical mixtures were conducted using differential scanning calorimeter (Pyris 6 DSC, Perkin Elmer, The Netherland). Briefly, the DSC system was previously calibrated using pure indium. About 3–5 mg of samples were weighed in aluminum pans (Perkin Elmer), sealed using Perkin Elmer DSC sealer, and then analyzed against a reference empty aluminum pan. The analysis was carried out under nitrogen purging, flowing at 20 mL min−1 and at a heating rate of 10 °C min−1 over a temperature range of 20–300 °C. The thermograms were analyzed by Pyris software (Perkin Elmer).
Fourier transform infrared spectroscopy
FTIR analysis of each pure drug, pure excipient, and their physical mixtures were performed using a Thermo Nicolet NEXUS 470 FTIR spectrometer (Thermo Fisher Scientific Inc., USA). The machine was equipped with a deuterated triglycine sulfate detector. The detector was fitted with a potassium bromide (KBr) window. Each FTIR sample was prepared by compressing a uniform mixture of about 1 mg of solid sample and 100 mg of KBr (IR spectroscopy grade) using a hydraulic press (Beckman®, USA) to form a thin pellet. The spectra were recorded using the KBr pellets over a range of 4000–400 cm−1, with a resolution of 4 cm−1. The data acquisition and interpretation were conducted using OMNIC® software version 9.2.86 (Thermo Fisher Scientific Inc., USA).
Scanning electron microscopy
To assess the solid-state of the pure drugs, their surface morphology were investigated using a Leo Supra 50 VP field emission scanning electron microscope (Carl-Ziess SMT, Oberkochen, Germany). The machine was operated under high vacuum mode at an accelerating voltage of 10–15 kV, and it was attached to an Oxford Inca-X energy dispersive X-ray microanalysis system (Oxford Instruments, UK). Prior to the analysis, the samples were mounted on a brass stage using double-sided adhesive carbon tape and then sputter-coated (Polaron SC515 sputter coater, Fison instruments, Sussex, UK) with gold-palladium alloy to enable electric conductivity. The surface morphology of the samples was recorded at different magnifications by SEM software (Oxford Instruments, UK).
X-ray powder diffraction
A Bruker X-ray diffractometer D8 Advance (Karlsruhe, Germany) was used to perform the XRPD analysis in order to investigate the effect of the binary and multi-combination mixtures of drugs-excipients on the crystallinity of the drugs. The machine was equipped with a copper X-ray tube and a flat-plate sample holder. The sample powders were irradiated with X-ray beam (wavelength = 1.54060 Å) with an applied voltage and current of 40 kV and 40 mA, respectively. All measurements were performed under the run time of 25.5 min and over diffraction angle (2 Theta) range of 1.5° to 50°, at a scanning rate of 0.020° 2 Theta/step size. The XRPD patterns of pure drugs, pure excipients, a physical mixture of drugs, and physical mixtures of drugs-excipients were recorded and interpreted using the Bruker’s Diffrac.suite eva software (Karlsruhe, Germany).
High-performance liquid chromatography analysis
HPLC analysis was conducted for the samples containing APIs only, to determine the drug content after the 30 days of storage. For sample preparation, an amount of each sample containing nominal API content equivalent to 2 mg was dissolved in methanol up to 20 mL. The mixture was vortexed for 2 min and then centrifuged at 10,000 rpm for 20 min. The supernatant was filtered through a 0.45 μm polytetrafluoroethylene membrane syringe filter and then analyzed using our previously developed HPLC method [52,53,54]. Briefly, the HPLC analysis was performed using a Shimadzu (Japan) HPLC system. For the chromatographic separations, an Agilent column, ZORBAX SB-C18 (5 μm, 4.6 × 250 mm) (USA) was used at a set temperature of 30 °C. The mobile phase was a mixture of acetonitrile and 0.001 M citric acid (pH 3), at a ratio of 90:10, v/v, respectively. The flow rate was set at 0.3 mL min−1 under isocratic elution mode. Injection volume of the sample solutions was 10 μL, and for each injection, a run time of 20 min was allowed. All the mobile phase used for the analysis was filtered through a nylon filter (0.45 μm) containing a titan membrane disc (Sun Sri, USA) and degassed using Power Sonic 405 sonicator (Seoul, Korea) prior to their use.
There were no significant visual changes observed in the samples as per the organoleptic parameters (color, texture, or gas formation) during and after the storage period.
Differential scanning calorimetry
DSC thermograms of each selected drug, excipient, and the combined physical mixture of all components are shown in Fig. 1. The initial main thermal event registered in all samples was an endothermic peak in the range of 53 to 114 °C. TCS, FLB, and KP exhibited endothermic peaks at 58.1 °C, 114.3 °C, and 53.6 °C, respectively. These sharp melting peaks corresponded with enthalpy or heat of fusion (ΔHfus) of 62.3, 76.9, and 93.9 J g−1 for TCS, FLB, and KP, respectively. The endothermic melting peak of PCL was at 63.1 °C while that of CS stretched between 29 and 98 °C.
The melting endotherms of TCS, KP, and PCL were slightly broadened, overlapped, and shifted toward the lower temperature range (starting from 42.4 °C and ending at 52.1 °C) which arose merely because of mixing effect of the components . The melting peak of FLB was not detected in the drugs-excipients physical mixture. Similar thermal events were observed in 1:1 physical mixtures of FLB + KP, TCS + PCL, and TCS + KP, with the disappearance of FLB melting peak in FLB and KP combination (Fig. 2A), and broadening and/or shifting of melting peaks toward the lower temperatures in the case of TCS + PCL and TCS + KP, as shown in Fig. 2B and C, respectively. However, no extra endothermic peaks could be observed to indicate any possible incompatibility in all these thermograms.
For the 1:1 w/w physical mixture of the drug substances, the melting peaks were a simple superimposition (Fig. 3). However, a decrease in the onset temperature (Tonset) from 111.8 to 78.5 °C and broadening of melting peak was observed in the case of FLB (Fig. 3) which could be associated with partial miscibility between the two drugs due to the mixing [28, 55].
TCS and FLB exhibited another broad endothermic peak at 236 and 249 °C, respectively (Fig. 3), which could be assigned to their structural decomposition at these temperatures.
The DSC curve of a ternary physical mixture of selected excipients (KP, PCL, and CS) showed sharp and reasonably sharp endothermic peaks at 52.5 and 62.8 °C corresponding to the characteristic endotherms of pure KP and PCL, respectively (Fig. 4). In the case of CS, no endothermic peak was observed, probably due to its amorphous nature. This suggested that the selected excipients are compatible with each other.
In the DSC curves of 1:1 w/w physical mixtures of TCS + CS, FLB + CS, and FLB + PCL, as shown in Fig. 5A, B, and C, respectively, all the endothermic melting peaks of the components were well preserved and matched their respective pure component. The characteristic endotherms of each component have appeared in these mixtures, thus demonstrating lack of physical interactions. As indicated in Fig. 5C for the physical mixture of FLB + PCL, the area and ΔHfus of the endothermic melting peak of FLB significantly decreased from 346.2 to 9.3 mJ and 76.9 to 1.2 J g−1, respectively. These changes in the endotherm melting peak may be due to the mixing process.
Although most of the thermal events of the physical mixtures of the selected drugs and excipients did not show any evidence of pharmaceutical incompatibility, some physical mixtures suggested the possibility of solid-state interaction, hence the need for further studies to corroborate this findings.
Fourier transform infrared spectroscopy
The 1:1 w/w physical mixture of the drugs revealed that their FTIR spectra are a simple superimposition and their original bands were well preserved (Fig. 6).
The TCS spectrum exhibits the characteristic absorption bands at 1599, 1578, 1508, 1470, 1413, and 1351 cm−1 which mostly appeared as a pair of bands corresponding to C=C stretching of the aromatic ring vibrations . The C–H stretching of TCS that occurred above 3000 cm−1 indicated the multiplicity of weak bonds, and the additional peaks at 910 and 857 cm−1 represent C–H bending . The characteristic strong phenol group (O–H) stretching peak of TCS was observed as broadband at 3313 cm−1, while those between 1200 and 950 cm−1 were for C–O stretching . The noted peak of TCS at 754 cm−1 was assigned to the C–Cl stretching bond [57, 58]. These observed bands were also reflected in the spectrum of the physical mixture of TCS and FLB. On the other hand, the FLB spectrum shows characteristic sharp peaks at 1708 cm−1 and 1212 cm−1 corresponding to stretching of C=O and C–F, respectively, and characteristic broad vibrations in the fingerprint region of 3200–2500 cm−1 due to hydrogen bonding [59, 60]. These bands were also present in the spectrum of blends of the drugs. The benzene ring (C=C) vibrations of FLB between 1580 and 1200 cm−1 was also noted. The vibrations at the lower frequencies in the deformational region were observed in both drugs’ spectrum in their pure and combined forms (Fig. 6). The small C–H stretching at 2948 cm−1 observed in the spectrum of pure TCS was not seen in the spectrum of the physical mixture of the drugs which may be due to the formation of weak intermolecular hydrogen-bonding with FLB.
The FTIR spectra of the physical mixtures of FLB + KP, FLB + PCL, TCS + PCL, and TCS + KP are presented in Fig. 7.
The spectra of the selected excipients displayed their characteristic absorption vibrations in the region between 3600 and 2700 cm−1 due to C–H and O–H stretching vibrations, with a strong broadband at 3430 cm−1 in the case of CS, because of the additional stretching vibrations from N–H bonds [18, 20]. The characteristic strong absorbance peaks of PCL between 3000 and 2800 cm−1 and at 1728 cm−1 due to aliphatic CH2 and carbonyl group (C=O) stretching, respectively, were noted in the spectra of pure PCL and combination forms. KP shows a prominent broad absorption band at 3494 cm+1 due to polymeric O–H stretching and other peaks between 3000 and 2700 cm−1 and at 1474 due to aliphatic CH3 and CH2 stretching and C–O–C stretching, respectively . Interestingly, most of these observed peaks in the individual pure excipients have also appeared in their mixtures with co-excipients and drugs, as displayed in Fig. 7 and Fig. 8.

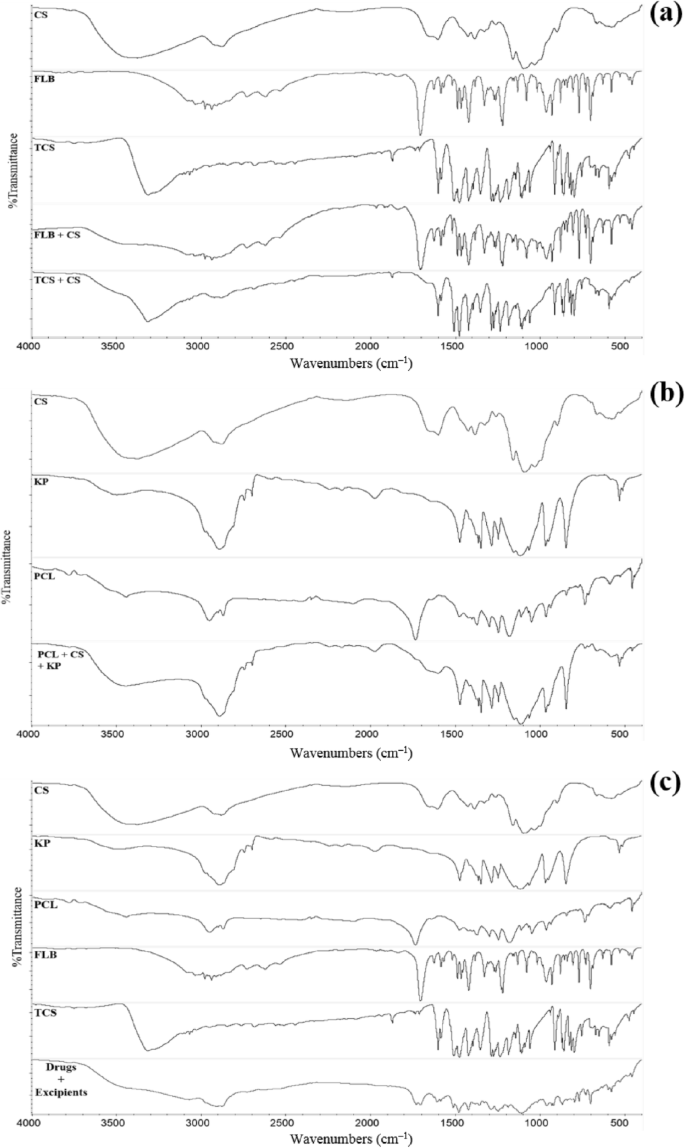

The FTIR spectra of physical mixtures of FLB + CS and TCS + CS (Fig. 8A) and PCL + CS + KP (Fig. 8B) were a simple superimposition of their pure components, thus indicating a lack of interactions. It is important to note that some observed absorption bands of drugs and excipients in the range of 3800–2800 cm−1 which were mainly due to O–H, C–H, C–CH3, and CH2 groups, and NH2 group (in the case of CS) are overlapped. Similarly, the spectra of a physical mixture of drugs and excipients showed characteristic absorption bands of pure TCS, FLB, PCL, CS, and KP (Fig. 8C).
X-ray powder diffraction
The X-ray powder diffraction patterns of the pure components (Fig. 9) of the present study showed major reflections at the 2θ at 7.3, 10.9, 15.9, 20.7, 21.6, 23.8, and 29.7° for FLB; at 8.2, 14.1, 15.5, 16.3, 21.6, 24.5, 25.3, and 29.5° for TCS; at 19.1 and 23.2° for KP; and at 21.5 and 23.8° for PCL.
The XRPD of 1:1 w/w physical mixture of TCS and FLB (Fig. 9) presents all the major diffraction peaks of both APIs. Similarly, the XRPD patterns of the other physical mixtures reflected all the signature reflexes like those of their respective individual pure components.
Furthermore, the diffraction patterns of drugs-excipients mixture, i.e., all the components together (Fig. 9) showed essential peaks exhibited by both API and excipients alone, especially the signature reflexes that confirm the identity of the respective components at diffraction angles of 2θ = 15.4, 24.4, 25.4, and 29.5° (TCS); 7.2, 10.9, 15.6, 20.3, and 29.7° (FLB); 21.5 and 23.9° (PCL); and 19.1 and 23.2° (KP).
Scanning electron microscopy
SEM photomicrographs of TCS (Fig. 10A) and FLB (Fig. 10B) demonstrated that the shape of the particles of both APIs is crystalline, as stated in the United States Pharmacopeia (USP) . It was observed that the particles of TCS are rhombohedral crystals (Fig. 10A), which clearly differed from that observed for FLB, which revealed irregular and mostly orthorhombic crystals (Fig. 10B).
High-performance liquid chromatography
The drug content results are presented in Table 1. For assessing the compatibility, chromatograms of the mixtures were compared with that of the pure components. The chromatograms of the mixtures (Fig. 11) showed a clear separation of the respective components’ peaks, with no addition of peaks that could be associated with degradation products. An overlap of retention time (tR) peaks was observed for the PCL with KP mixture, which was expected since there is only about 0.1 min difference between their tR. However, this overlap did not interfere with the separation of other components or assay of the drugs.
The recoveries and % RSD of all the mixtures with drug content were in the range of 97.0 to 101.8% and 0.2 to 1.6, respectively, which are very much in agreement with that of the respective pure drugs, and also conformed with the assay criterion . Moreover, the established peaks’ parameters (sharpness and symmetry) and tR at 10.1 and 12.5 min for FLB and TCS, respectively, were well maintained, thus corroborating the results of FTIR and XRPD, as well as confirming the compatibility of the selected components.
We carried out compatibility screening based on binary or multiple combination mixtures of the drugs, namely TCS and FLB, with polymers, namely PCL, CS, and KP, to assess their suitability for the development of pharmaceutical nano-formulations.
The visual observations of the samples suggested absence of incompatibility between the selected drugs and excipients as no significant visual changes were observed.
The DSC results revealed that TCS, FLB, and KP exhibited sharp endothermic peaks that are attributable to their respective melting points and indicated their existence in crystalline forms. PCL showed a reasonably sharp melting peak with a moderately broad endothermal effect, suggesting its existence as semi-crystalline substance. CS showed a wide endotherm due to the dehydration process of bound water and its amorphous nature, and this was in agreement with the reported data [20, 38, 39]. The observed broadening, overlapping and shift of peaks toward the lower temperatures, and disappearance of melting peak of FLB in the drugs-excipients physical mixture may suggests the occurrence of some physical interaction but not necessarily an incompatibility. This phenomenon could be as a result of mixing of the components together which in turn reduces their purity and hence their thermal behavior [55, 63, 64]. Another reason for the disappearance of FLB melting peak could be due to its dissolution in the melted TCS, PCL, and KP which have lower melting points than the drug [55, 65]. The shape of DSC peaks and enthalpy may change as a result of a change in the purity of materials under analysis . Therefore, all the observed changes in the endothermic melting peaks could be due to the mixing effect between the components which alter their purity in the mixture and may not necessarily indicate potential incompatibility [15, 63]. However, further analytical investigation such as FTIR is warranted to prove whether any chemical interaction occurred.
FTIR spectroscopy is an essential analytical technique covering a wide range of chemical applications such as compound identification and chemical process monitoring. The technique can discriminate materials according to their type, and it is commonly employed in compatibility screening of APIs with excipients [18, 19, 28, 64]. FTIR spectroscopy study was conducted to find out more information of the physical mixtures and to support the DSC results. All the essential absorption bands for both TCS and FLB in their fingerprint regions were well retained in the FTIR spectra of the physical mixture of the drugs (Fig. 6), thus confirming their compatibility. Contrary to the DSC results which pointed out possible interaction in some mixtures such as FLB + KP, FLB + PCL, TCS + PCL, and TCS + KP, the FTIR profile of these combinations (Fig. 7) reveals characteristic bands of each component. The minor observed changes in these other mixtures, such as intensity reduction, broadening, or slight shift of peaks, may be due to the mixing and dilution effects . An overlap of some peaks was due to location similarity in the same spectral regions. For example, the C=O sharp peak of PCL at 1728 cm−1 has disappeared due to overlapping with the N–H bonds (amide group) bending vibrations between 1700 and 1600 cm−1 . But there was no observed significant change in the absorption bands that corresponded to specific moieties of the individual components of the physical mixtures. There was no appearance of new bands in the spectra of the mixtures, indicating lack of any significant structural changes in all the selected components. Similar observations were reported by Rojek and Wesolowski  and Meira and coworkers  for their drug-excipients compatibility studies. Rojek and Wesolowski  also reported an overlap of absorption bands of excipient (chitosan) and API (atenolol) in the range of 1700–400 cm−1. Therefore, based on the above FTIR results, the selected components were found to be compatible with each other, thus there were no chemical incompatibilities in drug-drug/drug-excipient combinations.
The results of XRPD confirmed the solid-state of all the components, where both APIs were found to be crystalline, PCL and KP were found to be semi-crystalline, while CS was an amorphous solid. Similar diffraction patterns were obtained by other researchers for TCS , KP , FLB, and PCL [60, 67]. Pure CS showed an amorphous XRPD pattern due to its amorphous nature , which was maintained in all of its mixtures with other components. The physical mixture of all the samples (Fig. 9) showed all the major diffraction peaks of each component, thus indicating lack of solid-state interaction between them. The decreased intensity of peaks was attributed to the dilution effect. These XRPD results have suggested compatibility between the selected drugs and excipients for the present study and confirmed the FTIR result.
SEM was performed to examine the physical state of the selected APIs and both of them apparently appeared as crystalline solids, confirming the DSC and XRPD results. HPLC analysis was conducted for all the mixtures with API content to corroborate the DSC, FTIR, and XRPD data and the results confirmed the compatibility of the selected components.
A limitation of this study is the samples’ storage period that was only 30 days. Although 30 days period or less was reported for similar studies in the literature [1, 17, 20, 63], a longer storage period could possibly reveal potential interaction that may occur between the selected components if such exist. Moreover, this study did not involve moisture, hence no revelation on the interaction that may exist under moisture condition. Therefore, it will also be interesting to investigate the compatibility of the tested components by isothermal stress testing method, i.e., under moisture condition and at elevated temperature (50 °C).
For selecting suitable and compatible APIs and excipients for the development of pharmaceutical formulation, drug-drug/drug-excipient/drugs-excipients/excipient-excipient compatibility studies were performed. APIs (TCS and FLB) and excipients (PCL, CS, and KP) compatibility studies were carried out for their physical mixtures by visual observations, DSC, FTIR, XRPD, and HPLC. Following the storage period, the data of TCS and FLB showed that both drugs are crystalline substances, as reported in USP , with a well-defined fusion peak in their DSC curves and sharp X-ray diffraction patterns that were further confirmed by SEM images. PCL exhibited semi-crystalline characteristics in both DSC and XRPD data, while KP revealed a sharp peak in the DSC curve and semi-crystalline behavior in the X-ray diffraction patterns, as previously reported in the literature [36, 37]. Data from DSC and XRPD confirmed the amorphous nature of CS, as reported [38, 68]. These results indicated that the evaluated components did not undergo any physical changes during the study period. HPLC analysis revealed satisfactory recovery of APIs from all mixtures and their clear separation from excipients. The combination of components has not shown any significant physical and chemical instability. Therefore, the results of DSC, FTIR, XRPD, and HPLC studies ruled out incompatibility between all the selected components, hence, could be used for the development of pharmaceutical formulations, especially nano-formulation.
