Preparation, characterization and evaluation of fenofibrate: benzoic acid cocrystals with enhanced pharmaceutical properties

Abstract

Background

Cocrystallization process involved the understanding of interaction at molecular level between two molecules in context to their crystal packing and designing of new solids having improved physicochemical as well as pharmaceutical properties. In the present research, an attempt to increase the aqueous solubility and dissolution rate of a poorly aqueous soluble drug fenofibrate (FB) by formulation and evaluation of its cocrystals with benzoic acid (BZ) as a coformer was carried out.

Results

The drug and coformer were cocrystallized by using the solvent drop grinding method. For prediction of cocrystals formation, CSD (Cambridge Structure Database) software was utilized. Fourier transformation infrared spectroscopy (FTIR), X-ray diffraction (XRD) and differential scanning calorimetry (DSC) techniques were used for analysis of cocrystals. Albino rats were procured from institution as per IAEC guidelines for in vivo anti-hyperlipidaemic studies. The in vitro dissolution profile of cocrystals, pure drug, their physical mixture and marketed formulation was found to be 89%, 39%, 47% and 61%, respectively.

Conclusions

An enhanced anti-hyperlipidaemic activity of cocrystals was found compared to pure drug. The FB: BZ cocrystals also compared to the pure drug showed better dissolution profile and improved in vivo anti-hyperlipidaemic activity in rats. The study proved that cocrystals can promise to improve in vitro dissolution rate of poorly aqueous soluble drugs, which in turn can lead to better in vivo activities.

Background

The cocrystallization process is long known; however, recently it is gaining much attention because of its wider application in pharmaceuticals as a newer technique to transform the physicochemical properties of drugs like solubility, stability, bioavailability, thermostability and many more. The key advantage in cocrystallization is non-modification of pharmacological activity of drug, while their pharmaceutical properties get modified [1]. The designing of cocrystals depends upon hydrogen bonding and potential intermolecular interaction between drug and coformer [2]. FB is currently used as anti-hyperlipidaemic drug, which have a direct effect on lowering the cholesterol, triglycerides and LDL (low-density lipids), VLDL (very-low-density lipids) along with raising the level of HDL (high-density lipids) in blood. It belongs to the group of drugs called ‘fibrate’. The poor aqueous solubility of drug causes low bioavailability and limited permeability through the epithelial membrane [3]. This project work has been designed with purpose to improve the solubility profile of water-insoluble drug FB through its cocrystallization with BZ via the solvent drop grinding method. Different techniques like CSD software were applied to select the suitable coformer along with determination of all possibilities of cocrystals formation [4]. Drug and coformer in a fixed stoichiometric ratio, viz. 1:1, were grinded in mortar and pestle with dropwise addition of ethanol as solvent [5]. The analysis cocrystals were performed by using FTIR, XRD and DSC methods [6]. The in vitro drug release profile of cocrystals was performed in 0.05% SLS (sodium lauryl sulphate) medium and compared with pure drug and marketed formulation [7, 8]. The dissolution study exhibited improved drug release profile of cocrystals (89%) compared to pure drug (39%), their physical mixture (47%) and marketed formulation (61%), respectively. The in vivo anti-hyperlipidaemic activity of cocrystals were performed by using Albino rats (200–250 g), and the results of study exhibited a higher level of control in serum cholesterol, triglycerides, HDL, LDL and VLDL level in comparison with the FB.

Methods

FB was obtained as gift sample from Jubilant Generics (Noida). BZ was purchased from Sigma-Aldrich Chemical Limited and Triton X100 from Sigma-Aldrich Chemical Limited. Solvent drop grinding technique was utilized for the preparation of cocrystals. Disease-free animals were procured from animal house as per IAEC guidelines of concerned institution. The study was approved by Institutional Animal Ethics Committee [Reference no. 1767/GO/Re/S/14/CPCSEA; dated: 15/06/2019]. Owners of the animals have given a written consent to the authors to use the animals for experimental work. Twenty-four Albino rats were kept in four groups having 6 rats in each group. Triton was injected at a dose of (300 mg/kg) intraperitoneal after dissolving it into normal saline to all groups except group I. Control group received intragastrically administration of normal saline, while groups II and III receive intragastrically FB:BZ cocrystals in a dose of 25 mg/kg and 50 mg/kg, respectively. The last group (IV) receive standard FB 50 mg/kg intragastrically. No anaesthetic and euthanasia methods used in this study. Animals were returned to the institutional animal house after experimentation. Cocrystallization technique mainly involves around synthon formation tendency between functional groups of drug and coformer. Lots of techniques and software like CSD, COSMOS-RS techniques are being used to find out these prone functional groups having hydrogen-bonding tendency. FB structure was evaluated and analysed on CSD by using its CSD code ‘TADLIU’. On the basis of CSD software study, no active hydrogen bond donor or acceptor is present in FB molecule. Only halogen (Cl) is active for interaction with other functional groups, while in case of BZ only COOH functional group is present, which could make interaction with another functional group. In this study, it was hypothesized that linkage between halogen functional group of FB and carboxylic functional group of BZ could take place via hydrogen bonding. For the preparation of cocrystals, both drug and coformer were used in a fixed stoichiometric ratio (1:1) and ground with the addition of dropwise ethanol. The grinding process was performed manually with the addition of dropwise ethanol in mortar pestle. Cocrystals were procured after complete evaporation of solvent at room temperature. Spectroscopical study was carried out to find out the absorption maxima (λmax) of FB, which came out to be 229 nm.

In vivo studies

The animal experiments complied with the ARRIVE guidelines. ARRIVE checklist has been attached as Additional file 1.

Result

Characterization of FB, BZ, their physical mixture and cocrystals

For characterization purposes, FB, BZ, FB:BZ physical mixture and cocrystals were used. For the preparation of physical mixture, both FB and BZ were taken in equal amount (100 mg), respectively [9].

DSC analysis

DSC Q10 (V9.9 Build 303, US instrument) was utilized for DSC analysis of pure drug, coformer, their physical mixture and cocrystals. Two milligrams of the sample was used, and these samples were analysed in a closed aluminium pan, and the temperature range for heating was kept between 20 and 160 °C at 10 °C heating rate in the presence of nitrogen gas flow of 60 ml/min. A sharp endothermic peak was obtained for both drug and coformer at 82.64 °C and 126.44 °C, respectively, which exhibits the purity of procured samples (Fig. 1a, b). In the thermogram of the physical mixture of drug and coformer, the corresponding peaks of drug and coformer are absent, instead a sharp peak at 85.60 °C shows the physicochemical interaction of drug with coformer when the temperature of their physical mixture in the DSC pans was increased. This conformed the requirement of solvent during the cocrystallization process. In the DSC thermogram of cocrystals, no other endothermic peaks were present in spite of a sharp endothermic peak at 85.01 °C, which conforms that both drug and coformer have been completely cocrystallized (Fig. 1d).

Fig. 1
figure 1

DSC thermogram of a FB, b BZ, c physical mixture and d cocrystals

FTIR analysis

FTIR (Alpha Bruker 1206 0280, Germany instrument) was utilized for FTIR study of FB, BZ, their physical mixture and cocrystals by using the KBr disc method. For this analysis, the range of spectrum recording was kept between 4000 and 400 cm−1. The characteristic peaks of FB, BZ, their physical mixture and cocrystals as shown in Fig. 2 are explained in Table 1, respectively. The characteristic peaks present in FTIR spectra of FB, viz. C–H stretch (aromatic) at 2984 cm−1, at 1288 cm−1 and 1246 cm−1 for C–O stretch (arylkyl) and 1648 cm−1 for C=O functional group and C–O stretch at 1091 cm−1 along with a halogen compound (chlorine) at 761 cm−1. In case of BZ C–O stretch (acidic) at 1279 cm−1 for carboxylic acid functional group and at 1684 cm−1 for C=O stretch (carbonyl) were found, respectively. The characteristic peak between 3609 and 3794 cm−1 for O–H (free) was observed. Most of these characteristic peaks were also present in their physical mixture with minor peak shifting due to some weak van der Waals forces, viz. 1279 cm−1 for C–O stretch, 1648 cm−1 for C=O stretch and 2992 cm−1 for C–O stretch3. The absence of C–O stretch in spectrum of cocrystals at 2992 cm−1, which was present in physical mixture of both drug and coformer along with shifting of C=O stretch (carbonyl functional group) for BZ at 1684 cm−1 and FB at 1648–1702 cm−1 conformed interaction between drug and coformer [10].

Fig. 2
figure 2

FTIR spectrum of a FB, b BZ, c physical mixture and d cocrystals

Table 1 FTIR data of FB, BZ, their physical mixture and cocrystals

XRD analysis

XRD analysis of FB, BZ, FB: BZ physical mixture and cocrystals was performed by using XRD model ‘XPERT PRO’ instrument with continuous scanning type at angle position (Fig. 3). The XRD spectrum of FB exhibited characteristic peaks at 11.24, 11.86, 14.34, 16.14, 16.61, 19.18, 22.17 and 26.14 having relative intensity of 13.48, 19.80, 44.85, 71.11, 58.71, 32.28, 100 and 32.39, respectively. The XRD spectrum of BZ exhibited characteristic peaks at 7.9682, 8.1026, 16.1232 and 17.1394 having relative intensity of 72.62, 85.34, 62.71 and 100.00, respectively. The XRD spectrum of physical mixture of FB:BZ exhibited characteristic peaks at 8.13, 16.27, 17.20, 19.15, 22.20, 30.12 and 32.89 having relative intensity of 100.00, 35.64,6. 2.36, 6.86, 1.40 and 2.54, respectively. The XRD spectrum of cocrystals exhibited characteristic peaks at 6.27, 8.11, 11.26, 11.85, 14.33, 15.68, 16.60, 20.80, 22.15, 30.58 and 38.77 having relative intensity of 13.36, 100, 24.56, 51.20, 63.27, 59.28, 53.28, 88.91, 81.94, 69.98 and 43.55, respectively. In case of eutectic mixtures, the height of characteristic peaks did not much change, but in case of cocrystals newer peaks get generated, which is evident in the XRD spectrum. But here, the generation of newer characteristic peaks conformed the formation of newer crystalline structure. On the basis of FTIR data and XRD data, it is confirmed that a newer crystalline compound has been generated with improved pharmaceutical and physicochemical properties compared to parent components. The linkage between -COOH functional group of coformer and halogen functional group of drug takes place.

Fig. 3
figure 3

XRD spectrum of a FB, b BZ, c physical mixture and d cocrystals

In Vitro drug release study

For the dissolution study, USP Type II dissolution apparatus (Lab India DS-8000) was used. Forty milligrams of pure FB was used for this study [11]. 0.05% SLS solution was used as dissolution medium for studying the drug release profile of pure drug, marketed formulation and FB:BZ physical mixture. The paddle speed was kept at 50 rpm on 37 ± 0.5 °C temperature for 30 min [7]. Samples (5 ml) were withdrawn and suitable for dilution for spectroscopical evaluation. The dissolution study revealed improved drug release profile of cocrystals compared to pure drug, marketed formulation and FB:BZ physical mixture, respectively. Pure FB exhibited approx. 39% drug release, while marketed formulation, cocrystals and FB:BZ physical mixture exhibited 61%, 89% and 47% drug release, respectively, over 30-min period (Fig. 4).

Fig. 4
figure 4

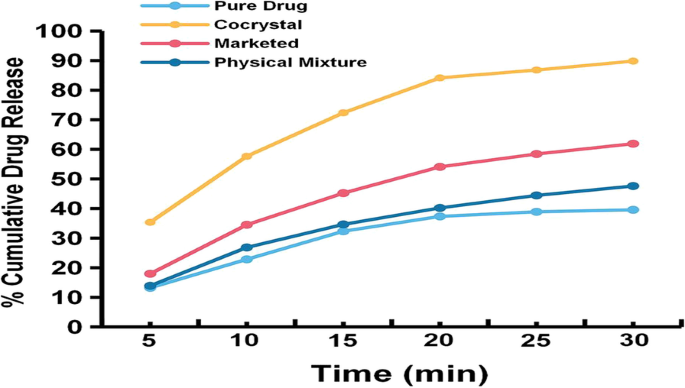

Comparison of drug release study, pure drug exhibited 39% drug release while marketed formulation, cocrystals and physical mixture exhibited 61%, 89% and 47% drug release, respectively, over 30-min period

In Vivo triton-induced anti-hyperlipidaemic study

For in vivo anti-hyperlipidaemic study, Albino rats were starved overnight. The animals were maintained in polypropylene cages in a well-ventilated room, at temperature of 25 ± 1 °C with 12:12-h light/dark cycle. Rats were kept in four groups having six rats in each group. Triton was injected at a dose of (300 mg/kg) intraperitoneal after dissolving it into normal saline to all groups except group I [11]. Control group received intragastrically administration of normal saline, while groups II and III receive intragastrically FB:BZ cocrystals in a dose of 25 mg/kg and 50 mg/kg, respectively. The last group (IV) receive standard FB 50 mg/kg intragastrically (Table 2).

Table 2 In vivo anti-hyperlipidaemic study

At 18 h following triton administration, blood samples were collected from the tail vein and immediately centrifuged [12, 13]. Finally, serum lipid profile was assayed using standard diagnostic kits. The anti-hyperlipidaemic effects of FB and BZ cocrystals on triton-induced anti-hyperlipidaemic rat model are presented in Table 3. The dose of cocrystals in group II was kept half compared to standard drug FB (group IV) and in group III equivalent dose of cocrystals to the standard drug was used (Table 3). There was a gradual increase in serum lipids of rats in the control group. However, in the FB group (50 mg/kg), half dose of cocrystals (25 mg/kg) and full dose of cocrystals group (50 mg/kg) showed a significant reduction in the serum lipids profile (Table 3).

Table 3 Serum lipidaemic data

Discussion

In the DSC thermogram of the cocrystals and physical mixture of drug and coformer, the absence of corresponding endothermic peaks of FB and BZ conformed the complete cocrystallization of drug and coformer. The presence of single endothermic peak in physical mixture was due to cocrystallization of FB:BZ physical mixture due to increased temperature of DSC pan. Due to heating of samples, the moisture content present in the drug and coformer acts as solvent and leads to automatic cocrystallization of drug and conformer, so no trace of extra amount remained non-cocrystallized, that’s why only single endothermic peak was obtained. The onset temperature for melting of cocrystals is 67.30 °C and 71.12 °C for physical mixture. In the FTIR analysis, corresponding characteristic peaks of FB and BZ were present in physical mixture with minor shifting. There was shifting of some characteristic peaks in 1:1 physical mixture of FB:BZ, which might be due to weak van der Waals interactions between FB and BZ. This confirmed that there was no physicochemical interaction between drug and coformer without the addition of any solvent or liquid medium. Most of these characteristic peaks were also present in their physical mixture with minor peak shifting, viz. 1279 cm−1 for C–O stretch, 1648 cm−1 for C = O stretch and 2992 cm−1 for C–O stretch. The hydrogen bonding was conformed by the absence of OH stretch present in BZ spectrum along with shifting of characteristic peak of halogen functional group [3] from 761 to 764 cm−1. In case of XRD analysis, there was minor shifting of characteristic XRD peaks of physical mixture due to minor interactions of FB and BZ molecules during mixing process [3]. Due to hydrogen bonding between carboxylic acid of coformer and halogen functional group [14,15,16] of drug, newer crystal structure has been generated with different crystalline properties. The dissolution study exhibited an increased drug release profile of cocrystals in comparison with the FB, marketed formulation and FB:BZ physical mixture [17]. According to the outcomes of drug release profile study, it was concluded that solubility profile of BCS class-II drugs could be modified through cocrystallization process. In vivo anti-hyperlipidaemic study of cocrystals exhibited the effect in a dose-dependent manner. There was no significant reduction in serum lipids profile found in case of group I rats treated with saline. The results revealed that cocrystals with 50 mg/kg dose [18] significantly reduced the serum lipids followed by standard anti-hyperlipidaemic drug, FB 50 mg/kg (Table 3). Herein, FB and BZ cocrystals have been prepared successfully in fixed stoichiometric ratio (1:1) by using the solvent drop grinding technique [19].

Conclusions

In this study, FB and BZ have been cocrystallized in fixed stoichiometric ratio (1:1) by using the solvent drop grinding technique. The cocrystals exhibited an improved dissolution profile and enhanced in vivo triton-induced anti-hyperlipidaemic rat model based on anti-hyperlipidaemic activity compared to parent pure drug. Further, stability studies, bioavailability studies, toxicological studies, clinical and preclinical testing are required to commercially exploit the advantages of cocrystallization process.
