Recent advances of non-ionic surfactant-based nano-vesicles (niosomes and proniosomes): a brief review of these in enhancing transdermal delivery of drug

Abstract

Background

Hepatic first-pass metabolism and poor therapeutic efficiency at targeted region are the endemic problems of new drug molecules. Thus, comprehensive research has been carried out on the novel vesicular drug delivery systems in nanotechnology from the last few years. These nano-carrier systems have developed to overcome the limitations that are associated with hepatic first-pass metabolism in conventional oral dosage forms and the barrier properties of the lipid bilayer in stratum corneum via transdermal drug delivery for improving the bioavailability of various drugs.

Main body

In recent years, several targeted vesicular drug delivery carriers are developing like liposomes, niosomes, proniosomes, transferosomes, ethosomes, and electrosomes. Among them, niosomes and proniosomes are to be better carriers to increase therapeutic efficiency and bioavailability by reducing the side effects and acting as a promising approach for transdermal drug delivery. Both are non-ionic surfactant-based vesicles and are amphiphilic. This article concisely reviews the possible mechanisms within niosomes and pronisomes to enhance transdermal drug delivery, types, composition, preparation techniques, characterizations, and its applications.

Conclusion

As per the researches done in the formulation of various nano-carrier systems through transdermal approach for the enhancement of bioavailability, it can be stated that the hepatic first pass metabolism can be reduced as well as therapeutic efficiency can be increased by many folds compared to their oral marketed formulations.

Background

The phenomenon of targeting drug delivery systems is to deliver the drug in the body in such a manner that it should show its action to the targeted desired site to achieve the therapeutic response, i.e., where its action should be needed by limiting undesirable interaction to non-targeted tissues. Paul Ehrlich introduced this idea in 1909, and he called this strategy “magic bullets” [1, 2].

In the drug delivery system, although the oral administration route is beneficial but limited due to the hepatic first-pass metabolism that increases undesirable side effects, it reduces the therapeutic efficiency and bioavailability of many drugs in various treatments of diseases [3, 4]. Thereby, transdermal drug delivery system offers an attractive, a non-invasive, and better alternative method to reduce the number of doses, frequency of administration, systemic toxicity, hepatic first-pass metabolism, gastric irritation, unwanted side effects associated with oral, control drug level in plasma for a sustained period for locally and systematically that result enhancing bioavailability, and better patient compliance [5, 6]. Nevertheless, the lipid bilayer of skin that is stratum corneum acts as a very tough diffusion barrier, limiting the permeation of active drug moieties. Novel approaches like nanotechnology have developed in the field of science, which has introduced various targeted novel vesicular drug carrier systems like liposomes, niosomes, proniosomes, ethosomes, and electrosomes. Among these, niosomes and proniosomes have distinct advantages over the other vesicles by acting as drug-containing reservoirs [7, 8]. Liposomes were not preferred as these were composed of concentric phospholipids that make chemically unstable vesicles due to oxidative degradation and rancidification [9].

Main text

Niosomes are the microscopic lamellar structures in an emerging drug delivery system, composed of non-ionic alkyl or polyglycerol etheric surfactant and cholesterol in an aqueous medium. Handjani-vila et al. introduced the class of niosomes [10]. These are amphiphilic, biocompatible, biodegradable, non-toxic materials to encapsulate the medication in vesicles that improve the bioavailability of the drug, therapeutic efficiency, drug penetration through the skin, releases the drug in a sustained and controlled manner, and used to target the desired site by adjusting the composition that helps to reduce the side effects. However, the major drawback is physical instability during storage that causes aggregation, fusion, sedimentation, and leakage of the entrapped drug. This lead to the development of a revolutionary technique of provesicular system called “proniosomes” [11, 12].

Proniosomes are the niosome hybrid of liquid crystalline compact or dry formulated carrier particles coated with non-ionic surface-active agents, converted to niosomal dispersion immediately by hydrating with hot water on gentle agitation before use. These versatile vesicular carriers exhibit a more potential promising approach for transdermal drug delivery and act as vehicles or permeation enhancers via stratum corneum. These are preferred and well documented than other vesicles as it shows more excellent physical and chemical stability, non-toxic, biodegradable, biocompatible, skin permeation ability, prolonged drug release, enhanced bioavailability, and reducing side effects and high reflux. Most of the research innovators agreed that effective drug delivery is achieved through direct contact of these vesicles to the skin [13, 14].

Possible Mechanisms of action of niosomes and proniosomes for transdermal drug delivery

An important requirement for transdermal delivery is that the drug carried by a vehicle should be able to reach the skin surface at an adequate rate and in sufficient amounts. A wide range of applications and several mechanisms have been reported because of their ability to enhance the percutaneous drug delivery to the deeper layer of skin. In general, a permeant applied to the skin has three possible routes across the epidermis. The transcellular route, a lipid domain associated with the proteins inside corneocytes, the intercellular route, and the appendageal route, through hair follicles, via associated sebaceous glands, and sweat ducts. Based on the drug nature, the mechanism of drug transport may be varied [7, 15, 16].

Mechanisms for transdermal enhancement of hydrophilic drugs include (i) increasing drug thermodynamic activity—the encapsulated drug vesicles get adsorbed and fused on to the surface of the skin. Then, a thermodynamic activity gradient is developed, which enhances the diffusion pressure for drug permeation at the surface that acts as a driving force for drug penetration across stratum corneum (sc) [17,18,19]; (ii) modification of surface electrical charge of ionic drugs; (iii) solubilizing of sebum by vesicles to facilitate follicular delivery; and (iv) pore pathway of large water-soluble molecules loaded in niosomes.

Mechanisms for transdermal enhancement of hydrophobic drugs include (i) disruption of lipid bilayer of the stratum corneum (SC)—structural modification of stratum corneum, i.e., the densely packed lipid bilayer, helps to fill up the extracellular spaces by a disruption to enhance the permeation rate; (ii) enhancement of transdermal permeation through nano-sizing; (iii) changing drug partition into skin layers; (iv) hydrating skin and the dilation of the SC intercellular channels—niosomes cause an alteration in the barrier property of stratum corneum, which enhances sc hydration by reducing trans-epidermal water loss, leading to loosening the tightly packed structure and lyses of the membrane by lysozyme and releasing the entrapped drug into the system [20,21,22,23,24,25,26]; and (v) changing the permeation pathway of lipophilic permeants to follicular delivery [27]. The non-ionic surfactants play a crucial role as a penetration enhancer that enters into the intercellular lipids through endocytosis [28, 29]. The possible mechanisms of action to enhance skin penetration are as shown in Fig. 1.

Fig. 1

Possible mechanisms of action of niosomes and proniosomes for skin penetration in topical and transdermal drug delivery. a Release of drug molecules by niosomes. b Niosomes adsorption and fusion with stratum corneum. c Penetration of niosomes through intact sc. d Components of niosomes act as penetration enhancer and increase absorption of drug. e Penetration of niosomes through hair follicles or pilosebaceous units [16]

Structure of niosome

It is a bilayered spherical structure composed of non-ionic surfactant and cholesterol, i.e., as shown in Fig. 2. In this, the non-ionic surfactant is present in such a way that hydrophobic end faces inwards (toward the lipophilic phase). In contrast, hydrophilic end faces outwards (toward aqueous phase), resulting in the closed lipid bilayer that surrounds solutes in the aqueous phase, which appears like the outer and inner surface of the hydrophilic area, that sandwiched lipophilic area in between them [31, 32].

Fig. 2

Schematic representation of structure of niosome [30]

Composition of niosome

Two components are essential to form the vesicle of the niosome.

• A. Cholesterol

  It is a steroid derivative that helps to form a proper shape and rigid structure to niosome [33].

• B. Non-ionic surfactant

The hydrophilic-lipophilic balance (HLB) value of a surfactant is essential in the formation of niosomes. The range of HLB should be between 4 and 8 [34, 35] to produce stable optimum vesicles with high drug compatibility. Various types of non-ionic surfactants with examples are listed in Table 1. In addition to these, charge inducers are also added because they cause repulsions on the surface of vesicles that provide higher zeta potential. Thus, it helps to prevent fusion and enhance vesicle stability [36, 37].

Table 1 Types of non-ionic surfactants

Types of niosomes

Niosomes are categorized into three groups, based upon the size of a vesicle, i.e., as shown in Table 2 and represented in Fig. 3.

Table 2 Types of niosomes

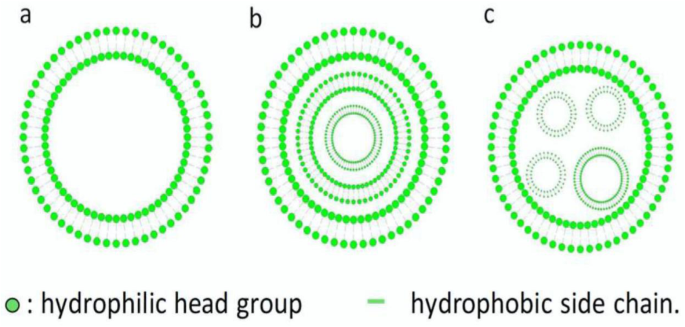

Fig. 3

Different types of niosomes [38]

Advantages of niosomes

• 1. Niosomes have an amphiphilic infrastructure, which provides a wide range of solubility for drug molecules [2].

• 2. It is the dispersion containing water as a vehicle that offers more patient compliance than oily preparations [10].

• 3. It enhances the skin penetration of medicament and improves the oral bioavailability of poorly soluble drugs [39].

• 4. These can be taken via oral, parenteral, topical, and transdermal routes of applications [40].

• 5. Niosomes are safe as they composed of biocompatible, biodegradable, and non-toxic materials [41].

• 6. These vesicle formulation characteristics are variable and controllable by altering the composition, dimension, lamellarity, surface load, and concentration [42].

• 7. This vesicle can act as a depot, and drug release from the closed bilayer structure may be controlled to the target site [43].

• 8. Due to the chemical stability of their structural composition, handling and storage conditions do not require special conditions.

• 9. These are osmotically active and stable and have longer shelf-life.

• 10. It protects the drug from enzymatic degradation [44].

• 11. Highly economical for large-scale production.

Disadvantages of niosomes

• 1. Due to the dispersion form of niosomes, there may be a chance to sediment, accumulate, fuse, or leakage the entrapped drug during storage [45].

• 2. Some of the formulation techniques are time-consuming and require special equipment.

• 3. During the process of hydration, there may be a chance of incomplete hydration of surfactants [46].

Factors governing vesicle formation

• (a) Drug

  The physicochemical properties of encapsulated drugs can influence the rigid bilayer structure, vesicle size, and charge on the surface of noisome. By interacting with the solute and surfactant head group, the entrapped drug may enhance the charge and mutual repulsions that result in the large size of the vesicle [47].

• (b) Type of surfactant

  Generally, ether types of surfactants are more favorable than ester forms, as these are quickly degraded and became unstable in vivo. The structure of the surfactant is as shown in Fig. 4.

Fig. 4

Schematic representation of structure of surfactant [48]

• i. Hydrophilic-lipophilic balance (HLB)

  It indicates the solubility of the surfactant, which is a dimensionless parameter [49]. The lower the HLB value indicates the more lipophilic nature of surfactant and vice-versa. It also influences the entrapment efficiency of the drug molecule in niosomes.

• ii. Critical packing parameter

  It influences the geometry of vesicles. Based on the surfactant’s critical packing parameter (CPP) value, it is possible to predict the shape of the nanostructure [50, 51]. It depends upon the symmetry of surfactant and can be calculated by using the following equation:

  $$ \mathrm{CPP}=v/\mathrm{lc}\times {a}_0 $$

  where v is the hydrophobic group volume, lc is the critical hydrophobic group length, and a_ο is the area of hydrophilic head group.

  Based on the CPP value, the state and structure of vesicles are varied and is as shown in Fig. 5.

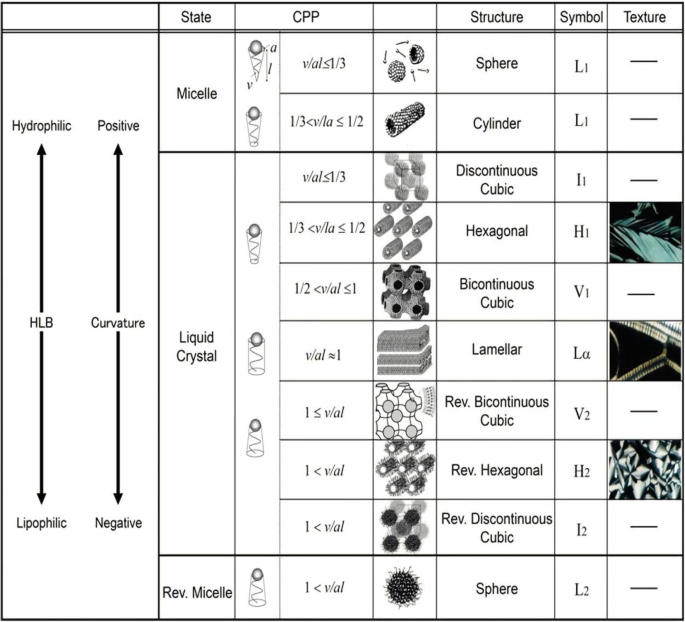

Fig. 5

Self-assembly structures formed in surfactant systems, and their relationship between the structure and three parameters, CPP, HLB and interfacial curvature [52]

• (c) Membrane composition

  Niosomes can be stabilized through the addition of various additives to the mixture of surfactant and drug. Additives like cholesterol influence the permeability of vesicle [53]. If the membrane has more cholesterol content that results in a more rigid vesicle structure and helps to reduce the leakage of the drug, it improves entrapment efficiency.

• (d) Method of preparation

  The size of the vesicle is varied depending on the preparation method. Thus, it influences the entrapment efficiency and release of drugs from the vesicle.

• (e) Temperature of hydration

  It influences the shape and size of the niosome. The temperature of the system should be above the gel to liquid phase transitional temperature for ideal conditions. Along with these, the time of hydration and hydration medium volume are also critical parameters because improper hydration results in fragile niosomes or create leakage of the drug [54].

• (f) Resistance to osmotic stress

  It influences the diameter of vesicles. The addition of hypertonic salt solution results decreases in the diameter of the vesicle, whereas hypotonic salt solution causes slight swelling.

• (g) Charge

  The size, stability, and volume within niosomes are altered by charge inducing agents. The interlamellar distance between successive bilayer increases because of the presence of a charge in a multilamellar vesicle structure that contributes to the higher total volume [55].

Preparation methods of niosomes

Preparation methods will affect the number of bilayers, size distribution, dimensions, and entrapment efficiency [56, 57].

General procedure

Handjani–Vila method

A mixed equivalent amount of cholesterol and surfactant (lipid mixture) in an aqueous phase containing active substance, agitated for a few minutes to get homogeneous lamella phase. Then, homogenize at a controlled temperature by using ultra-centrifugation or employing ultra-sonicator that resulted in the formation of noisomes [58]. Baillie AJ et al. [59] have reported the preparation and properties of niosomes-non-ionic surfactant vesicles by using this method.

• A. Preparation of small unilamellar vesicles

• i. Sonication method

  It is the conventional method to produce small uniform size niosomes. This process includes mixing an aliquot of drug solution with a lipid mixture of surfactant and cholesterol and subjected to sonication by using titanium probe at a temperature of 60 °C for 3 min to get niosomes. Pando D et al. [60] have successfully reported the preparation and characterization of niosomes containing resveratrol by using this method.

• ii. Micro fluidization method

  This method involves the submerged jet principle (Fig. 6). The two fluidized streams interact at ultra-high velocities, in precisely defined microchannels within the interaction chamber. The impingement of thin liquid film along a joint front is arranged; thereby, the energy supplied to the system remains within the area of formation of niosomes. That resulted in a smaller uniform size, reproducible niosomes. It is reported that Obeid MA et al. [61] successfully prepared non-ionic surfactant vesicles using microfludics device NanoAssemble for the purpose of delivering therapeutic siRNA into cancer cells (Fig. 7).

Fig. 6

Schematic diagram of the preparation of niosomes via sonication method [36]

Fig. 7

Schematic diagram of the preparation of niosomes via micro fluidization method [2]

• B. Preparation of large unilamellar vesicles

• i. Ether injection method

  The initial step in this preparation is to dissolve surfactant in diethyl ether and inject it into an aqueous phase containing a drug, which was at 60 °C through 14 gauge needles. Subsequently, ether was vaporized and resulted in single layer vesicles with a diameter ranging from 50 to 1000 nm. Here, the drawback is that it is difficult to remove the small amount of ether, i.e., still present in the vesicle [62, 63]. Singh CH et al. [64] has successfully formulated, characterized, and performed in vitro evaluation of niosomes containing nimesulide.

• ii. Reverse phase evaporation method

  Weighed surfactant and cholesterol in a 1:1 ratio and dissolved in chloroform and ether mixture (Fig. 8). To this mixture, aqueous phase containing drug was added and followed by sonication at a temperature of 4–5 °C; a small quantity of phosphate buffer saline was added and continued to sonicate. Then the organic solvent is removed by applying it to low pressure at 40 °C after that remaining suspension is diluted with phosphate buffer saline. The final product of the niosomes was obtained by heating the mixture at 60 °C for 10 min [65]. Zarei M et al. [66] have successfully loaded niosomes with Paclitaxel via this method.

Fig. 8

Schematic diagram of the preparation of niosomes via ether injection method [2]

• C. Preparation of multilamellar vesicles

• i. Thin film hydration technique (hand shaking method)

  In a round bottom flask, the mixture of cholesterol and surfactant was dissolved in a volatile organic solvent (diethyl ether, chloroform, or methanol) (Fig. 9). Then, remove the solvent by using a rotary evaporator at room temperature (20 °C) that leaves a thin film of the solid mixture on the flask’s walls. This dried film is rehydrated with the aqueous phase by gentle agitation at 0–60 °C resulting in the formation of niosomes [68]. Chandraprakash et al. [69] entrapped methotrexate in niosomes using lipophilic surfactants like span 40, span 60 and span 80, cholesterol, and di-cetyl phosphate in ratio of 47.5:47.5:5. It was reported that the tissue distribution of methotrexate was improved after entrapping into niosomes.

Fig. 9

Schematic diagram of the preparation of niosomes via reverse phase evaporation method [67]

• ii. Transmembrane pH gradient (inside acidic) cycle of drug absorption (remote charge)

In a round bottom flask, the mixture of cholesterol and surfactant was dissolved in chloroform (Fig. 10). Then remove the organic solvent by using a rotary evaporator at room temperature (20 °C) that left a thin film of the solid mixture on the walls of the flask, which rehydrates with 300 mM citric acid (pH 4.0). Further, subjected to 3 successive freeze-thaw cycles and sonicated. To this, adding the aqueous drug solution and vortexes increased the pH 7.0–7.2 by adding disodium phosphate (1 M) and subjected to heating for 10 min at 60 °C to obtain noisome [70]. Bartelds et al. [71] studied the niosomes of varying composition and did a comparative study of niosomes with liposomes. In their study, they found that freeze and thaw cycle shrinks the niosomes prepared using unsaturated surfactants. They also found that the entrapment efficiency of niosomes was reduced.

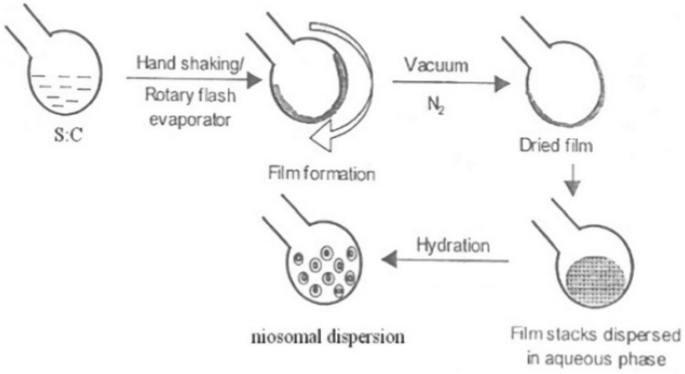

Fig. 10

Schematic diagram of the preparation of niosomes via thin film hydration technique (hand shaking method) [2]

• D. Miscellaneous methods

• i. Multiple membrane extrusion method

It is a good method to produce small size niosomes (Fig. 11). In this, the mixture of surfactant, cholesterol, diacetyl phosphate, and chloroform is evaporated, leaving a thin film and rehydrated with the aqueous drug solution. The resultant dispersion extruded through a polycarbonate membrane, then placed in a series of up to 8 passages to obtain niosomes. Rogerson AC et al. [72] studied the distribution of doxorubicin in mice following administration in niosomes.

Fig. 11

Schematic diagram of the preparation of niosomes via Trans membrane pH gradient (inside acidic) drug uptake process (remote loading) [15]

• ii. Lipid injection method

  The mixture of surfactant and lipids melted and injected into a hot aqueous drug solution to get niosomes (Fig. 12). The inclusion of drugs in lipids by melting is an alternative method. Kremer J et al. [73] have prepared vesicles of variable diameter by a modified injection method.

Fig. 12

Schematic diagram of the preparation of niosomes via multiple membrane extrusion method [36]

• iii. Emulsion method

It forms niosomes by using oil in water emulsion, which was prepared by adding an organic solution of surfactant and cholesterol to the aqueous drug solution. Yoshioka et al. [74] formulated a range of vesicle-in water-in-oil (v/w/o) emulsion from niosomes made from Spans (Span 20, Span 40, Span 60, Span 80) dispersed in an oil (octane, hexadecane, isopropyl myristate). They reported that the release of carboxyfluorescein is slower than vesicle suspensions and w/o emulsion; the release was affected by the HLB value of the surfactant, nature of oil, and temperature of dialysis media. This system has potential for use in drug delivery or as a vaccine vehicle.

• iv. The “bubble “method

It is a novel technology to get niosomes in one step without adding an organic solvent (Fig. 13). This method contains a “bubbling unit” having round-bottomed flask with three necks, i.e., positioned in a water bath. Water-cooled reflex, thermometer, and nitrogen gas suppliers are positioned in first, second, and third necks, respectively. In this, surfactant and cholesterol are mixed in the buffer and then homogenized and “bubbled” at 70 °C in a “bubbling unit” to obtain niosomes. Talsma H et al. [75] have reported the one-step preparation of liposomes and nonionic surfactant vesicles without the use of organic solvents.

Fig. 13

Schematic diagram of preparation of the niosomes via emulsion method [15]

Formulation of niosomes from proniosomes

Nowadays, these provesicular drug carrier systems are more beneficial than conventional niosomes (Fig. 14). These are converted into niosomes by naturally hydrating it with the hot aqueous medium, before use or by hydration of skin itself after application.

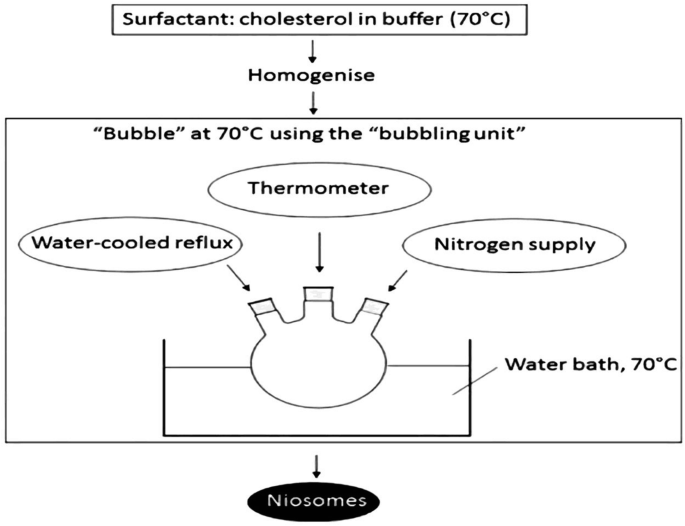

Fig. 14

Schematic diagram of the preparation of niosomes via “bubble” method [31]

Types of proniosomes

This exits as two forms.

• 1. Dry granular proniosomes

These are dry powder in nature; based upon the carrier that is used in the preparation, and it again involves sorbitol and maltodextrin-based proniosomes [32].

• 2. Liquid crystalline proniosomes

These are gel form of proniosomes that mainly used for transdermal drug delivery systems [77] (Table 3).

Table 3 Materials used for the preparation of proniosomes

Advantages of proniosomes

• 1. Avoid physical stability problems like fusion, sedimentation, and drug leakage during storage.

• 2. Prevent the hydrolysis of embedded drugs that inhibit the dispersion’s durability.

• 3. Proniosomes does not show any problems during sterilization and shipping process.

• 4. Biocompatible, biodegradable, and non-immunogenic.

• 5. Simple handling and storage conditions [78].

Methods of preparation of proniosomes

These are prepared by three methods, as shown in Fig. 15.

Fig. 15

Schematic representation of the preparation of proniosomes [79]

• I. Slurry method

Cholesterol and surfactant were mixed in a suitable solvent and transferred into a round-bottomed flask containing the drug and carrier mixture. Add an excess amount of solvent if the surfactant is not loaded correctly, then the solvent was evaporated at 600 mmHg pressure at 50–60 °C in a rotary evaporator under vacuum, resulting in a free-flowing powder of proniosomes, mixed with a suitable gelling agent to get the proniosomal gel [79,80,81,82]. Madni et al. [83] formulated the proniosomes by quick slurry method using maltodextrin (carrier), Span 60 (nonionic surfactant), and cholesterol (stabilizer). They reported that proniosomes have been shown to be promising candidates for topical delivery of pentazocine.

Advantages

• a. It protects the drug and surfactant from oxidation and hydrolysis.

• b. Surfactant coating is thinner due to the high surface area that makes the rehydration process more efficient.

Disadvantages

• a. As the preparation utilizes specialized equipment using vacuum and nitrogen gas, that makes the process time-consuming.

• II. Slow spray coating method

Weighed the required quantity of carrier material into a round bottom flask and kept it in a rotary evaporator. Then surfactant and cholesterol are mixed and sprayed on to the carrier and evacuate under 65–70 °C for 20 min in a water bath. Continue the evaporation process till to get free-flowing proniosomal powder [84,85,86,87,88]. Ravaghi et al. [89] have preparated and characterized the proniosomal powder of natural canthaxanthin using this method.

Advantages

• a. It is a simple method.

Disadvantages

• a. If the coating to surfactant solution was applied too quickly, that results in degradation and sample would become slurry.

• b. The encapsulation efficiency of a drug may be affected by the carrier [67].

• III. Coacervation phase separation method

In this, proniosomal gel is formed by mixing the weighed quantities of surfactant, cholesterol, lecithin, drug, and a small quantity of organic solvent in a full mouth glass tube, subjected to heating at 60 °C for a few minutes to dissolve surfactant completely. Close it with a lid to prevent the loss of solvent. Then, hydrate it with the aqueous phase and continue the heating for a few minutes till it cleared to get a clear solution, and then it is cooled to room temperature to get gel form. Niosomes are formed by hydrating the gel with a little amount of aqueous medium [74, 90,91,92]. Vora B et al. [93] have prepared proniosome-based transdermal delivery of levonorgestrel for effective contraception.

Advantages

a. Specialized equipment is not needed.

b. Easy process and time-saving method.

c. Adopted for the preparation of gel [38].

Characterization of vesicles

• 1. Bilayer formation and number of lamellae

X-cross formation is used to characterize the bilayer formation. Electron microscopy, small-angle X-ray scattering, and NMR spectroscopy are used to characterize the number of lamellae [94].

• 2. Membrane rigidity and homogeneity

Probe fluorescence by using the function of temperature used to determine the membrane rigidity. Differential scanning calorimetric (DSC), P-NMR, FTIR, and fluorescence resonance energy transfer (FRET) are used to determine the membrane homogeneity [16, 95, 96].

• 3. Vesicle size and morphology

Light microscopy is used to determine the shape of the vesicle and its size distribution, whereas the coulter counter method determines the niosomal (less than 1 μm) distribution volume in dispersion. Differential light scattering techniques are used to know the size of the vesicles of sub-micron [97]. Electron microscopic analysis such as transmission electron microscopy (TEM) and freeze-fracture techniques analyze the number of bilayers but is not used to determine the size of niosomes. Scanning electron microscopy (SEM), atomic force microscopy, and cryo-TEM are used to give information regarding the shape and surface of niosomes like roundness, smoothness, and aggregates [98]. Further, a photon correlation spectroscopy or particle size distribution analyzer is used to determine the mean size and polydispersity index.

• 4. Vesicle charge

Zeta potential is used to determine the charge of niosomes. In general, charged niosomes are more stable against aggregation, fusion than the uncharged [99]. Micro electrophoresis, dynamic light scattering, and pH-sensitive fluorophores are the alternative methods to determine the charge of the vesicle.

• 5. pH

It determined by using the pH meter [32].

• 6. Rate of hydration (spontaneity)

Neubauer’s chamber is used to determine the number of niosomes formed after hydrating the proniosomes for 15 min [2, 5, 11].

• 7. Angle of repose

For the dry powder form of proniosomes, the angle of repose is determined by the funnel method. Fix the funnel in a specific position such that the funnel’s 13-mm outlet orifice should be 5 cm above from the bottom surface. Pour the powder from the funnel to form a cone shape, thereby determining the angle of repose by measuring the base diameter and cone height [13].

• 8. Drug content

It is determined by weighing the equivalent amount of drugs from preparation, is added to the organic solvent, and stirs it for a specific time. Then filter the solution with suitable dilutions and measure the absorbance at a specific wavelength by using UV-Spectroscopy [100]. Calculate the drug content from the following equation:

$$ \mathrm{Drug}\ \mathrm{content}\;\left(\%\right)=\mathrm{actualdrug}\ \mathrm{content}/\mathrm{theoretical}\ \mathrm{drug}\ \mathrm{content}\times 100 $$

• 9. Entrapment efficiency and drug loading

The unentrapped drug in niosome formulation can be separated by using either a dialysis method or gel filtration or centrifugation method. In the centrifugation method, a specific amount of niosomal dispersion is subjected to cold centrifuge (4 °C) at a specific speed (rpm) for a particular time. Then remove the supernatant liquid from Eppendorf tubes. Resuspend the settled product and again subjected to centrifuge, then remove the unentrapped drug with no void volume by washing it twice, and an assay of free drug determined by measuring the absorbance at a specific wavelength by using UV-spectroscopy [101]. Calculate the entrapment efficiency and drug loading from the following equations:

$$ \mathrm{Entrapment}\ \mathrm{efficiency}\left(\%\right)=\mathrm{Total}\ \mathrm{entrapped}\ \mathrm{drug}-\mathrm{unentrapped}\ \mathrm{drug}/\mathrm{Total}\ \mathrm{entrapped}\ \mathrm{drug}\times 100 $$

$$ \mathrm{Drug}\ \mathrm{loading}\left(\%\right)=\mathrm{Amount}\ \mathrm{of}\ \mathrm{drug}\ \mathrm{in}\ \mathrm{niosomes}/\mathrm{amount}\ \mathrm{of}\ \mathrm{niosomes}\ \mathrm{recovered}\times 100 $$

• 10. In vitro drug release

It is characterized by the following two methods [102, 103].

• a. Dialysis method

In this, the dialysis membrane or sac is soaked in the hot aqueous medium before experimenting with opening the pore of the membrane. Then the dialysis bag is filled with dispersion of noisomes and tied both ends, then placed on the beaker containing a specific volume of buffer on a magnetic stirrer at a specific speed and 37 °C temperature. Aliquots of niosomes containing drug samples were withdrawn at certain time intervals and replaced the same volume of fresh medium to maintain the sink conditions. Check the absorbance at a specific wavelength by using UV-spectroscopy.

• b. Franz diffusion cell

It consists of a donor and receptor compartment. Niosomal dispersion is placed over the donor, and the receptor filled with buffer. In between these compartments, a cellophane membrane is placed, and this whole assembly is kept on a magnetic stirrer with a certain speed (rpm) at 37 °C. Aliquots of drug samples were withdrawn at certain time intervals and replaced the same volume of fresh medium to maintain the sink conditions. Check the absorbance at a specific wavelength by using UV-Spectroscopy.

• 11. Drug release kinetics and drug analysis

In vitro, the drug release date is fitted into various kinetic equations to understand the mechanism of drug release by determining the correlation coefficient and “n” value.

• a. Zero-order, as cumulative % drug release vs. time

• b. First- order, as log cumulative % drug retained vs. time

• c. Higuchi’s model, as cumulative % drug release vs. square root of time

• d. Peppa’s model, as log cumulative % drug release vs. log time and determine the “n” value from slope [52]

• 12. In vivo studies

It is carried out on male albino rats of weight 150–200 g. After the administration of niosomal preparation, aliquots of blood samples were withdrawn and subjected to centrifuge, and HPLC or UV spectroscopy analyzes drug content. El-Nabarawi MA et al. [104] have successfully prepared Natamycin niosomes as a promising ocular nanosized delivery system with ketorolac tromethamine for dual effects for treatment of candida rabbit keratitis.

• 13. Stability studies

According to the ICH guidelines of accelerated stability studies, the niosome dispersion placed at refrigerator (4 ± 2 °C), room temperature (25° or 37 ± 2 °C) and elevated temperature (40 ± 2 °C and 60 ± 5% RH) for 3 months. Check the entrapment efficiency, in vitro drug release, and morphological characters at 0, 1, 2, and 3 months intervals. Observe if there are any variation or stability problems.

Applications of niosomes

These are potentially applicable to many pharmacological agents to show their actions against various diseases [105,106,107,108].

• A. Leishmaniasis

It is a type of parasitic disease to the liver and spleen cells in which the infecting organism resides. These are used for the treatment of diseases in the organs of the reticuloendothelial system in which the infecting organism resides. Pardakhty et al. [109] reported that positively charged niosomes entrapped with autoclaved Leishmania major against cutaneous leishmaniasis has a moderate effect and it successfully delayed the development of lesions in the BALB/c mice.

• B. Carrier for hemoglobin

Niosomes used as hemoglobin carriers. Dispersion of niosomes reveals an overlapping visible spectrum of free hemoglobin. Compared to non-encapsulated hemoglobin, the dissociation curve can be modified as these vesicles are permeable to oxygen and hemoglobin. Patil S et al. [110] have studied the surface-modified mesoporous ceramics as delivery vehicle for hemoglobin.

• C. Delivery of peptide drugs

The oral delivery of 9-desglycinamide and 8-arginine vasopressin in an in vitro intestinal loop model was investigated, and stability of peptide significantly increased was reported by Yoshida et al [111].

• D. Immunological applications

The nature of the immune response caused by antigens was studied using niosomes. Brewer and Alexander [112] have reported niosomes as potent adjuvant in terms of immunological selectivity, low toxicity, and stability.

• E. Targeting to bioactive agents

• i. To reticulo-endothelial system

The reticulo-endothelial system (RES) cells take the vesicle ideally. The absorption of niosome by the cell is also achieved through the circulating serum factors known as opsonins, which makes them apparent. Nevertheless, this localized medicine build-up was used for the treatment of tumors that are likely to metastases the liver and spleen for a parasitic liver infection.

• ii. To the organs other than RES

These carriers help to guide antibodies to specific locations in the body. Immunoglobulins seem to quickly bind on the lipid surface, providing a natural means for the drug carriers targeting. Most cells can identify and bind different carbohydrate determinants, which can be used in the framework of direct actions. Arora S et al. [113] have studied the unique vesicular drug carriers.

• F. Transdermal delivery of drugs through niosomes and proniosomes

The major drawback of transdermal drug delivery is the slow penetration through the skin. Transdermal drug delivery system of niosomes and proniosomes has led to increasing the penetration rate thereby enhancing therapeutic efficiency and bioavailability of the drug (Table 4).

Table 4 Summary of recent niosomal and proniosomal developed formulations for transdermal delivery

• G. Other applications

• i. Sustained release

Azmin et al. [121] suggested the role of liver as a depot for methotrexate after niosomes are taken up by the liver cells. The niosomes containing a substance with low therapeutic indices and low water solubility can be released continuously because those can be retained by niosomal encapsulation in the circulation.

• ii. Localized drug action

It enhances the effectiveness of the drug’s ability and reduces its toxic systemic effects. Conacher M and Alexander J [122] have studied the niosomes as immunological adjuvants. Its approach is to deliver localized drug action through niosomes. These vesicles make the drug confined at the site of administration because of their size and low penetrability through the epithelium and connective tissues.

Comparison of liposomes and niosomes /proniosomes

Table 5 shows the comparison of liposomes and niosomes /proniosomes.

Table 5 Comparison of liposomes and niosomes/proniosomes [42, 46, 47]

Marketed products

Table 6 shows the products available in the market.

Table 6 Products available in market

Conclusion

The transdermal drug delivery system was found to be an effective way to overcome the problems associated with conventional oral dosage forms such as poor bioavailability, frequency of high dosing, and untargeted drug action. But the stratum corneum acts as a tough barrier that reduces the drug permeability followed by the bioavailability of hydrophilic drugs and large molecules. Further investigations in recent years have led to the development of a new versatile non-ionic surfactant-based vesicular approach for efficient drug delivery through the skin such as niosomes and proniosomes. These vesicles have explored with a wide range of applications in the delivery of anti-inflammatory (Ammonium glycyrrhizinate [124]), anti-cancer (Vincristine [125]), anti-viral (Tenofovir [126]), etc., by reducing side effects, enhancing penetration of drugs through skin and bioavailability. This review explains brief information regarding their structure, composition, advantages, disadvantages, their role as percutaneous permeation enhancer, and their recent applications in transdermal drug delivery. They have a promising approach to deliver the drug in a controlled and sustained manner. These do not require any special handling and storage conditions. Further exploration and research need to be developed on the niosomal and proniosomal preparations, which help to be available the products commercially.
