Development and validation of a stability indicating green analytical method for the simultaneous estimation of l-glutathione, n-acetyl l-cysteine and Vitamin C in marketed formulation using UV–visible spectroscopy
Future Journal of Pharmaceutical Sciences volume 9, Article number: 74 (2023)
An efficient ultraviolet spectrophotometric method has been devised for the simultaneous analysis of l-glutathione, n-acetyl l-cysteine and Vitamin C in combined tablet dosage forms. This method is characterized by its simplicity, rapidity, precision, accuracy and cost-effectiveness. It employs the simultaneous equation method to determine the concentrations of l-glutathione, n-acetyl l-cysteine and Vitamin C.
The concentration range of 50–250 μg/mL for l-glutathione, 15–75 μg/mL for n-acetyl l-cysteine and 2–10 μg/mL for Vitamin C demonstrated linearity in this study. The simultaneous equation method was employed to determine the drug concentrations. The average recovery rates were found to be 99.94 ± 0.61% for l-glutathione, 100.90 ± 0.96 for n-acetyl l-cysteine and 99.81 ± 0.58% for Vitamin C. Stability studies were performed under various stress conditions.
The method employed in this study was observed to possess qualities of simplicity, accuracy and precision, making it suitable for the simultaneous determination of l-glutathione, n-acetyl l-cysteine and Vitamin C in pharmaceutical tablet dosage forms. The analysis results were statistically validated and supported by recovery studies and stability studies, further enhancing the credibility of the method.
Green analytical chemistry (GAC) is an emerging field that focuses on developing analytical methods that are environmentally friendly, safe and sustainable. GAC seeks to reduce the negative impact of analytical chemistry on the environment while maintaining high analytical performance. In this context, the current study aims to develop and validate a green analytical method for the simultaneous estimation of l-glutathione, n-acetyl l-cysteine and Vitamin C in marketed preparations. The method employs solvents which are considered green solvents due to their low toxicity and environmental impact. The use of these solvents in the method development and validation will help reduce the overall environmental impact of the analytical process while maintaining high-quality analytical results. This study serves as an important step toward achieving the goal of sustainable analytical chemistry. l-glutathione (GSH), n-acetyl l-cysteine (NAC) and Vitamin C (Vit C) are available in a combined pharmaceutical dosage form for the prophylaxis of melasma and vitiligo. l-glutathione (GSH) chemically is (2S)-2-amino-5-[[(2R)-1-(carboxymethylamino)-1-oxo-3-sulfanylpropan-2-yl] amino]-5-oxopentanoic acid (Fig. 1a). l-glutathione is a tripeptide comprises of three amino acids: l-glutamate, l-cysteine and glycine. Its chemical formula is C10H17N3O6S. l-glutathione is an important antioxidant in the body, and it plays a critical role in maintaining cellular health and protecting cells from oxidative damage . n-acetyl l-cysteine (NAC), chemically is (2R)-2-(acetylamino)-3-sulfanylpropanoic acid (Fig. 1b). n-acetyl l-cysteine (NAC) is a compound that is derived from the amino acid l-cysteine. It is a precursor to the antioxidant glutathione, which plays an integral role in protecting cells from damage and oxidative stress. NAC is commonly used as a dietary supplement and is also used as a prescription medication to treat various medical conditions . Vitamin C (Vit-C) chemically is (5R)-[(1S)-1,2-dihydroxyethyl]-3,4-dihydroxyfuran-2(5H)-one (Fig. 1c). Vitamin C, also known as ascorbic acid, is a water-soluble vitamin that is essential for human health. It also acts as an antioxidant, helping to protect cells from damage caused by free radicals and other reactive molecules.
The literature survey reveals that there exists some conventional analytical method development of these drugs individually through HPLC [3,4,5,6,7,8,9,10,11,12], UV [13,14,15] and HPTLC [16, 17]. The conventional methods as discussed are more time-consuming and the solvent consumption is too high. UV spectrophotometry is used due to its precise, robust and minimum solvent consumption making it suitable for analysis of the drugs.
A detailed review of the literature concludes that there subsists the need of developing an analytical method development for the simultaneous estimation of l-glutathione, n-acetyl l-cysteine and Vitamin C in bulk and marketed dosage form as no such method is reported until now.
Working standards of l-glutathione and n-acetyl l-cysteine were obtained as a gift sample from Medimax Pharmaceuticals, Amritsar, India, and Vitamin C was provided by Jackson Laboratories Pvt. Ltd., Amritsar. Fixed dose combination tablet “Orange packets” containing l-glutathione 600 mg, n-acetyl l-cysteine 400 mg and Vitamin C 40 mg was purchased from a local pharmacy in Jalandhar, Punjab, India. All the chemicals were of analytical grade and purchased from SD Fine Chem Ltd. Distilled water was used throughout the experiment which was generated in-house.
Instrumentation and method
Double-beam UV–visible spectrophotometer (Shimadzu UV-1900i), Shimadzu Corporation, was used for all absorbance measurements with matched quartz cells.
Identification and characterization of drugs
The sample concentration in KBr should be between 0.2 and 1%. The pellet is prepared by mixing the drug with the KBr; after that, the plate will be placed in the IR spectrometer.
Analytical method development
Preparation of 0.1N KOH
5.6gm of KOH was accurately weighed and transferred into 1000-ml volumetric flask. Approximately 150 ml of distilled water was added to dissolve the KOH; then, volume was made up to the mark using distilled water.
Preparation of stock solution of l-glutathione
10 mg of l-glutathione was accurately weighed, transferred into a 10-ml volumetric flask and dissolved using a small amount of 0.1 N KOH, and then, the volume was made up using distilled water.
Preparation of stock solution of n-acetyl l-cysteine
10 mg of n-acetyl l-cysteine was accurately weighed, transferred into a 10-ml volumetric flask and dissolved using a small amount of 0.1 N KOH, and then, the volume was made up using distilled water.
Preparation of standard stock solution of Vitamin C
10 mg of Vitamin C was accurately weighed, transferred into a 10-ml volumetric flask and dissolved using a small amount of distilled water, and then, the volume was made up using the same.

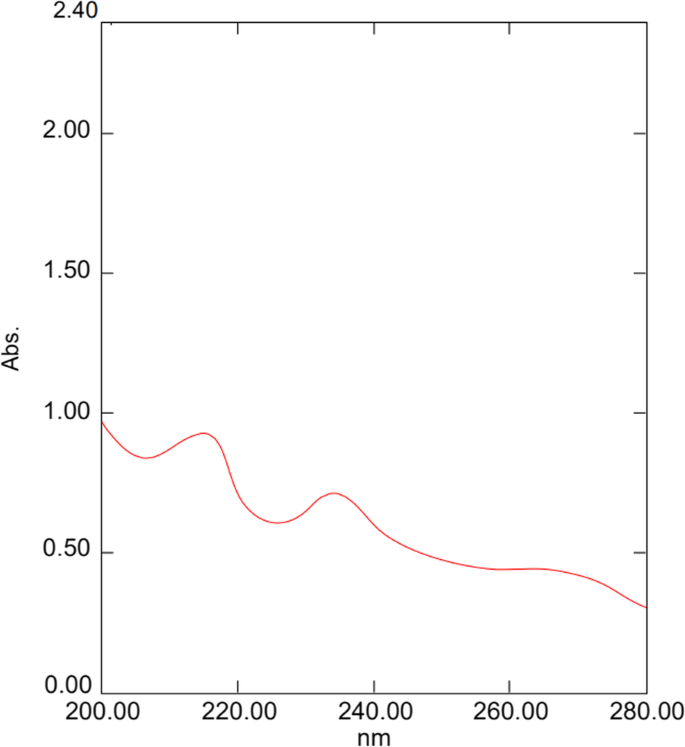

Determination of isosbestic point
At a concentration of 10 µg/ml, all three drugs were run in UV spectrophotometer. The point where the drugs meet in the overlay was considered to be the isosbestic point. The spectrum wavelengths selected for the estimation of drugs were 218 nm as λmax of l-glutathione, 233 nm as λmax of n-acetyl l-cysteine and 264.5 nm as λmax of Vitamin C (Fig. 2).
Validation of an analytical method is the process of demonstrating that the method is suitable for its intended purpose and is capable of producing accurate and reliable results. It involves a series of tests and experiments to ensure that the method meets certain criteria and that the results are valid, reproducible and meaningful.
Linearity of an analytical method refers to the ability of the method to produce results that are directly proportional to the concentration of the analyte being measured over a specified range. In other words, as the concentration of the analyte increases or decreases, the response of the method should increase or decrease in a linear manner. For l-glutathione, the concentrations used were 50, 100, 150, 200 and 250 µg/ml. For n-acetyl l-cysteine, the concentrations used were 10, 20, 30, 40 and 50 µg/ml. For Vitamin C, the concentrations used were 2, 4, 6, 8 and 10 µg/ml. Then the calibration curve was plotted using absorbance obtained against different concentrations.
Limit of detection (LOD) and limit of quantification (LOQ)
Limit of detection (LOD) is the lowest amount or concentration of an analyte (substance being measured) that can be detected with reasonable certainty by the analytical method. It is the lowest concentration of the analyte that produces a signal that is distinguishable from the background signal or noise. Limit of quantification (LOQ), on the other hand, is the lowest concentration or amount of an analyte that can be accurately and precisely quantified by an analytical method with a certain degree of confidence. LOD can be calculated using the formula LOD = 3.3 × σ/S, and LOQ can be calculated using the formula LOQ = 10 × σ/S, where S = slope of the line equation and σ = standard deviation of y intercept of line.
Triplicates of the five dilutions were run in UV–visible spectrophotometer.
Accuracy (% recovery)
Accuracy of an analytical method refers to closeness of true value. According to ICH Q2(R1) guidelines, the accuracy studies were performed using three levels of concentrations, i.e., 80%, 100% and 120%, by replicate analysis (n = 3). Here the preanalyzed marketed sample solution was spiked with the standard drug solution and the % recovery was calculated. The absorbance of l-glutathione, n-acetyl l-cysteine and Vitamin C was recorded at 218 nm, 233 nm and 264.5 nm, respectively (Tables 1, 2, 3, 4, 5 and 6).
Intraday and inter-day precision
Precision refers to the repeatability and reproducibility of the method. It is the ability of the method to give precise results multiple times when performed under same conditions. The repeatability of the method was done using the same concentration repeated six times and the corresponding absorbance being noted. The % RSD was calculated for the same. For intermediate precision of the method, the intraday and inter-day analysis was done, i.e., repeated the same concentrations six times a day at a gap of one hour each (n = 6) and on 6 successive days, respectively. Both the results of intraday and inter-day are given in Tables 7, 8 and 9.
The robustness of the l-glutathione, n-acetyl l-cysteine and Vitamin C combination refers to its ability to maintain its desired properties and effectiveness under varying conditions. Factors such as temperature, pH and wavelength can impact the stability and efficacy of the combination. Robustness studies involve evaluating the performance and stability of the combination under different stress conditions. These studies provide valuable insights into the formulation’s resilience and help ensure its reliability and consistency. By assessing the robustness, potential vulnerabilities and areas for improvement can be identified, leading to a more reliable and effective combination.
Analysis of marketed formulation
The simultaneous equation method is utilized to determine the concentrations of l-glutathione, n-acetyl l-cysteine and Vitamin C in a combination. By measuring the absorbance at specific wavelengths and using known molar absorptivities, a set of simultaneous equations is established. Standard solutions with known concentrations are prepared and their absorbance values are substituted into the equations to form a system of linear equations. These equations can be solved mathematically to determine the concentrations of the three components in an unknown sample, providing valuable information for formulation analysis and quality control. The concentrations of the three drugs formulation were calculated using the following three simultaneous equations.
Stability studies are crucial in determining the shelf life and quality of pharmaceutical products, including drugs such as l-glutathione, n-acetyl l-cysteine and Vitamin C.
The drugs are exposed to acidic conditions to assess their susceptibility to acid-induced degradation. This helps determine whether the drugs remain stable and maintain their potency when subjected to acidic environments.
Like acid degradation, the drugs are tested under basic conditions to evaluate their stability against alkaline degradation. This step is essential to ensure that the drugs can withstand alkaline environments without significant degradation.
Peroxides can cause degradation in pharmaceuticals. Stability studies examine the drugs' vulnerability to peroxide-induced degradation, ensuring that they remain stable in the presence of peroxides and maintain their efficacy.
Exposure to ultraviolet (UV) light can lead to drug degradation. Therefore, stability studies involve subjecting the drugs to UV radiation to determine their susceptibility to UV-induced degradation. This evaluation helps establish proper packaging and storage requirements to protect the drugs from light exposure.
Drugs may undergo degradation due to temperature fluctuations. Stability studies involve subjecting the drugs to various temperature conditions to assess their stability against thermal degradation. This helps identify the appropriate storage conditions and temperature limits to maintain drug quality.
Identification and characterization of drugs

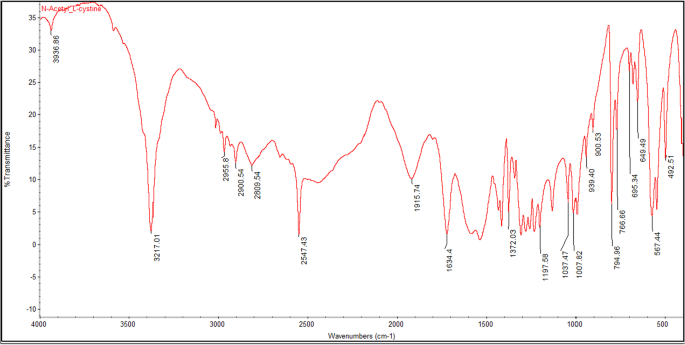

IR spectrum of l-glutathione, n-acetyl l-cysteine and Vitamin C
Various functional groups identified in l-glutathione, n-acetyl l-cysteine and Vitamin C were shown in table, respectively.
Melting point of l-glutathione, n-acetyl l-cysteine and Vitamin C was found to be 192–195 °C, 109–110 °C and 190–192 °C, respectively, through melting point apparatus.
The proposed method was validated as per ICH Q2(R1) guidelines. All the standard and sample solutions were prepared in accordance with the above developed method in the experiment.

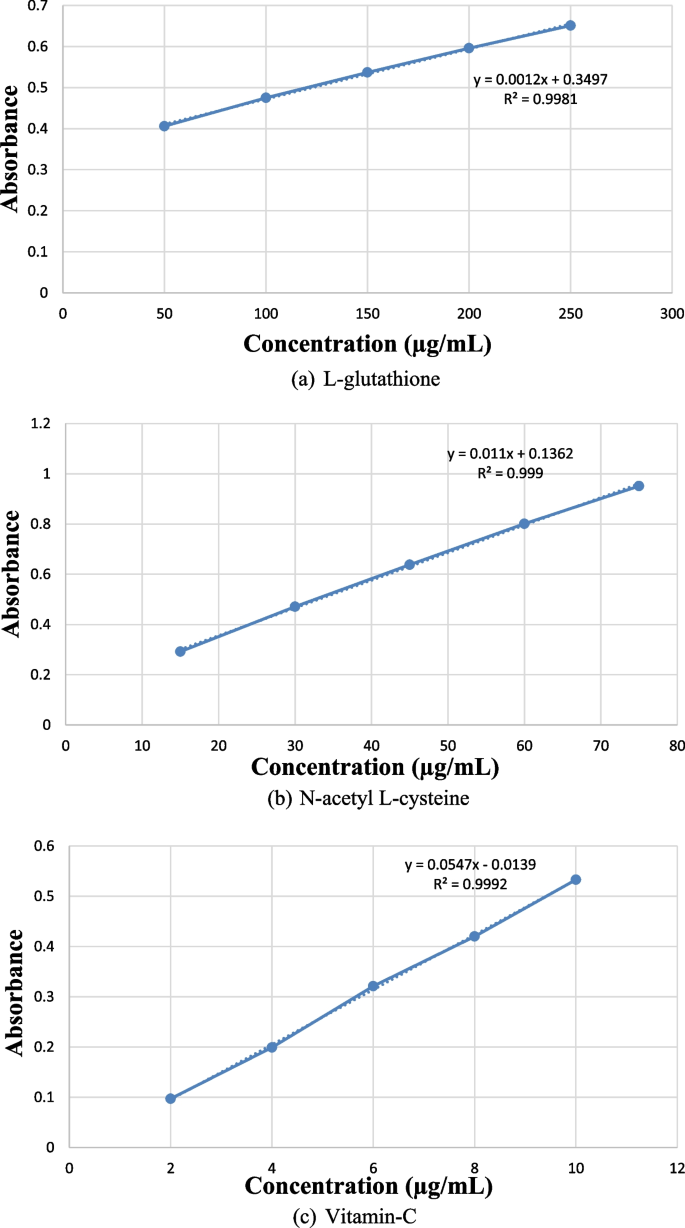

The linear regression data for the three drugs l-glutathione (Fig. 6a), n-acetyl l-cysteine (Fig. 6b) and Vitamin C (Fig. 6c) having regression equation found to be y = 0.001x + 0.3804 (R2 = 0.9983) (Fig. 7a), y = 0.0165x + 0.1362 (R2 = 0.999) (Fig. 7b) and y = 0.0547x + 0.0139 (R2 = 0.9992) (Fig. 7c), respectively, follow good linear relationship (Fig. 6). The concentrations corresponding to the linear relationship were (50–250 μg/mL, 15–75 μg/mL, and 2–10 μg/mL) for l-glutathione, n-acetyl l-cysteine, and Vitamin-C, as mentioned in Tables 4, 5 and 6 respectively.
Precision studies was done by taking middle concentration of l-glutathione, i.e., 150 µg/mL (n = 6). % RSD was found to be 0.206% and 0.438% of l-glutathione in intraday and inter-day precision, respectively, as shown in Table 7.
Precision studies was done by taking middle concentration of n-acetyl l-cysteine, i.e., 45 µg/mL (n = 6). % RSD was found to be 0.3451% and 0.4538% of n-acetyl l-cysteine in intraday and inter-day precision, respectively, as shown in Table 8.
Precision studies was done by taking middle concentration of Vitamin C, i.e., 6 µg/mL (n = 6). % RSD was found to be 0.477% and 0.760% of Vitamin C in intraday and inter-day precision, respectively, as shown in Table 9.
Accuracy (% recovery)
Three different concentration levels (80%, 100% and 120%) of this parameter were examined through replicate analysis (n = 3). The standard addition method was employed, involving the addition of a standard drug solution to a preanalyzed sample solution to determine the percentage of drug content. The absorbance of these solutions was measured at 218 nm for l-glutathione (Table 10), 233 nm for n-acetyl l-cysteine (Table 11) and 264.5 nm for Vitamin C (Table 12). Subsequently, the percentage recovery of the respective drug samples was calculated.
Limit of detection and limit of quantification
The LOD and LOQ were determined using the data obtained from the linearity analysis as mentioned in Tables 13, 14 and 15. Firstly, the slope of the linearity plot was calculated. Then, for each of the six replicate determinations, the y intercept and the standard deviation of the y intercept were calculated. Subsequently, these calculated values, along with the response and slope of the regression equation, were used to calculate the LOD and LOQ.
The robustness studies were conducted for l-glutathione as mentioned in Table 16, n-acetyl l-cysteine as mentioned in Table 17 and Vitamin C as mentioned in Table 18 to evaluate the impact of small variations in experimental conditions on the analytical results. The results showed that slight changes in factors such as wavelength did not significantly affect the performance. The method demonstrated good robustness, indicating its reliability and suitability for routine analysis.
Analysis of marketed formulation
Ten Orange packets tablets each containing 600 mg of l-glutathione, 400 mg of n-acetyl l-cysteine and 40 mg of Vitamin C were weighed and powdered, and the average weight was calculated. A quantity equivalent to 60 mg of l-glutathione was weighed and transferred in to 10-mL volumetric flask. The complete dissolution of the drugs in the volumetric flask was achieved by subjecting it to sonication for a duration of 2 min. Subsequently, the solution was diluted to the desired volume with distilled water and then filtered. To obtain the concentration of the drugs within the linear range, appropriate aliquots of the formulation were prepared and subjected to scanning as mentioned in Fig. 8. The simultaneous equation method was employed to determine the concentration of each analyte as mentioned in Table 19.
The stability studies of l-glutathione are mentioned in Table 20 under various stressed conditions like acid (Fig. 9a), base (Fig. 9b), peroxide (Fig. 9c), photolytic (Fig. 9d) and thermal degradation (Fig. 9e).

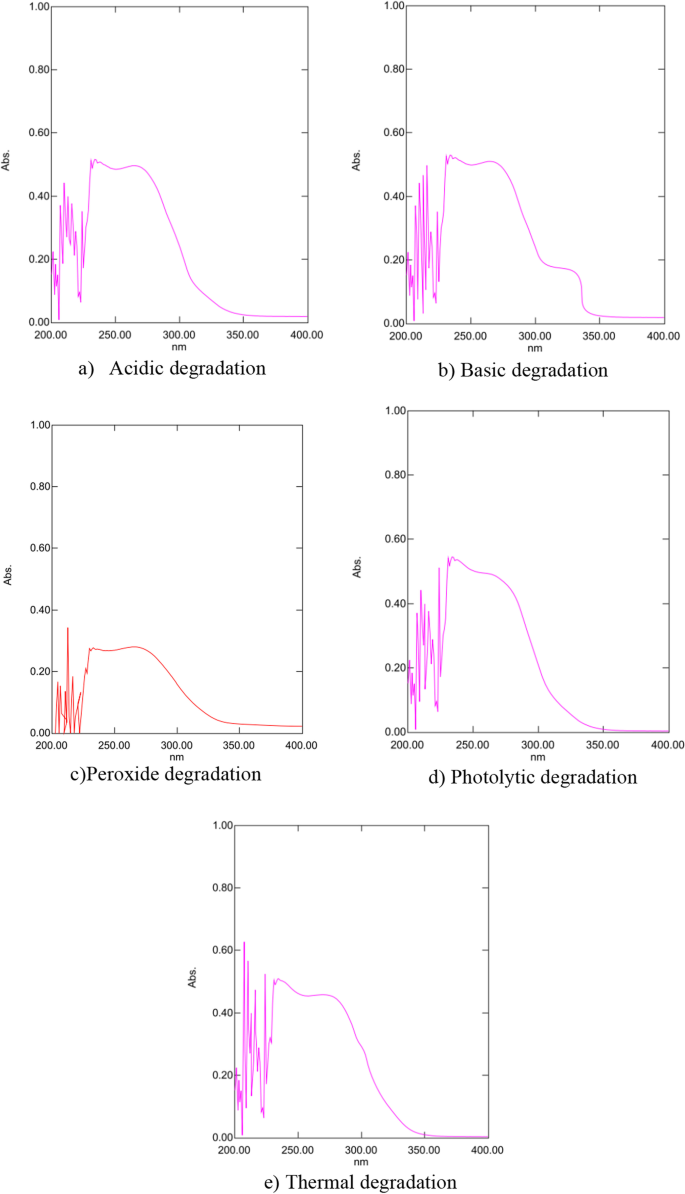

The stability studies of n-acetyl l-cysteine are mentioned in Table 21 under various stressed conditions like acid (Fig. 10a), base (Fig. 10b), peroxide (Fig. 10c), photolytic (Fig. 10d) and thermal degradation (Fig. 10e).

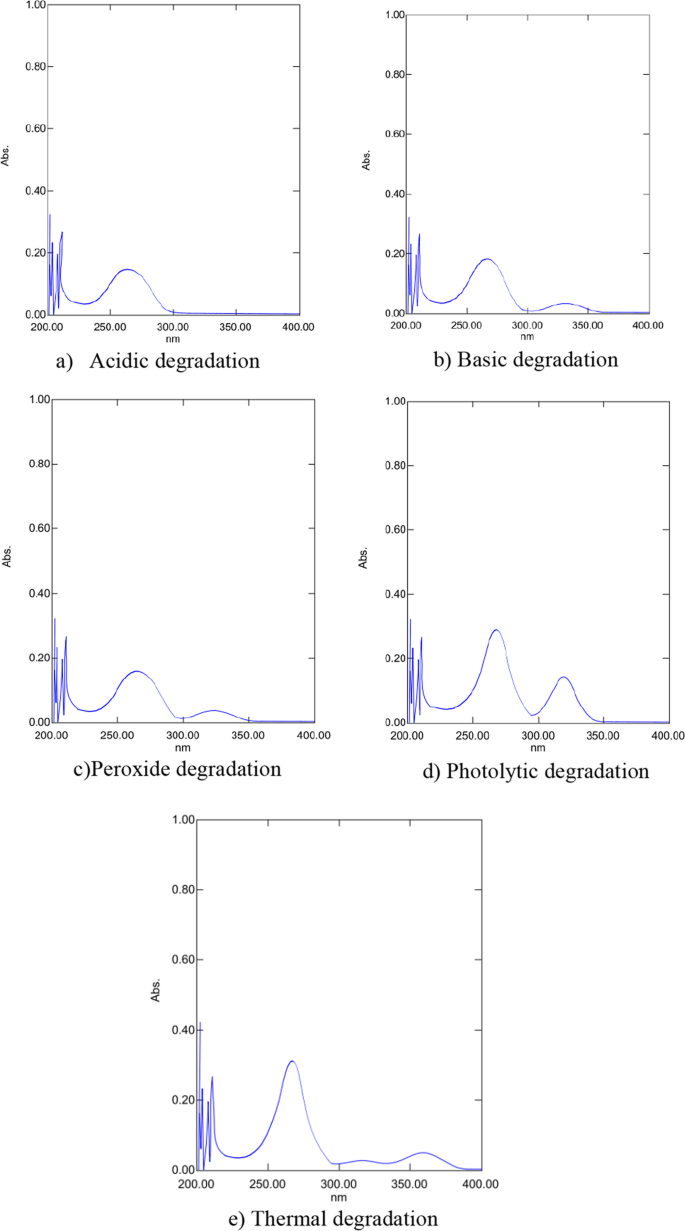

The stability studies of Vitamin C are mentioned in Table 22 under various stressed conditions like acid (Fig. 11a), base (Fig. 11b), peroxide (Fig. 11c), photolytic (Fig. 11d) and thermal degradation (Fig. 11e).
The current approach utilized a mixture of potassium hydroxide and distilled water. This method was designed to minimize the use of organic solvents, resulting in a more sensitive and cost-effective approach. Within this, method had been developed of l-glutathione, n-acetyl l-cysteine and Vitamin C and validated through UV–visible spectrophotometer along with simultaneous estimation and stability studies. Through a thorough review of the existing literature, it was discovered that no previous method existed for simultaneously estimating l-glutathione, n-acetyl l-cysteine and Vitamin C in marketed formulation. Stability studies were performed to check the quality of drugs under various stress conditions like acidic, basic, peroxide, thermal and photolytic.
Novel UV techniques were developed to concurrently determine the quantities of l-glutathione, n-acetyl l-cysteine and Vitamin C in a combined dosage form while maintaining cost efficiency. The presence of other components in the formulation did not interfere with the estimation of the three drugs. All validation parameters yielded results within acceptable limits. The calibration curves for all the substances exhibited linearity, accompanied by a strong correlation coefficient. These methods are characterized by high accuracy and precision, as evidenced by low relative standard deviation and a high percentage of recovery along with stability studies. Consequently, this straightforward, precise and cost-effective approach is suitable for the routine analysis of l-glutathione, n-acetyl l-cysteine and Vitamin C in combined dosage forms.
Availability of data and materials
The data that support the findings of this study are available from the corresponding author, upon reasonable request.
Green analytical chemistry
High-performance liquid chromatography
High-performance thin-layer chromatography
Limit of detection
Limit of quantification
Relative standard deviation
Fourier transmission infrared spectroscopy
International conference on harmonization
- H2O2 :
Duperray J, Sergheraert R, Chalothorn K, Tachalerdmanee P, Perin F (2022) The effects of the oral supplementation of l-cystine associated with reduced l-glutathione-GSH on human skin pigmentation: a randomized, double-blinded, benchmark-and placebo-controlled clinical trial. J Cosmet Dermatol 21(2):802–813. https://doi.org/10.1111/jocd.14137
Guerini M, Condrò G, Friuli V, Maggi L, Perugini P (2022) n-acetylcysteine (NAC) and its role in clinical practice management of cystic fibrosis (CF): a review. Pharmaceuticals 15(2):217. https://doi.org/10.3390/ph15020217
Mathew EM, Ravi A, Rameshwar N, Sudheer M, Krishnamurthy B (2017) Development and validation of an analytical method for related substances in n-acetyl–l-cysteine effervescent tablets by RP-HPLC. Indian J Pharmaceut Educ Res 51:626–635
Alhat BR, Kokate SV (2019) method development and validation for simultaneous estimation of l-glutathione and Vitamin-C in effervescent tablet by RP-HPLC. J Drug Deliv Ther 9(4):348–353. https://doi.org/10.5530/ijper.51.4.93
Archakam SC, Chenchugari S, Banoth CK (2018) Quantitative determination of n-acetylcysteine by RP-HPLC method in bulk and parenteral injection. Asian J Pharm Pharmacol 4:702–705. https://doi.org/10.31024/ajpp.2018.4.5.24
Lipsa D, Cacho C, Leva P, Barrero-Moreno J, Aguar P (2015) Development of a HPLC-UV method for the simultaneous determination of intracellular glutathione species in human cells. J Anal Bioanal Tech. https://doi.org/10.4172/2155-9872.1000259
Wabaidur SM, Alothman ZA, Khan MR (2013) A rapid method for the simultaneous determination of l-ascorbic acid and acetylsalicylic acid in aspirin C effervescent tablet by ultra performance liquid chromatography–tandem mass spectrometry. Spectrochim Acta Part A Mol Biomol Spectrosc 108:20–25. https://doi.org/10.1016/j.saa.2013.01.070
Ghule SS, Tamboli A, Kale S, Landage S, Patil S (2021) Analytical method development and validation of uv spectrophotometric method for simultaneous estimation of pyridoxamine dihydrochloride and acetylcysteine in tablet dosage form. Asian J Pharm Educ Res. https://doi.org/10.38164/AJPER/10.3.2021.30-41
Mitic SS, Kostic DA, Naskovic-okic D, Mitic MN (2011) Rapid and reliable HPLC method for the determination of vitamin C in pharmaceutical samples. Trop J Pharm Res. https://doi.org/10.4314/tjpr.v10i1.66549
Thao NMP, Vi NTT, Van NTN (2019) Determination of vitamin C in multivitamin effervescent tablets by high-performance liquid chromatography. Pharm Clin Res 5(4):271–272
Yefimov SV (2022) Rapid qualitative and quantitative HPLC/MS analysis of an antioxidant couple consisted of glutathione and ascorbic acid in a pharmaceutical product. In: Medicinal plants. IntechOpen. https://doi.org/10.5772/intechopen.102975
Elkady Y, Sobhy M, Baraka M, Sebaiy MM (2020) HPLC method for simultaneous determination of ascorbic acid, phenylephrine, paracetamol, caffeine in their pure and dosage forms. Int J Adv Res Chem Sci 7(6):7–16. https://doi.org/10.20431/2349-0403.0706002
Gajeli G, Kumbhar S, Patel G, Patil S (2022) Development and validation of novel UV spectroscopy method for the estimation of l-glutathione in bulk and formulation with Congo red. Asian J Pharm Anal 12(2):78–82. https://doi.org/10.52711/2231-5675.2022.00014
Pancham YP, Girish B, Sanjay SS (2020) UV-Spectrophotometric method for quantification of ascorbic acid in bulk powder. J Pharm Innov 9:05–08. https://doi.org/10.21203/rs.3.rs-2214144/v1
Kukoc-Modun L, Radić N (2011) Spectrophotometric determination of n-acetyl-l-cysteine and N-(2-mercaptopropionyl)-glycine in pharmaceutical preparations. Int J Anal Chem. https://doi.org/10.1155/2011/140756
Chakraborthy G (2009) Quantitative estimation of ascorbic acid by HPTLC in different varieties of amla. J Young Pharm 1(1):82. https://doi.org/10.4103/0975-1483.51878
Foudah AI, Alam P, Shakeel F, Alam A, Salkini MA, Alshehri S (2022) A simple, cost-effective, and green HPTLC method for the estimation of ascorbic acid in solvent and ultrasound-assisted extracts of Phyllanthus emblica, Capsicum annuum, and Psidium guajava. Agronomy 12(5):1016. https://doi.org/10.3390/agronomy12051016
