Stability-indicating method development and validation for the concurrent determination of darunavir, cobicistat, emtricitabine and tenofovir alafenamide by UPLC in bulk and tablet dosage forms

Abstract

Background

Tablet dosage forms containing combination of darunavir a protease inhibitor, cobicistat a cytochrome P450 3A inhibitor, emtricitabine and tenofovir alafenamide which were nucleoside reverse transcriptase inhibitors were approved by USFDA on 1st July 2018 to suppress the viral load in HIV patients. It can be used as a complete regimen for the treatment of HIV-1 infection in adults and paediatric patients weighing at least 40 kg. An UPLC method was developed, and separation was done on SB C₈ column of dimensions 50 × 2.1 × 1.8 μ with mobile phase 0.01 N potassium dihydrogen ortho phosphate (p^H-4.8) and acetonitrile in 60:40 ratio, at a flow rate of 0.3 mL/min and an injection volume of 2 μL. The column temperature was maintained at 30 °C, and detection wavelength was 267 nm. The method was validated according to ICH guidelines.

Results

The retention times were 1.031, 1.341, 1.630 and 2.153 min, and they were linear in the concentration range of 1.25–7.5 μg/mL, 18.75–112.5 μg/mL, 25–150 μg/mL and 100–600 μg/mL for tenofovir alafenamide, cobicistat, emtricitabine and darunavir, respectively. The intraday and interday precisions were found to be within acceptable limits. LOD was found to be 0.06 μg/mL, 0.51 μg/mL, 1.31 μg/mL and 3.01 μg/mL, and LOQ was 0.19 μg/mL, 1.54 μg/mL, 3.96 μg/mL and 9.13 μg/mL for tenofovir alafenamide, cobicistat, emtricitabine and darunavir. The correlation coefficients were found to be more than 0.999, and recovery was more than 99.52% indicating the method was accurate. Forced degradation studies reveal that the drugs are unstable under acidic conditions. The method was simple, accurate, precise, stable and can be analysed in less runtime of 4 min.

Conclusions

The flexibility, accuracy and precision of the developed method ensure its applicability in routine analysis of tablet dosage forms.

Graphical Abstract

Background

AIDS became the world’s most severe health and development challenge [1]. Treatment for HIV must aim against virus by giving antiretroviral therapy (ART) which was a combination therapy and simultaneously must control opportunistic infections [2]. USFDA approved symtuza on 1st July 2018 the first single-tablet regimen (STR) containing 800 mg of darunavir (DRV) which helps in immune restoration, 150 mg cobicistat (COBI) which inhibits cytochrome P450 3A and acts as pharmacokinetic enhancer of protease inhibitors, 200 mg emtricitabine (FTC) and 10 mg of tenofovir alafenamide (TAF). It reduces the pill burden and combines antiviral efficacy of darunavir with safety of tenofovir [3, 4]. Symtuza can be used for treating of HIV1 infection in adults and adolescents of more than 12 years age [5, 6]. The combination of FTC and TAF with a protease inhibitor shows additive and/or synergistic effect against HIV [7]. The chemical structures of analytes are shown in Fig. 1. Stress investigation details the chemical behaviour of the molecule which helps in the progression of dosage form and packaging [8].

Fig. 1

Structures of a tenofovir alafenamide, b cobicistat, c emtricitabine and d darunavir

Literature survey reveals that HPLC analysis was performed to simultaneously determine multiple drug components in STR-based drug products [9,10,11,12,13,14,15,16,17]. To the best of my knowledge, there were no analytical works for the analysis of STR-based tablets containing DRV, COBI, FTC and TAF. Attempts were made to establish a prompt, stable, reliable and accurate along with precise UPLC approach for the simultaneous estimation of DRV, COBI, FTC and TAF. This approach ought to be used in determination of these drugs in bulk and tablet dosage forms.

The drugs were separated and quantitatively determined by using UPLC in which the speed, resolution, sensitivity were enhanced [18]. The four-drug combination can be analysed in a short time which results in less run time and increased sensitivity, and thus reduces the solvent consumption leading to economisation.

Methods

• 1. The pharmaceutical-grade standards of TAF (99.7%), COBI (99.8%), FTC (99.9%), DRV (99.9%) are obtained from Spectrum Pharma Lab, Hyderabad.

• 2. Marketed formulation (symtuza, manufactured by Patheon Inc. for Janssen Pharmaceuticals, New Jersey, and Batch. no. 608) is obtained from Canada market.

• 3. Chemicals: Acetonitrile (HPLC grade, Merck India Ltd, Mumbai), monopotassium phosphate (AR grade), methanol (HPLC grade) were procured from Merck Chemical division (Mumbai, India). Purified HPLC-grade water was obtained from Milli-Q, USA.

Instrumentation

The separation was done on acquity UPLC system equipped with quaternary pumps, acquity TUV detector along with auto sampler. The data processor was Waters Empower 2 software. The column of SB C₈ column of 50 × 2.1, 1.8μ dimensions was used for separation. UV Spectrophotometer (Shimadzu UV 1800, Japan), electronic balance (Afcoset ER-200A, Mumbai, India), ultrasonicator (Enertech) and pH meter (AD 1020, Adwa Hungary ft, Hungary) were used for the study.

UPLC optimised conditions

Analytes can be separated by using combination of 0.01 N potassium dihydrogen ortho phosphate (pH -4.8) buffer and acetonitrile (60:40 v/v) at a flow rate of 0.3 mL/min through column maintained at a temperature of 30 °C at a detection wavelength of 267 nm. The column was equilibrated with mobile phase before injecting the solution. The injection volume was 2 µL.

Composition of analytical solutions

Mobile phase

The buffer and acetonitrile in the ratio of 60:40 v/v were used as mobile phase.

Constitution of 0.01 N potassium dihydrogen ortho phosphate buffer (p^H-4.8): 1.36 g of potassium dihydrogen ortho phosphate was weighed accurately and added to 1000 mL of Milli-Q water filtered through 0.45-µ membrane filter sonicated to degas, and made volume up to mark.

Diluent

Water and acetonitrile in the ratio of 50:50 were used as diluent.

Standard solution

1.25 mg, 18.75 mg, 25 mg and 100 mg of tenofovir, cobicistat, emtricitabine and darunavir working standards were accurately weighed and transferred into four different 25-mL clean dry volumetric flask, add 10 mL of diluent, sonicate for 30 min, and make up to the final volume with diluent. The solution contains 50 µg/mL tenofovir, 750 µg/mL cobicistat, 1000 µg/mL emtricitabine, 4000 µg/mL darunavir.

1 mL of above stock solution was pipetted out in to a 10-mL volumetric flask, and then, make up to the final volume with diluent. The solution contains 5 µg/mL tenofovir, 75 µg/mL cobicistat, 100 µg/mL emtricitabine, 400 µg/mL darunavir, and solution was dribbled through 0.45-µm PVDF syringe filter, supplied by Allpure Biotechnology.

Sample solution

Estimate the average weight of 10 symtuza tablets, powder equivalent to one tablet was taken in to 100-mL volumetric flask, and 50 mL of diluent was added, ultrasonicated for 25 min and made volume with water: acetonitrile 50:50v/v (diluent) and filtered. From this solution, pipette out 0.5 mL in to 10 mL of volumetric flask and contrive the volume with diluent. The solution was dribbled through the Allpure brand PVDF syringe filter (0.45 µ). The resultant solution contains 5 µg/mL TAF, 75 µg/mL COBI, 100 µg/mL FTC, 400 µg/mL of DRV.

Validation parameters of the UPLC method

The optimised approach was validated conferring to the ICH guidelines in Q2(R1) [19], and validation results show system suitability of the method developed, sensitivity, accuracy, precision, linearity, detection limit (DL), quantitation limit (QL), robustness and ruggedness. Stress conditions are induced, and forced degradation studies are carried on according to ICH guidelines Q2 (R1). According to ICH guidelines in Q1A (R2) [20], the stability testing of new drug products facilitates the identification of degradation products and the stability of analyte. Guidelines for the photostability studies are outlined in ICH guidelines Q1B [21].

System suitability

It is done to check the suitability of method to system as a part of estimating system performance. It was estimated on five replicate injections of freshly prepared standard solutions (5 μg/mL, 75 μg/mL, 100 μg/mL and 400 μg/mL of TAF, COBI, FTC and DRV, respectively), and the parameters like plate count, asymmetry and resolution were estimated. % RSD of area for five replicate injections should be NMT 2%.

Selectivity

Selectivity can be estimated to check for any interference noticed at the retention times of the drugs TAF, COBI, FTC and DRV. Selectivity can be known by comparing the results of standard solution, sample solution, blank sample and placebo sample.

Linearity

By constructing calibration curves of peak area versus concentration range, we can assess linearity of drugs in concentration range of: 1.25–7.5 μg/mL for TAF, 18.75–112.5 μg/mL for COBI, 25–150 μg/mL for FTC and 100–600 μg/mL for DRV. The linearity can be determined by calculating the regression equation from the calibration curve constructed by using six standard concentrations.

Accuracy

It was the closeness of observed value of the approach to the true value. It was estimated as percentage of analyte recovered for assay after adding a known amount of respective drugs. The known amounts of standard solutions of drugs were spiked to pre-analysed sample solutions injected into UPLC system. Accuracy was estimated at 50%, 100% and 150% concentrations in triplicate, and % recovery was estimated.

Precision

System precision or injection repeatability was estimated by injecting six replicate injections of standard solutions containing 5 μg/mL, 75 μg/mL, 100 μg/mL and 400 μg/mL of TAF, COBI, FTC and DRV. The % RSD of peak area response was calculated.

Method precision or repeatability was estimated by injecting sample solutions in six replicate injections of the sample solution containing 5 μg/mL, 75 μg/mL, 100 μg/mL and 400 μg/mL of TAF, COBI, FTC and DRV. Precision of the method was estimated by the RSD of the percentage assay of the analytes.

Intermediate precision was accessed by injecting six replicate samples which contain 5 μg/mL of TAF, 75 μg/mL of COBI, 100 μg/mL of FTC and 400 μg/mL of DRV on same day and consecutive day.

Detection limit and quantification limit

Detection limit also known as limit of detection was the lowest concentrations of TAF, COBI, FTC and DRV which can be reliably detected from background noise, and LOQ was the minimum concentration of the drugs quantified with accuracy and precision. LOD and LOQ can be estimated by the formulas and also from calibration curve.

$$\begin{aligned} & {\text{LOD}} = 3.3 \times \frac{{{\text{Std}}\;{\text{Dev}}\;{\text{of}}\;{\text{regression}}\;{\text{line}}}}{{{\text{Slope}}}} \\ & {\text{LOQ}} = 10 \times \frac{{{\text{Std}}.{\text{Dev}}\;{\text{of}}\;{\text{regression}}\;{\text{line}}}}{{{\text{Slope}}}} \\ \end{aligned}$$

Robustness

It provides evidence of reliability during usual handling and is determined by analysing different parameters like alternating flow rate of eluent (± 0.01 mL), constitution of mobile phase (± 2%) and changes in column temperature (± 2 °C). The effects of the changes in experimental conditions on retention times and % recoveries were recorded.

Accelerated degradation studies

ICH guidelines recommended stress testing to know the intrinsic stability of drug substance. In accelerated degradation studies, the solution of the standard was subjected to acid hydrolysis (2 N HCl, refluxed at 60^o C for 30 min), alkali hydrolysis (2 N NaOH, refluxed at 60 °C for 30 min), peroxide degradation (20% hydrogen peroxide heated at 60 °C for 30 min), thermal degradation (samples arranged in hot air oven at 105 °C for 6 hrs), photolytic degradation (sample in UV chamber for 7 days), neutral degradation (water, refluxed at 60 °C for 6 h). The so stressed samples were observed for the peak areas and compared with peak areas of standard.

Standard solution stability

The results obtained after analysing the standard solution stored after 24 h must be compared with the results obtained for fresh solution (at 0 h). The average %RSD of the area of solution was considered stable if the results do not deviate more than 2% with respect to fresh solution.

Assay procedure

Separately inject 2 µL of standard solution (of pure drugs) and sample solution (extracted from Symtuza tablets) in to the UPLC. The amount of the drugs present was estimated against the peak area of recorded chromatograms.

Results

System suitability

The peaks of TAF, COBI, FTC and DRV were obtained at retention times of 1.031, 1.341, 1.630, 2.153 min, respectively. The system suitability criterions are tabulated in Table 1.

Table 1 System suitability

Selectivity

No interference peaks were recorded at the retention times of drugs in the chromatograms of sample solution. The chromatograms are laid out in Fig. 2.

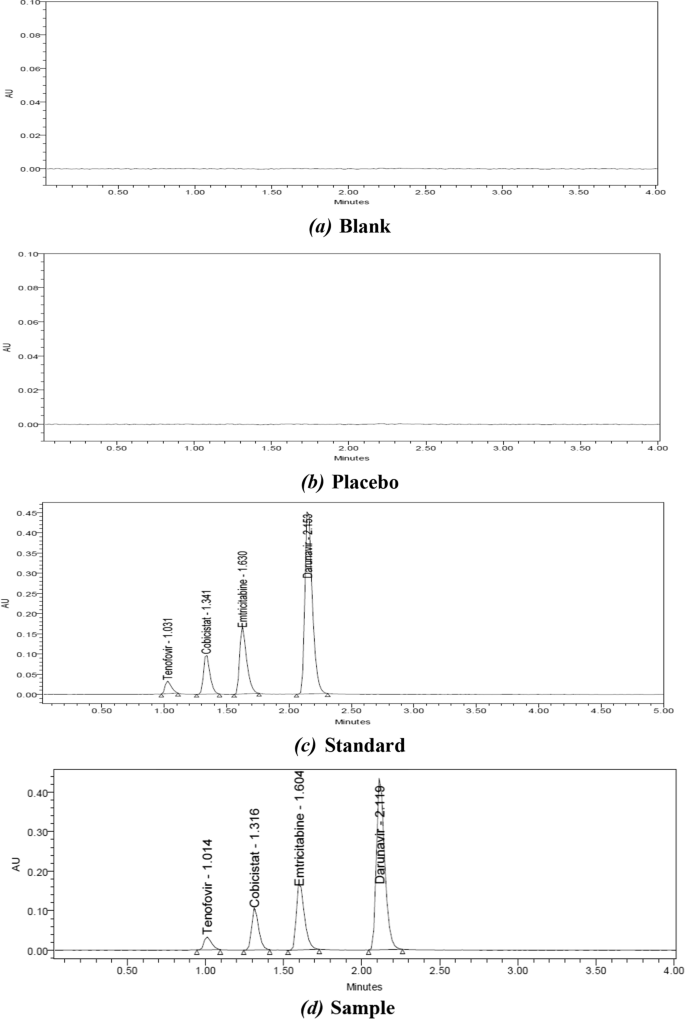

Fig. 2

a Blank, b placebo, c standard and d sample chromatograms

Linearity

Regression lines were linear in concentration range of 1.25–7.5 μg/mL for TAF, 18.75–112.5 μg/mL for COBI, 25–150 μg/mL for FTC and 100–600 μg/mL for DRV. The results are enumerated in Table 2 which confirms the linear relation between concentration and peak area.

Table 2 Regression equation parameters

Accuracy

According to the ICH guidelines, accuracy must be determined on nine determinations covering minimum of three concentrations. For the determination of accuracy, concentrations at 50%, 100%, 150% levels of labelled claim were determined. The recoveries of known amount of analytes are shown in Table 3. The % mean recovery values were 99.87%, 100.05%, 99.53% and 99.67%, respectively, for TAF, COBI, FTC and DRV which shows the method was accurate.

Table 3 Accuracy data

Precision

The %RSD of percent assay, peak area and intermediate precision were less than 2 which indicates method was repeatable, reproducible and rugged. The outcomes are listed in Table 4.

Table 4 Precision studies

LOD and LOQ

Sensitivity of the approach can be expressed as LOD and LOQ. The LOD values were observed as 0.06 μg/mL, 0.51 μg/mL, 1.31 μg/mL, 3.01 μg/mL, and LOQ values were found to be 0.19 μg/mL, 1.54 μg/mL, 3.96 μg/mL and 9.13 μg/mL for TAF, COBI, FTC and DRV. The values show the method was sensitive.

Robustness

Robustness was determined by small but deliberate variations in conditions like flow rate, composition of eluent, column temperature. Results due to variance in the conditions were compared with that of optimised chromatographic conditions. Results of robustness are tabulated in Table 5.

Table 5 Robustness data

Accelerated degradation studies

Stability-indicating performance was estimated by stressing the samples and conducting the forced degradation studies. Peak areas along with % recoveries of TAF, COBI, FTC and DRV after applying the stress conditions are summarised in Table 6.

Table 6 Results of forced degradation studies

Stability of standard solution

The stability of UPLC approach was determined by exposing the solution towards sunlight and room temperature for 24 h.

The optimised and valid method was applied for the estimation of TAF, COBI, FTC and DRV in the tablet dosage form, and the results obtained were on par to the labelled amounts. The outcomes are summarised in Table 7.

Table 7 Assay of tablets

Discussion

Few HPLC works were done previously on single drugs of the present study, in double combinations and also in combination with other drugs were done [9,10,11,12,13,14,15,16,17], but there were no analytical works developed for STR-based tablets containing DRV, COBI, FTC and TAF till date. In the developed method, the analytes were eluted at retention time of 1.031 min (TAF), 1.341 min (COBI), 1.630 min (FTC) and 2.153 min (DRV) and the run time is 4 min. Analytes exhibit good absorbance at 267 nm; therefore, this wavelength was selected as a detection wavelength in the development of method.

Prior to development of optimised method, several attempts were done with different combinations of mobile phases like methanol and water (50:50 v/v), acetonitrile and 0.1% OPA (40:60 v/v), acetonitrile and 0.01 N potassium dihydrogen phosphate (50:50 v/v) with columns like SB C₁₈ 100 × 2.1,1.8μ, hibar C₁₈ 100 × 2.1,1.8μ, phenyl C₁₈ 50 × 2.1,1.6μ, but the chromatograms obtained were not symmetric and the system suitability parameters like plate count and resolution were not according to the guidelines. Chromatograms with narrow peaks and acceptable symmetry and resolution were observed with SB C₈ column of 50 × 2.1, 1.8 μ particle size; eluent used was 0.1% phosphate buffer and acetonitrile in the ratio 60:40 v/v at a flow rate of 0.3 mL/min. The column was maintained at 30 °C, and wave length of detection was 267 nm. The chromatogram of the optimised conditions is shown in Fig. 2.

As the performance of the system may vary during the normal usage, system suitability tests were performed to check the resolution and reproducibility which were found to adequate. The system suitability results were satisfactory which was determined in terms of injection repeatability, retention time, plate count, tailing and resolution. It ensures the method for the intended use was satisfied and can proceed for the study of validation parameters. Interference peaks from excipients did not co elute on the same retention times of analytes, indicating the optimised condition was selective which is interpreted from Fig. 2. Regression lines were linear in concentration range of 1.25–7.5 μg/mL for TAF, 18.75–112.5 μg/mL for COBI, 25–150 μg/mL for FTC and 100–600 μg/mL for DRV. For TAF, COBI, FTC and DRV the regression coefficients were found to be 0.9993, 0.9996, 0.9998 and 0.9998 indicating the method was linear. The % mean recovery values were 99.87, 100.05, 99.53 and 99.67, respectively, for TAF, COBI, FTC and DRV which shows the method was accurate. The %RSD of percent assay, peak area and intermediate precision were less than 2 which indicates method was repeatable, reproducible and rugged. LOD was found to be 0.06 μg/mL, 0.51 μg/mL, 1.31 μg/mL and 3.01 μg/mL for TAF, COBI, FTC and DRV, and LOQ was 0.19 μg/mL, 1.54 μg/mL, 3.96 μg/mL and 9.13 μg/mL which indicates sensitivity of method. Results due to variance in the conditions are compared with that of optimised chromatographic conditions. The low values of %RSD, which is within limit, indicate the optimised method was robust.

In accelerated stability studies, due to these created stress conditions, the recorded peak areas of TAF, COBI, FTC and DRV were less than the peak area of standard which indicates the degradation of drugs to some extent in all the conditions. In spite of changes in chromatograms, all the responses laid within the limits of assay without any major variations in the analytes retention time and peak area. The conclusions we can draw from the table were that the combination of TAF, COBI, FTC and DRV was more prone to acid hydrolysis. The results suggest that developed method is stability suggesting. The stability samples were analysed, and the %RSD for the peak areas was found to be 0.8, 0.7, 0.5 and 0.67 for TAF, COBI, FTC and DRV, respectively, with no important change in the elution of the peak. It emphasises the stability of solution for 24 h. The label claim of TAF, COBI, FTC and DRV was 10 mg, 150 mg, 200 mg and 800 mg, and the amounts were found to be 9.97 mg, 150 mg, 200.44 mg and 802.4 mg in the marketed formulation.

Conclusions

The chromatographic run time of developed method was 4 min, and the drugs were separated with satisfactory resolution between peaks. Accuracy, precision, linearity, sensitivity, robustness were adequately satisfactory. Satisfactory results for degradation studies show the method was stable and the analytes can be determined in the presence of degradants, interpreting the method was selective. The method allows the determination of TAF, COBI, FTC and DRV in dosage forms and bulk in the shortest possible time and provides economy in cost and time.

To summarise, using single-column and single-phase mobile-phase combination of acetonitrile and phosphate buffer we developed a method to quantify the amount of the four drugs TAF, COBI, FTC and DRV in bulk as well as tablet dosage forms. The method was proved stability indicating and can be used in practice for the dosage forms and to assess the shelf life.
