Concurrent estimation of lamivudine, tenofovir disoproxil fumarate, and efavirenz in blended mixture and triple combination tablet formulation by a new stability indicating RP-HPLC method

Abstract

Background

An easy, defined, rapid, and accurate reverse phase high-performance liquid chromatography method was developed and subsequently validated for the concurrent estimation of lamivudine, efavirenz, and tenofovir disoproxil fumarate in their pure blend and combined tablet formulation. An efficient and appropriate separation of the three analytes was attained with Zorbax eclipse XDB-Phenyl column, with a mobile phase of methanol: buffer (0.1% v/v formic acid in water) (73:27 v/v) at a flow rate of 1mL/min and isocratic elution by using 260nm as detection wavelength. Equal ratio of acetonitrile and water was used as diluent.

Results

The retention times of lamivudine, tenofovir disoproxil fumarate, and efavirenz were found at 2.6, 4.4, and 5.9 min respectively. The linear response for lamivudine, tenofovir disoproxil fumarate, and efavirenz was in the range of 15.0–45.0μg/mL, 15.0–45.0μg/mL, and 20.0–60.0 μg/mL respectively. The method validation was done in accordance to ICH guidelines and all validation parameters in compliance with ICH standards. The degradants produced by stress testing were well resolved from the peaks of active analytes, which stipulates the stability-indicating property of the method.

Conclusion

The method has the ability to separate lamivudine, efavirenz, and tenofovir disoproxil fumarate concurrently in blended powder and their combined tablet. All degradants produced by application of stress conditions were separated with high resolution and determined with good sensitivity that ensures the stability-indicating property of the method. Thus, the projected method has high probability to adopt in the pharmaceutical industrial sector.

Background

The antiviral therapy with combination of two or more drugs is a great advancement in the treatment of hepatitis B and human immunodeficiency virus diseases. Multi-drug combination therapy is compliance by the patients due to decreased pill load per day. The three-drug combination of lamivudine (LAM), tinofovir disproxil fumarate (TDF), and efavirez (EVZ) is a competent highly active anti-retroviral therapy which comprise of one non-nucleoside reverse transcriptase inhibitor and two nucleoside reverse transcriptase inhibitor drugs [1, 2]. LAM, chemically, is 4-amino-1-[(2R, 5S)-2-(hydroxyl methyl)-1,3-oxathiolan-5-yl]-1, 2-dihydropyrimidin-2-one [3]. It ceases DNA replication by inhibiting the reverse transcriptase enzyme competitively [4]. TDF, chemically, is 1-(6-aminopurine -9-yl) propan-2 yl] oxymethyl-(propan-2-yl oxycarbonyl oxymethyl) phosphoryl] Oxymethyl propan -2yl carbonate [5]. It is a prodrug of tenofovir, which ceases DNA replication by inhibiting the reverse transcriptase enzyme competitively [6,7,8,9]. Chemically EVZ, (4S)-6-chloro-4-(2-cyclopropylethynyl)-4-(trifluoromethyl)-1H-3,1-benzoxazin-2-one, is a non-nucleoside reverse transcriptase inhibitor, which inhibits the DNA polymerase non-competitively [10, 11]. The chemical structures of LAM, TDF, and EVZ are shown in Fig. 1.

Fig. 1
figure 1

Chemical structures of LAM, EVZ, and TDF

A competent analytical method is important for an analyte to determine alone or in blend with other analytes concurrently. The broad literature search disclosed that a small number of analytical methods like UV and RP-HPLC methods were at hand for determination of LAM. TDF and EVZ individually and in combined dosage form [3, 5, 12,13,14,15,16]. In addition to those methods, few RP-HPLC methods were described for determination of LAM, TDF with dolutegravir, and other antiviral agents [17,18,19,20,21]. As of yet, a competent stability-indicating RP-HPLC method was not available for the concurrent evaluation of LAM, EVZ, and TDF in pure blend and combined tablet formulation. Hence, research attempts have been done to develop an efficient, highly responsive and cost-effective RP-HPLC method to estimate the percentage purity and to evaluate the stability of LAM, EVZ, and TDF in blended bulk powder and tablet formulation concurrently. To assure the developed method, validation of the method was done as indicated by Q2R1 guidelines of ICH.

Methods

Pure drug samples

Pure and active form of LAM (99.4%), EVZ (99.4%), and TDF (99.3%) were procured as gift samples from Aurobindo Pharma, Hyderabad.

Formulation

Film-coated tablet dosage forms (Symfi Lo is a fixed-dose combination product containing 400 mg of EVZ, 300 mg of LAM, and 300 mg of TDF) were purchased from local pharmacy in Hyderabad.

Chemicals and reagents

All HPLC grade and analytical grade solvents were purchased by local distributor of Merck India.

Instrument specifications

The method was done by using WATERS HPLC (2695model, PDA detector, and the Empower 2 solution software). In addition, an analytical balance (Denver instrument, TB-215D), a digital pH meter (MEZARIT), and water (Milli-Q) were used. Forty-five micrometers povidone filters were used to filter all the solutions and the solvents before introduced into the instrument.

Chromatographic method conditions

An efficient and appropriate separation of the three analytes was done with Zorbax eclipse XDB-Phenyl (250 × 4.6mm, 5μ) column, using a mobile phase consist of methanol: buffer (0.1% v/v formic in water) (73:27 v/v) at a flow rate of 1mL/min and a detection wavelength of 260.0 nm. Equal ratio of acetonitrile and water was used as diluents.

Preparation of standard solution

One hundred milligrams of LAM, 100.0mg of TDF, and 133.3mg of EVZ pure powders were accurately weighed and dissolved with diluent in a 100-mL volumetric flask. One milliliter of the above solution was diluted to 10mL. Three milliliters of the resultant solution was further diluted to 10mL to get a concentration of 30.0μg/mL, 40.0μg/mL, and 30.0μg/mL for LAM, EVZ, and TDF respectively.

Preparation of sample solution

The crushed tablet powder equivalent to 100mg of LAM, 100mg of TDF, and 133.3mg of EVZ pure powders was accurately weighed and dissolved with diluent in 100-mL volumetric flask. One milliliter of the above solution was diluted to 10mL. Three milliliters of the resultant solution was further diluted to 10mL to get a concentration of 30.0μg/mL, 40.0μg/mL, and 30.0μg/mL for LAM, EVZ, and TDF respectively.

Method validation

Validation is written evidence that provides assurance of the method or process with high degree level. To validate analytical method, Q2R1 guidelines of the ICH were taken into consideration.

System suitability test

The system suitability test of the present method was established by injecting standard solution in 6 consecutive injections, and the parameters such as percentage relative standard deviation (%RSD), tailing factor (T), resolution (R), and number of theoretical plates (N) were assessed for the chromatograms thus attained.

Linearity

The linearity of an analytical method signifies the direct proportional relationship between experimental results and the given concentrations. It was established for the solutions having concentrations ranging from 15.0 to 45.0 μg/mL of both LAM and TDF and 20.0 to 60.0μg/mL of EVZ. A calibration curve was plotted between concentration and peak area to determine regression coefficient (R2).

Precision

The precision of the method expresses the close agreement between the observed responses of homogenous samples on multiple sampling at identical conditions. In general, it can be performed on the same day and on different consecutive days represented as intra-day (repeatability) precision and inter-day precision (intermediate precision) respectively. Repeatability was assessed by injecting standard solution for five times in a single day, and intermediate precision was assessed by injecting same standard solution for two times per day for three successive continuous days. %RSD values were assessed for peak areas attained in chromatograms.

Accuracy

Substantially, the accuracy was validated by percentage recovery studies where specified amount of sample solution was spiked into standard solution. In general, spiking can be done at 50, 100, and 150% level concentrations of standard solution. Each level solution was injected for three times. The % mean recovery of sample at each spiked level was calculated.

Specificity

Specificity is the ability of the analytical method to assess the analyte of interest in the presence of other substances including degradation products and excipients without interferences. It was performed by introducing consecutive injections of placebo, blank, standard, and placebo mixed with standard. The obtained chromatograms were examined for interference from the peaks of other substances with peaks of analytes to be determined.

Sensitivity

The LOQ and LOD were reckoned by using the following formulae:

$$ \mathrm{LOD}=3\times \upsigma /S $$
$$ \mathrm{LOQ}=10\times \upsigma /S $$

where σ is the SD of intercept and S is the slope of the linear curve.

Robustness

Method’s robustness was assessed by changing the optimized conditions of the method to a little extent intentionally. In this case, optimized conditions like ratio of the mobile phase (± 1mL), flow rate of mobile phase (± 0.1 mL/min), and detection wavelength (± 2nm) were intentionally altered to a little extent.

Forced degradation studies

In forced degradation (FD) studies, chemical stability of the analyte can be assessed in the presence of more intensive conditions like acid and alkali hydrolysis, oxidative degradation, and thermal and photo stability as provided by ICH quality guidelines.

Acid and alkali hydrolysis

Ten milliliters of standard stock solution was mixed with 2mL of 0.1N HCl and 2mL of 0.1N NaOH separately, reflux the prepared solutions for 2 h at 70°C, and kept it aside at room temperature for 24 h. The resultant solutions were neutralized and further diluted in such a way to get a concentration of 30μg/mL, 40μg/mL, and 30μg/mL for LAM, EVZ, and TDF respectively.

Oxidative degradation

Ten milliliters of standard stock solution was mixed with 2mL of 3% hydrogen peroxide and reflux the prepared solutions for 2h at 70 °C, and kept it aside for 24 h and further diluted in such a way to get a concentration of 30μg/mL, 40μg/mL, and 30 μg/mL for LAM, EVZ, and TDF respectively.

Thermal degradation

The standard stock solution was placed in hot air oven at 80°C/75% relative humidity for 24 h. One milliliter of the above exposed solution was further diluted in such a way to get a concentration of 30μg/mL, 40μg/mL, and 30μg/mL for LAM, EVZ, and TDF respectively.

Photo degradation

The standard stock solution was in ultraviolet chamber at 254.0 nm for 24 h. One milliliter of above exposed solution was further diluted in such a way to get a concentration of 30μg/mL, 40μg/mL, and 30μg/mL for LAM, EVZ, and TDF respectively.

The above mentioned FD solutions were injected and computed for the percentage degradation of LAM, EVZ, and TDF. As per most of the researcher’s suggestions, the considerable degradation of analyte is around 20% for the validation of stability-indicating HPLC method.

Assay

The assays of the LAM, EVZ, and TDF in commercial tablets were determined by injecting sample solution.

Results

The foremost step in the method development is to determine the solubility of the analyte. It was observed that LAM and TDF were freely soluble in water and acetonitrile and slightly soluble in methanol, and EVZ was soluble in methanol and acetonitrile and insoluble in water. On the basis of solubility of LAM, EVZ, and TDF, water and acetonitrile in 1:1 ratio was chosen as diluent.

Method optimization

Method optimization was completed after several trials. In this research, several trials have been done with different columns, mobile phases, and flow rates to attain a method with good resolution (R), N, T, and % RSD. At last, a method with Zorbax eclipse XDB-Phenyl column, with a mobile phase of methanol: buffer (0.1% v/v formic in water) (73:27 v/v) at a flow rate of 1mL/min and detection wavelength of 260.0nm was elected as optimized conditions (trial 6). The different trial conditions and their observation are shown in Table 1. The optimized chromatogram is shown in Fig. 2.

Table 1 Different trials
Fig. 2
figure 2

Optimized chromatogram of the method

Method validation

System suitability

All parameters of the system suitability test were in compliance with standards of ICH (Table 2).

Table 2 Results of system suitability parameters of standard solution

Linearity

The linear response of the LAM, TDF, and EVZ were in the series of 15.0 to 45.0 μg/mL, 15.0 to 45.0 μg/mL, and 20.0 to 60.0μg/mL. Linearity was confirmed by calculating R2 value from linear plot constructed between concentration and peak area (Table 3, Fig. 3). The R2 values of the three analytes were in compliance with ICH limits.

Table 3 Concentration and peak areas of linearity level solution of LAMI, TDF, and EVZ
Fig. 3
figure 3

Linearity curve of LAM, EVZ, and TDF

Accuracy

The mean percentage recovery of the all the three analytes in spiked solutions of three specified levels were found to be 100%±2 (Table 4), which illustrates that method was highly accurate as it is in compliance with standards laid down by ICH.

Table 4 Results of percentage recovery

Precision

%RSD value of the peak areas of the LAM, EVZ, and TDF in replicate injections of the standard solution was assessed as ≤ 2 (Table 5), which describes that the current method was highly precise.

Table 5 Results of intraday and inter-day precision of standard solution

Sensitivity

The detection limit (LOD) and quantification limit (LOQ) responses were assessed to be 1.9μg/ml and 5.8μg/ml for LAM, 1.7μg/mL and 5.2μg/mL for TDF, and 2.3 μg/mL and 6.8μg/mL for EVZ respectively.

Robustness

Intentional changes in optimized procedure conditions to little extent could not influence the system suitability parameter results which were in compliance with the standards of ICH (Table 6), stipulates that the method has considerable robustness.

Table 6 Results of robustness of standard solution

Forced degradation

The percentage degradations of the three analytes in stressed solutions are given in Table 7. Acid hydrolysis, alkali hydrolysis, oxidative degradation, photo degradation, and thermal chromatograms were mentioned in Figs. 4, 5, 6, 7, and 8 respectively. Those results were stipulating the stability-indicating property of the method.

Table 7 Results of forced degradation studies
Fig. 4
figure 4

Chromatogram of acid degradation

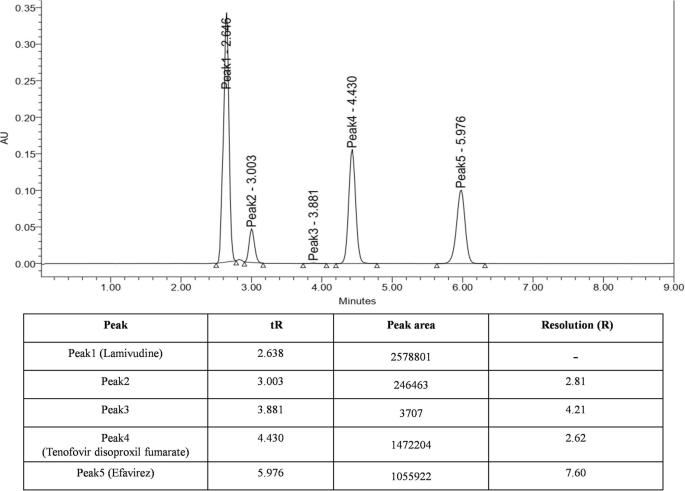

Fig. 5
figure 5

Chromatogram of base degradation

Fig. 6
figure 6

Chromatogram of oxidative degradation

Fig. 7
figure 7

Chromatogram of photo degradation

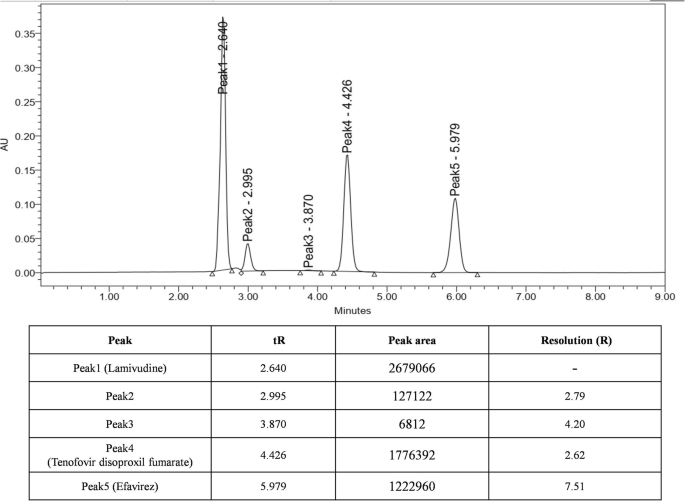

Fig. 8
figure 8

Chromatogram of thermal degradation

Assay

The percentage assay of the LAM, EVZ, and TDF in the combined tablet form were within 100%±15 limit (Table 8), which are in compliance with standards of ICH.

Table 8 Results of % assay of the tablet dosage form

Discussion

Many RP-HPLC procedures were available for simultaneous determination of LAM, EVZ, and TDF in combined tablets [12,13,14,15,16,17,18,19]. But no RP-HPLC method was subsisted with a simple solvent system, and less retention time existed. Along with those, the reported methods have drawbacks like less sensitivity and without FD studies. Therefore, endeavored to ascertain a stability-indicating method with simple solvent system [methanol 0.1% formic acid (73:27 v/v)] and less RT (less than 6min). The RT of the analytes was less than the previously subsisted method which is regarded as cost-effective due to decrease in elution time and volume of solvent to be consumed. Therefore, analysis of sample time is reduced, and more number of samples can be analyzed.

The developed method was validated as per Q2R1 guidelines of ICH. The developed method has good LOD and LOQ of 1.9μg/ml and 5.8μg/ml for LAM, 1.7μg/mL and 5.2μg/mL for TDF, and 2.3 μg/mL and 6.8μg/mL for EVZ respectively. Those values revealed that the current method has good sensitivity than the previously reported methods. The FD studies helped in determination of the amount of the drug degraded by application of different stressed conditions, which represents the stability-indicating property of the method. The developed method validation parameters were in compliance with Q2R1 specifications of ICH.

Conclusion

An easy, accurate, unambiguous, insightful, and precised RP HPLC-PDA method with isocratic mobile phase was created to determine LAM, EVZ, and TDF concurrently in blended powder and their combined tablet. The current method has the ability to separate LAM, EVZ, and TDF, with effective resolution with less retention times. All degradants produced by application of FD degradation were separated with high resolution and determined with good sensitivity that ensures the stability-indicating property of the method. Thus, the projected method has high probability to adopt in the pharmaceutical industrial sector.

Availability of data and materials

All data and material should be available upon request.

Abbreviations

LAM:

Lamivudine

TDF:

Tinofovir disproxil fumarate

EVZ:

Efavirez

XDB:

Extra dense bonding

FD:

Forced degradation

SD:

Standard deviation

RSD:

Relative standard deviation

LOD:

Limit of detection

LOQ:

Limit of quantification

References

  1. Avihingsanon A, Maek-a-nantawat W, Gatechompol S, Sapsirisavat V, Thiansanguankul W, Sophonphan J (2017) Efficacy and safety of a once-daily single-tablet regimen of tenofovir, lamivudine, and efavirenz assessed at 144 weeks among antiretroviral-naïve and experienced HIV-1-infected Thai adults. Int J Infect Dis 1:89–96

    Article  Google Scholar

  2. Wu YS, Zhang WW, Ling XM, Yang L, Huang SB, Wang XC (2016) Efficacy and safety of tenofovir and lamivudine in combination with efavirenz in patients co-infected with human immunodeficiency virus and hepatitis B virus in China. Chin Med J (Engl) 129(3):304–308. https://doi.org/10.4103/0366-6999.174509

    Article  CAS  Google Scholar

  3. More S, Tandulwadkar S, Nikam A, Rathore A, Lohidasan S, Mahadik K (2013) Separation and determination of lamivudine, tenofovir disoproxil fumarate and efavirenz in tablet dosage form by thin-layer chromatographic-densitometric method. J Planar Chromatogr - Mod TLC 26(1):78–85. https://doi.org/10.1556/JPC.26.2013.1.12

    Article  CAS  Google Scholar

  4. Palumbo E (2008) Lamivudine for chronic hepatitis B: a brief review. Braz J Infect Dis 12(5):355–357. https://doi.org/10.1590/s1413-86702008000500002

    Article  CAS  PubMed  Google Scholar

  5. Nadig S, Jacob JT, Bhat I (2013) A stability indicating RP-HPLC method for simultaneous estimation of emtricitabine, tenofovir disoproxil fumarate and efavirenz in pharmaceutical dosage forms. Research J. Pharm. and Tech. 4(391-396):6

    Google Scholar

  6. Badii VS, Buabeng KO, Agyarko Poku T, Forkuo AD, Boamah BB, Arhin SM (2018) Tenofovir-based highly active antiretroviral therapy is associated with superior CD4 T cells repopulation compared to zidovudine-based HAART in HIV 1 infected adults. Int J Chronic Dis. https://www.ncbi.nlm.nih.gov/pmc/articles/PMC5932490/.

  7. Lyseng-Williamson KA, Reynolds NA, Plosker G (2005) Tenofovir disoproxil fumarate: a review of its use in the management of HIV infection. Drugs 65(3):413–432. https://doi.org/10.2165/00003495-200565030-00006

    Article  CAS  PubMed  Google Scholar

  8. Ustianowski A, Arends JE (2015) Tenofovir: what we have learnt after 7.5 million person-years of use. Infect Dis Ther 4(2):145–157. https://doi.org/10.1007/s40121-015-0070-1

    Article  PubMed  PubMed Central  Google Scholar

  9. Quercia R, Perno C-F, Koteff J, Moore K, McCoig C, St. Clair M (2018) Twenty-five years of lamivudine: current and future use for the treatment of HIV-1 infection. JAcquir Immune Defic Syndr 78(2):125–135. https://doi.org/10.1097/QAI.0000000000001660

    Article  CAS  Google Scholar

  10. Rakhmanina NY, van den Anker JN (2010) Efavirenz in the therapy of HIV infection. Expert Opin Drug Metab Toxicol 6(1):95–103. https://doi.org/10.1517/17425250903483207

    Article  CAS  PubMed  PubMed Central  Google Scholar

  11. Vrouenraets S, Wit F, Tongeren J, Lange J (2007) Efavirenz: a review. Expert Opin Pharmacother. 8(6):851–871. https://doi.org/10.1517/14656566.8.6.851

    Article  CAS  PubMed  Google Scholar

  12. NNC, AN, Afreen A, Banu AA, PH, Gayathri EJ (2018) Analytical methods for determination of lamivudine and their applicability in biological studies. Res J Pharm Technol 11(11):5166–5172. https://doi.org/10.5958/0974-360X.2018.00944.7

    Article  Google Scholar

  13. Bhavsar DS, Patel BN, Patel CN (2012) RP-HPLC method for simultaneous estimation of tenofovir disoproxil fumarate, lamivudine, and efavirenz in combined tablet dosage form. Pharm Methods 3(2):73–78. https://doi.org/10.4103/2229-4708.103876

    Article  PubMed  PubMed Central  Google Scholar

  14. Anandakumar K, Abirami G, Murugan S, Ashok B (2018) RP-HPLC method for simultaneous estimation of lamivudine, tenofovir disoproxil fumarate and efavirenz in tablet formulation. J Anal Chem 68:815–821

    Article  Google Scholar

  15. Jagadabi V, Nagendra Kumar P, Pamidi S, Ramaprasad L, Nagaraju D (2018) A stability-indicating HPLC method for the determination of potential impurities in a few fixed dose combination of dolutegravir, lamivudine and tenofovir disoproxil fumarate tablets used in the first line treatment of HIV-1 infection. Int Res J Pharm 9(5):65–74. https://doi.org/10.7897/2230-8407.09575

    Article  CAS  Google Scholar

  16. Sharma R, Mehta K (2010) Simultaneous spectrophotometric estimation of tenofovir disoproxil fumarate and lamivudine in three component tablet formulation containing efavirenz. Indian J Pharm Sci 72(4):527–530. https://doi.org/10.4103/0250-474X.73926

    Article  CAS  PubMed  PubMed Central  Google Scholar

  17. Babu C, Devanna N, Reddy KV (2017) Validated gradient stability indicating RP-HPLC method for the simultaneous quantification of 11 related substances in the combined dosage forms of lamivudine and tenofovir disopeoxil fumarate. Int J Appl Pharm 9(4):61–68. https://doi.org/10.22159/ijap.2017v9i4.19001

    Article  CAS  Google Scholar

  18. Ramaswamy A, Arul Gnana Dhas AS (2018) Development and validation of analytical method for quantitation of emtricitabine, tenofovir, efavirenz based on HPLC. Arab J Chem 11(2):275–281. https://doi.org/10.1016/j.arabjc.2014.08.007

    Article  CAS  Google Scholar

  19. Mallikarjuna Rao N, Gowri Sankar D (2015) Development and validation of stability-indicating HPLC method for simultaneous determination of lamivudine, tenofovir, and dolutegravir in bulk and their tablet dosage form. Future J Pharm Sci. 1(2):73–77. https://doi.org/10.1016/j.fjps.2015.11.002

    Article  Google Scholar

  20. Godela R, G S (2020) An effective stability indicating RP-HPLC method for simultaneous estimation of dolutegravir and lamivudine in bulk and their tablet dosage form. Future J Pharm Sci. 6:9, 1, DOI: https://doi.org/10.1186/s43094-020-00026-0.

  21. Nekkala K (2017) Development and validation for the simultaneous estimation of lamivudine, tenofovir disproxil and dolutegravir in drug product by RP-HPLC. J Pharm Sci 9:6

    Google Scholar
