Development of superior chitosan–EDTA microparticles as an adsorbent base for solidifying the self-emulsifying drug delivery systems

Abstract

Background

The present study focused on developing a superior adsorbent carrier (microparticles) to solidify the self-emulsifying drug delivery system. The two approaches, solvent evaporation and spray drying, were explored to synthesize the microparticles using chitosan (CH) and EDTA disodium. The 3² full factorial design was applied to optimize the microparticle process produced by both methods.

Results

The various characterization evaluations of the microparticles revealed amide linkages between the CH and EDTA disodium, and XRD results showed that microparticles were amorphous. The SE-CHEM (C₂) and SD-CHEM (Y₁) optimized microparticles were free-flowing and had percentage yield (%), 96 ± 1.2 and 58 ± 1.1, zeta potential (mV), 9 ± 0.44 and 4 ± 0.13, and particle size (μm), 3 ± 0.57 and 2 ± 0.4, respectively. SEM images showed uneven surfaces with wide void spaces and flaky texture for optimized microparticles Y₁ and C₂, respectively. The SE-CHEM (C₂) had an oil adsorption capacity (OAC %) of 46 ± 0.54 and 60 ± 0.77, and oil desorption capacity (ODC %), 38 ± 0.65 and 56 ± 0.86, for Labrafac and Cremophor RH 40, respectively. The SD-CHEM (Y₁) had an oil adsorption capacity (OAC %) of 59 ± 0.71 and 68 ± 0.39, and oil desorption capacity (ODC %), 54 ± 0.11 and 65 ± 0.74, for Labrafac and Cremophor RH 40, respectively. In the surface free energy components analysis, the SE-CHEM (C₂) had an enhanced dispersive component [γ^LW (mJ/m²)] of 32 ± 0.68 and 37 ± 0.47 for Labrafac and Cremophor RH 40, respectively. The SD-CHEM (Y₁) had an enhanced dispersive component [γ^LW (mJ/m²)] of 48 ± 0.7 and 52 ± 0.41 for Labrafac and Cremophor RH 40, respectively. The SE-CHEM (C₂) had enhanced dynamic advancing contact angles [θ_a (°)] of 75 ± 0.19 and 78 ± 0.75 for Labrafac and Cremophor RH 40, respectively. The SD-CHEM (Y₁) had enhanced dynamic advancing contact angles [θ_a (°)] of 74 ± 0.6 and 80 ± 0.21 for Labrafac and Cremophor RH 40, respectively.

Conclusion

All the findings indicate that the microparticles have superior characteristics to serve as the adsorbent base for solid self-emulsifying drug delivery systems.

Background

Solid self-emulsifying drug delivery systems (S-SEDDS) are well-proven and known formulation systems. They offer many advantages like increased surface area (which offers high solubility and bioavailability), robustness, high stability, high scalability, ease in handling, high drug loading, better flowability, decreased drug precipitation and economical production [1]. S-SEDDS can be turned into Self-emulsifying pellets and tablets, which are far more stable than SEDDS and S-SEDDS powder [2, 3]. Despite the excellent advantages of S-SEDDS, problems like liquid squeezing out, low disintegration, inadequate hardness and compaction issues are observed. Because of physicochemical interactions between the solid carrier, oil base and surface-active agents, limited release of the formulation can be a problem [4]. Therefore, a suitable adsorbent carrier becomes the most vital part of the stability of the S-SEDDS [5]. Different carriers like PVP K-30, maltodextrin, magnesium stearate, β-cyclodextrin, polyvinyl alcohol, neusilin US2, sodium CMC, dextrin, lactose, mannitol, HP-β-CD, aerosil-200, syloid 244FP, avicel PH102, syloid XDP 3150 and microcrystalline cellulose are used [6].

An ideal solid adsorbent carrier must have high oil adsorption and desorption capacity, wide interparticle void space and low porosity [7]. Usually, hydrophobic carriers have high OAC (oil adsorption capacity) and high flowability [8]. A solid carrier with high OAC is required less in amount, resulting in a lower dosage form [7, 8]. Formulations high in surfactant concentration adsorb well on hydrophobic adsorbents [9]. A high concentration of surfactants forms very small-sized droplets. Hence, an attempt was made to prepare such solid adsorbent carriers (microparticles) of chitosan with EDTA disodium by solvent evaporation and spray drying. Chitosan produces a clear solution with EDTA disodium in acetic acid [10]. This solution was subjected to solvent evaporation and spray drying to produce microparticles, which should be hydrophobic to ensure that the surface of these particles can be used for drug adsorption in the lipid phase [11]. The amide linkages in microparticles form a hydrophobic interpenetrating rough surface [12]. So, the present study aims to optimize microparticles by 3² full factorial experimental designs for solvent evaporation and spray drying methods. The chitosan–EDTA microparticles (CHEM) were characterized for their suitable hydrophobic surface to act as a good adsorbent base for S-SEDDS.

Materials and methods

Chitosan 90% DA (deacylated) was purchased from Marine hydrocolloids (Kerala, India). Ethylenediaminetetraacetic acid disodium (EDTA disodium) was purchased from CDH (India). Other chemicals purchased were Acetic acid (Rankem RFCL, India) and diiodomethane (TCI, Japan). Cremophor RH 40 (Himedia, India). Labrafac™ PG was a gift from Gattefossé (Canada). Other chemicals used were of analytical grade. They were used as received.

Design of experiment

To optimize the preparation of blank microparticles (CHEM), 3² full factorial design was used. The concentration ratio of chitosan–EDTA disodium and drying temperatures were observed as the critical factors and were two independent variables. Both had three different levels. Factors like zeta potential, percentage yield and particle size were considered dependent variables. All the responses were fitted in the least fit squares regression analysis using JMP 16 (Trial). Various outcomes of the mathematical model, like the actual vs predicted plot, ANOVA analysis, parameter estimates, model equation, prediction profiler, response surface, contour profilers, Pareto charts and optimization desirability, were determined to validate the model [13]. The desirability function was used for the selected responses for the optimization process. So, Y (practical yield, %) had to be maximized, ZP (zeta potential, mV) had to be maximized, and PS (Particle size, μm) had to be minimized.

The overall percentage of chitosan–EDTA disodium in solution was kept at 2% w/v because its viscosity remains adequate for flow at this concentration. Further, as mentioned in Table 1, three different ratios of chitosan–EDTA disodium (40:60, 50:50 and 60:40) were prepared.

Table 1 3² Full factorial design for SE-CHEM

Firstly, a weighed amount of chitosan was taken in a beaker and dissolved in 1 M (5.72%) glacial acetic acid at 800 rpm in a magnetic stirrer for two hours. A separate solution of EDTA disodium with double distilled water was prepared. EDTA disodium solution was added dropwise to chitosan solution under continuous vigorous stirring over 2000 rpm with a mechanical stirrer for 25–30 min to get a clear ionic solution [14]. Further, these different solutions were subjected to solvent evaporation and spray drying using a 3² full factorial design.

Preparation of Chitosan–EDTA microparticles (SE-CHEM) by solvent evaporation method

All three ratios of chitosan–EDTA disodium solutions were subjected to solvent evaporation in a Rota vacuum evaporator (Micro technologies, India) at a drying temperature range from 50 to 90 °C for 45–60 min, as in Table 2. Then, the dry film was scrapped carefully and dried in an oven to remove residual moisture for 40–50 min at 70 °C. The dried film was converted into powder by using a pestle mortar.

Table 2 3² Full factorial design for SD-CHEM (mention full form of this formulation)

Preparation of Chitosan–EDTA (SD-CHEM) microparticles by spray drying

The following overall spray drying specifications were used: Inlet temperature 110–150 °C, outlet temperature 50–70 °C, aspirator speed 1000–2000 rpm, atomization pressure 3 kg/cm² and feed pump at 15 rpm in Spray dryer (SprayMate JISL, India). The two ratios of solutions (40:60 and 50:50) were easily spray-dried. It was observed that the high chitosan ratio solution (60:40) posed a challenge during spray drying because of high viscosity; it clogged the 1 mm nozzle of the spray dryer frequently. The operation was stopped to clean the nozzle of the spray dryer, and it was not feasible to spray-dry this solution continuously. So, this solution with a 60:40 ratio of chitosan–EDTA disodium was not spray-dried for all three drying temperatures. Table 2 shows that only six trials were conducted for two ratio solutions.

Evaluation and characterization

Percentage yield

The percentage yield was calculated based on the total recoverable and original weight used [15].

Particle size and morphological evaluation

The surface morphology and topography of the particles were observed by the scanning electron microscope (ZEISS Sigma 360, Germany) at 20 kV (EHT) [16]. The samples were fixed on the SEM stub and coated with a thin layer of gold. Various images were taken at different magnifications. ImageJ (NIH) software was used to determine particle size by analyzing SEM images. The average Feret’s diameter was reported.

Zeta potential

100 mg of CHEM prepared by both techniques were taken and constantly stirred in 10 ml triple distilled water. The resulting suspension was centrifuged for 10 min at around 5000 rpm to separate the undissolved particles. Further, this mixture was analyzed for zeta potential in Zetasizer Nano ZS (at wavelength 638 nm) with a scattering angle of 90° at 25 °C. The study was performed in triplicate (Malvern Panalytical, UK) [17].

FTIR analysis

After drying the prepared samples (SD-CHEM, SE-CHEM, CH and EDTA) under vacuum, these were mixed and triturated with KBr (1:100 ratio) to form a fine mixture. This fine mixture was pressed to form the pellets in the KBr press. After placing these pellets in a sample cell, FTIR-ATR analysis was performed (FTIR PerkinElmer spectrum two, USA) in the 500–4000 cm⁻¹ spectral range at ambient temperature [18].

DSC analysis

The 5–15 mg samples of SD-CHEM (Y1), SE-CHEM (C2), CH and EDTA were sealed hermetically in aluminum pans. After placing these pans on the sample pan holder and empty pans on reference pan holders in a Differential scanning calorimeter (DSC-25 TA, USA), the thermograms for each sample were recorded from a 40–400 °C temperature range with 10 °C per minute heating rate in a nitrogen atmosphere.

XRD analysis

After grinding each sample (SD-CHEM, SE-CHEM, CH and EDTA) in mortar and pestle, the formed powder was placed and pressed in a sample holder to form a compact powder and X-ray diffraction patterns of the samples were measured using the X-ray diffractometer (XRD Aeris, Malvern Panalytical, UK) at a voltage of 45 kV (with increment size of 0.03° and 0.1 as an increment time).

Flow properties

For all the batches of microparticles, the angle of repose was calculated. In it, graph paper was positioned on a flat horizontal surface, and a funnel was clamped above it with a distance between the paper and the funnel top (about 7–8 cm). 2 g of powder samples for each trial of SE-CHEM and SD-CHEM were weighed and poured into the funnel until the top of the cone-shaped only met the funnel’s top. The height (h) and diameter of the cone-shaped heap of powder (D) were measured, and the angle of repose was calculated with a standard formula (tan α = 2 h/D). The flow is said to be excellent when the angle of repose is less than 25 degrees; on the other hand, the flow is said to be poor when the angle of repose is greater than 40 degrees. For bulk density, 2 g powder was weighed and carefully leveled without tapping into a graduated glass cylinder. To the closest graduated device, the apparent volume before tapping was read as untapped volume (USP method). This volume was used in the standard formula (Bulk density = Weight/untapped volume), and values were calculated. The volume of the powder-filled cylinder was measured after 500 tappings. The tapping was kept running until the frequency difference between the two sets of tapping was less than 0.2 percent. The final volume was noted, and the tapped density in g/ml was calculated using the standard formula (Tapped density = Weight/tapped volume). These readings were used to calculate Carr’s index (CI) and Hausner’s ratio (HR). {CI = [(Tapped density – Bulk density/Tapped density) × 100] and HR = Tapped density/Bulk density}. A Carr’s index of more than 25 indicates bad flowability, while if its value is less than 15, it indicates good flowability. Hausner’s ratios below 1.25 suggest greater flow properties than those above 1.25 [19].

Oil adsorbing capacity (OAC) and oil desorbing capacity (ODC)

The optimized formulations of SD-CHEM and SE-CHEM, i.e., Y₁ and C₂, respectively, were taken for OAC and ODC study. The ethanolic solutions of Cremophor RH 40 and Labrafac were prepared and mixed with the microparticles (CHEM). These mixtures were gently heated at 40 ± 4 °C to evaporate the ethanol. The pure weight of adsorbent microparticles ($W$_a) and the dry weight of oil-adsorbed microparticles after the complete removal of ethanol ($W$_b) were taken to calculate the OAC. Only those dried mixtures which showed no significant change in physical properties from the pure CHEM and were non-sticky, non-greasy and free-flowing and were considered for the OAC calculations with the following formula [5].

$${\text{OAC}}=\frac{W{\text{b}}- W{\text{a}}}{W{\text{a}}}*100$$

(1)

The dried oil-adsorbed microparticles ($W$_b) were suspended in 10 ml water and gently stirred and stabilized for 1 h. This mixture was centrifuged at 3000 rpm for 10 min. The suspended particles were recovered, dried and weighed $(W$_c). The following formula was used for ODC [5].

$${\text{ODC}}=\frac{W{\text{b}}- Wc}{Wc}*100$$

(2)

Dynamic advancing contact angle analysis and surface free energy components analysis

The advanced method was used based on the capillary rise and thin column wicking methods to find the surface free energy components of powdered solids developed by Chibowski and Perea-Carpio [21] for SD-CHEM (Y₁) and SE-CHEM (C₂) [20, 21]. The dynamic advancing contact angle and surface free energy components were determined before and after oil adsorption for microparticles. The four probe liquids with known surface tension components were used. Out of these, diiodomethane (γ_l^lw = 50.8, γ_l⁺ = 0, γ_l⁻ = 0) and n-hexane (γ_l^lw = 18.4, γ_l⁺ = 0, γ_l⁻ = 0) were apolar with known liquid apolar surface free energy component. The other two liquids, dimethyl sulphoxide (DMSO γ_l^lw = 36, γ_l⁺ = 0.5, γ_l⁻ = 32) and water (γ_l^lw = 21.8, γ_l⁺ = 25.5, γ_l⁻ = 25.5), were polar with known liquid surface free energy polar components.

In this method, 0.2 g of the samples were weighed out in the plastic tips (2 ml, Merck) with outlets blocked by nylon swabs to prevent leakage of the solid powder. The tip was tapped ten times by hand from a height of 10 cm on the laboratory table for uniform packing. The tip was then dipped 3–4 mm into the probe liquid container (advancing manner). The tip was weighed for liquid retained by the solid powder (m_a). After that, some drops from the same probe fluid were put onto the bed powder top. The liquid was allowed to filter (receding manner), and the new weight was measured (m_r). The process was repeated three times, and the average of three determinations was used. The powdered samples (Y₁, C₂) underwent a similar procedure before and after oil adsorption for all the probe liquids.

The effective pore radius (R_ef.) was calculated by using the (m_r) of n-hexane probe liquid (surface tension, γ_l = 18.4mN/m) and acceleration due to gravity (g) in the following equation.

$$W = m_{{\text{r}}} g = 2\pi R_{{{\text{ef}}{.}}} \gamma_{l}$$

(3)

W = weight of the liquid in the column.

The n-hexane determines the effective radius because alkanes completely wet the solid surface. In the following equation, the effective pore radius (R_ef.), along with (m_a) of water probe liquid, was used for further calculation of the dynamic advancing contact angle (θ_a).

$$1 + \cos \theta a = \frac{{m_{{\text{a}}} g}}{{2\pi R_{{{\text{ef}}{.}}} \gamma_{l} }}$$

(4)

$$W_{{\text{a}}} = \gamma_{l} \left( {1 + \cos \theta_{{\text{a}}} } \right)$$

(5)

where g = 9.8 m/s², γ_l = 72.8 mN/m.

The advancing contact angle here remains different from the contact angle on a smooth surface of a similar solid. Hence, it cannot be used directly in the Young formula for calculating surface free energy components. The three works of adhesion (W_a) values of the used probe liquid onto the solid surface were calculated by finding out the θ_a of three probe liquids, diiodomethane, DMSO and water (by putting ma values simultaneously in Eq. 4).

Further, by putting these different W_a values simultaneously in Eq. 6 of three probe liquids (with known liquid surface free energy components, i.e., γ_l^LW, γ_l⁺, γ_l⁻), the different unknown components (γ_s^LW apolar Lifshitz–van der Waals, γ_s⁻ electron donor and γ_s⁺ electron acceptor interactions) can be solved.

$$W_{{\text{a}}} = 2\left[ {\left( {\gamma_{s}^{{{\text{LW}}}} \gamma_{l}^{{{\text{LW}}}} } \right)^{1/2} + \left( {\gamma_{s}^{ + } \gamma_{l}^{ - } } \right)^{1/2} + \left( {\gamma_{s}^{ - } \gamma_{l}^{ + } } \right)^{1/2} } \right]$$

(6)

Results

The process was optimized using a factorial experimental design (3²), the chitosan–EDTA disodium ratio and processing temperature varied on three levels. The disodium salt was used to increase the solubility of the EDTA, as it remains insoluble in the acidic pH. The dropwise addition of the EDTA disodium into the chitosan–acetic acid mixture ensures no precipitation of the solution, which is otherwise observed.

In Tables 1 and 2, all the results of percentage yield (%), zeta potential (mV) and particle size (µm) are given for both SE-CHEM and SD-CHEM.

Optimization

Optimization of Solvent evaporation method by QbD

As per the mentioned method, SE-CHEM were synthesized and analyzed for the response for Y (percentage yield %), ZP (zeta potential mV) and PS (particle size µm). The independent variables CH (CH/EDTA ratio) and DT (drying temp.) were given three levels (1, 2 and 3), as mentioned in Table 1. All nine experiment runs and analyzed responses were put in the least squares fit regression analysis using JMP 16 (Trial).

In the effect summary in Table 3, LogWorth and p value for CH, DT and CH × DT are mentioned for SE-CHEM, which indicates CH as the essential variable in this model, followed by DT and CH × DT (interaction). Actual vs. predicted plots are given in Fig. 1 for all the responses, showing that both actual and predicted values are quite close. Table 3, for a summary of fit, indicates that the R² values are closer to one, signifying a good model fit. In Table 3, ANOVA results are summarized, which shows the models are significant (p values less than 0.05) for all the responses.

Table 3 Least squares fit effect summary

Fig. 1

Actual vs predicted plot of SE-CHEM for the responses A practical yield Y, B zeta potential ZP and C particle size PS. After 3² full factorial design was applied and model was run. In all the Actual vs predicted plots both actual and predicted values are quite close to each other. Here, the low RMSE (Root Mean Square Error) values in Y, ZP and PS plots indicated the model is significant and fits the data well. The R Squared (R²) values in Y, ZP and PS plots predicts the percentage of the relationship between independent variables [CH (chitosan–EDTA ratio) and DT (Drying temp.)] and dependent variables (Y, ZP and PS). These plots depicted 96%, 83% and 94% relationship between the independent variables and Y, ZP and PS, respectively. P value less than 0.05 showed all the model is statistically significant for Y, ZP and PS

Table 3 (for parameter estimates) and Fig. 2a for prediction profiler depict CH (CH/EDTA ratio) as the most important independent variable, followed by DT, for any change in responses. The small particle size of the adsorbent base powder is essential for a high surface area to have high oil adsorption and desorption. It shows that CH and DT have a positive (or additive) effect on a percentage yield (Y%). The parameter estimates and prediction profiler in Fig. 2a for ZP show that both CH and DT have a positive effect on it. It is clear from parameter estimates that the CH × DT interaction significantly contributes to the regression model for smaller particle size (PS). CH and DT have a negative effect on PS. The response surface diagrams (Fig. 3) and Pareto charts (Fig. 4) confirm the same results. Pareto charts also show the individual effect of each independent variable and their interaction on both responses. The fitted equations for all the responses are:

Fig. 2

Prediction profiler of practical yield (Y), zeta potential (ZP) and particle size (PS): A SE-CHEM, B SD-CHEM. The prediction profiler depicted CH (CH/EDTA ratio) as the most important independent variable, followed by DT (Drying temp.), for any change in responses of Y, ZP and PS (in both SE-CHEM and SD-CHEM). For A SE-CHEM, it showed that CH and DT had a positive (or additive) effect on a percentage yield (Y) and zeta potential ZP. CH and DT had a negative effect on PS. For B SE-CHEM, prediction profiler showed that CH and DT had a positive (or additive) effect on a percentage yield (Y) and zeta potential ZP. CH and DT had a negative effect on PS. With the use of prediction profiler, the variables value can be predicted as per needed desirability by dragging the function handles left or right in JMP

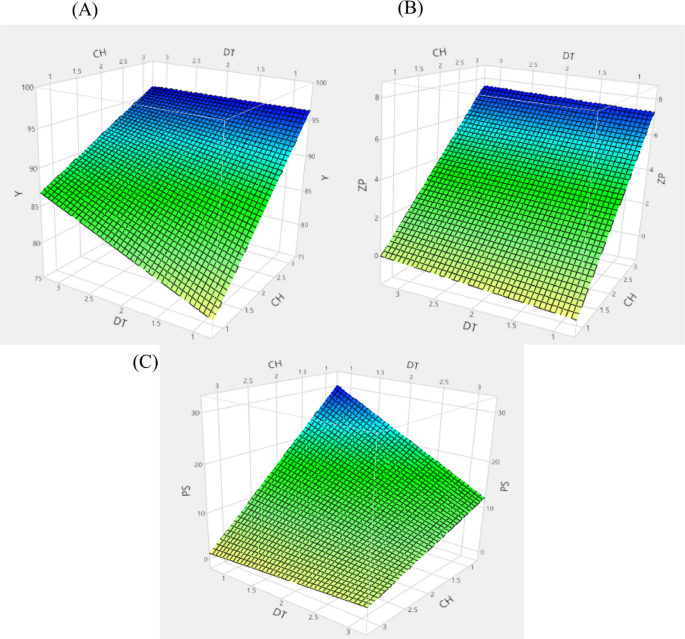

Fig. 3

Response surface diagrams of SE-CHEM in relation to CH versus DT A practical yield Y, B zeta potential ZP and C particle size PS. It is clear from figure A and B that a high percentage of CH (CH/EDTA ratio) from (40:60) to (60:40) leads to an increase in Y, which means when chitosan increases in (CH/EDTA ratio), then Y got increased. Similarly, when DT (Drying temp.) increased, there was an increase in both Y and ZP, which means a high drying temp was responsible for it. In the case of C, particle size PS, an increase in CH × DT negatively affects PS (decrease in size)

Fig. 4

Pareto charts for SE-CHEM A practical yield, B zeta potential and C particle size. ZP show that both CH and DT have a positive effect on it. It is clear from parameter estimates that the CH × DT interaction significantly contributes to the regression model for smaller particle size (PS). CH and DT have a negative effect on PS

For percentage yield (Y):

$$\begin{aligned}&89.188 + 5.716 \times \left( {:{\text{CH}} - 2} \right) + 1.916 \times \left( {:{\text{DT}} - 2} \right)\\ &\quad + \left( {:{\text{CH}} - 2} \right)\times \left( {:{\text{DT}} - 2} \right) \times - 1.525\end{aligned}$$

For zeta potential (ZP):

$$\begin{aligned}&3.553 + 3.106 \times \left( {:{\text{CH}} - 2} \right) + 0.1925 \times \left( {:{\text{DT}} - 2} \right)\\ &\quad+ \left( {:{\text{CH}} - 2} \right) \times \left( {:{\text{DT}} - 2} \right) \times 0.068\end{aligned}$$

For particle size (PS):

$$\begin{aligned}&11.735 + - 7.625 \times \left( {:{\text{CH}} - 2} \right) + - 3.183 \times \left( {:{\text{DT}} - 2} \right)\\ &\quad + \left( {:{\text{CH}} - 2} \right) \times \left( {:{\text{DT}} - 2} \right) \times 3.17625\end{aligned}$$

The optimization of the selected responses was targeted with a desirability function. For this purpose, Y and ZP were maximized, and PS was minimized. In Fig. 5a (contour plot), the white area shows the design space where the Y and ZP will be maximum and PS will be minimum.

Fig. 5

Contour plots of practical yield (Y), zeta potential (ZP) and particle size (PS): A SE-CHEM, B SD-CHEM. A In this contour plot, white area shows the design space where the Y and ZP will be maximum and PS will be minimum. So, the desirability for percentage yield (%) and zeta potential (mV) is always more than 84%, 8 mV and for particle size (µm) < 6 µm can be obtained with CH/EDTA ratio (60:40) and drying temperature (70 °C). B The white area of contour plot, shows the design space where the Y and ZP will be maximum and PS will be minimum. So, from these optimization studies, the desirability for percentage yield (%) and zeta potential (mV) are always more than 55%, 4 mV and for particle size (µm) < 3 µm can be obtained with CH/EDTA ratio (50:50) and drying temperature (110 °C)

So, from these optimization studies, the desirability for percentage yield (%) and zeta potential (mV) is always more than 84%, 8 mV and for particle size (µm) < 6 µm can be obtained with CH/EDTA ratio (60:40) and drying temperature (70 °C). So, the C₂ formulation in Table 1 is the optimized formulation with maximum desirability.

Optimization of spray drying method by QbD

The SD-CHEM were synthesized and analyzed for the response for Y (percentage yield %), ZP (zeta potential mV) and PS (particle size, µm). The independent variables CH (CH/EDTA ratio) with two levels (− 1 and 1) and DT (drying temp.) were given three levels (1, 2 and 3), as mentioned in Table 2. All six experiment runs and analyzed responses were put in the least squares fit regression analysis using JMP 16 (Trial).

In the effect summary in Table 3, LogWorth and p value for CH, DT and CH × DT are mentioned for SD-CHEM, which indicates CH × DT as the most important in the model, followed by CH and DT. Actual vs. predicted plots are given in Fig. 6 for all the responses, showing that both actual and predicted values are significantly close. Table 3, for a summary of fit, shows that the R² value for all the responses is > 0.90, signifying a good model fit. In Table 3, ANOVA results are summarized, which shows the p value of Y is 0.011, showing it is a significant model. The p values of ZP and PS are 0.127 and 0.064, respectively, which is almost significant for PS and not for ZP.

Fig. 6

Actual versus predicted plot of SD-CHEM for the responses A practical yield Y, B zeta potential ZP and C particle size PS. After 3² full factorial design was applied and model was run. In all the Actual versus predicted plots both actual and predicted values are quite close to each other. Here, the low RMSE (Root Mean Square Error) values in Y, ZP and PS plots indicated the model is significant and fits the data well. The RSq (R²) values in Y, ZP and PS plots predict the percentage of the relationship between independent variables [CH (chitosan–EDTA ratio) and DT (Drying temp.)] and dependent variables (Y, ZP and PS). These plots depicted 99%, 91% and 96% relationship between the independent variables and Y, ZP and PS, respectively. P value less than 0.05 showed the model is statistically significant for Y and ZP and P value 0.06 is very close to statistically significant model for PS

Table 3 (for parameter estimates) and Fig. 2b for prediction profiler depict CH × DT as the model’s most important contributor for Y and PS responses. CH is the most important contributor to the ZP response. It shows on Y (%), and CH has a positive effect, while DT negatively affects it. Both CH and DT positively affect ZP and have a negative effect on PS. The response surface diagrams (Fig. 7) and Pareto charts (Fig. 8) confirm the same results. The fitted equations for the responses are as follows:

Fig. 7

Response surface diagrams of SD-CHEM in relation to CH/EDTA and DT versus A practical yield Y, B zeta potential ZP and C particle size PS. From figure A and B that a high percentage of CH (CH/EDTA ratio) from (40:60) to (60:40) leads to an increase in Y, which means when chitosan increases in (CH/EDTA ratio), then Y got increased. Similarly, when DT (Drying temp.) increased, there was an increase in both Y and ZP, which means a high drying temp was responsible for it. In the case of C, particle size PS, an increase in CH × DT negatively affects PS (decrease in size)

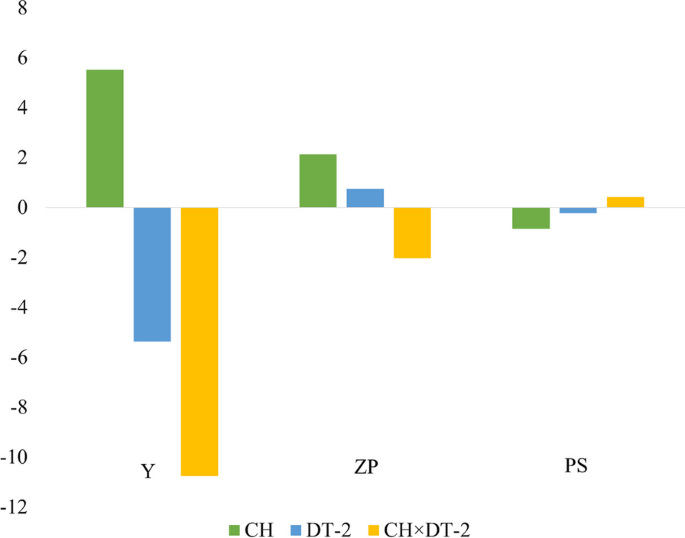

Fig. 8

Pareto charts for SD-CHEM A practical yield, B zeta potential and C particle size. It shows on Y (%), CH has a positive effect, while DT negatively affects it. Both CH and DT positively affect ZP and have a negative effect on PS

For percentage yield (Y):

$$\begin{aligned}&37.075 + 5.508 \times :{\text{CH}} + - 5.362 \times \left( {:{\text{DT}} - 2} \right)\\ &\quad+ :{\text{CH}} \times \left( {:{\text{DT}} - 2} \right) \times - 10.762\end{aligned}$$

For zeta potential (ZP):

$$\begin{aligned}& 0.62 + 2.126 \times :{\text{CH}} + 0.752 \times \left( {:{\text{DT}} - 2} \right) \\ &\quad+ :{\text{CH}} \times \left( {:{\text{DT}} - 2} \right) \times - 2.037\end{aligned}$$

For particle size (PS):

$$\begin{aligned}&3.855 + - 0.862 \times :{\text{CH}} + - 0.234 \times \left( {:{\text{DT}} - 2} \right)\\ &\quad+ :{\text{CH}} \times \left( {:{\text{DT}} - 2} \right) \times 0.418\end{aligned}$$

The optimization of the selected responses was targeted with a desirability function. For this purpose, Y and ZP were maximized, and PS was minimized. In Fig. 5b (contour plot), the white area shows the design space where the Y and ZP will be maximum and PS will be minimum.

So, from these optimization studies, the desirability for percentage yield (%) and zeta potential (mV) are always more than 55%, 4 mV and for particle size (μm) < 3 μm can be obtained with CH/EDTA ratio (50:50) and drying temperature (110 °C). So, the Y₁ formulation in Table 2 is optimized with maximum desirability.

FTIR analysis

FTIR spectra of the prepared SE-CHEM and SD-CHEM, along with chitosan and EDTA disodium, are shown in Figs. 9 and 10, respectively. Chitosan FTIR spectra showed strong absorption bands between 2967 and 2937 cm⁻¹, which correlated with C–H stretching, a characteristic of a typical polysaccharide group. The presence of residual N-acetyl groups was observed at an absorption peak of 1657 cm⁻¹, which proves that chitosan was not fully deacylated. The absorption bands 1587 cm⁻¹, 1547 cm⁻¹ and 1325 cm⁻¹ confirmed N–H bending of primary amine, amide II and C-N stretching of amide III respectively [22]. The absorption bands 1437 cm⁻¹, 1395 cm⁻¹ and 1030 cm⁻¹ corresponded to CH₂ bending, symmetrical CH₃ deformation and C–O stretching, respectively [23]. The FTIR of EDTA disodium showed N–H stretching between bands 3027–2945 cm⁻¹, C–H stretching between 2879 and 2793 cm⁻¹. The absorption bands 1666–1607 cm⁻¹, 1474 cm⁻¹ and 1394 cm⁻¹ showed –C=O stretching, CH₂ bending and O–H bending, respectively [24]. The optimized microparticles C₂ (SE-CHEM) and Y₁ (SD-CHEM) showed absorption bands between 1676–1657 cm⁻¹ and 1693–1667 cm⁻¹ respectively, representing the amide linkage. Again, the optimized microparticles C₂ (SE-CHEM) and Y₁ (SD-CHEM) showed absorption bands between 2378 and 2373 cm⁻¹, which corresponds to free acetate moieties, and indicates that all the acetate moieties were not involved in the amide linkage. Similarly, FTIR spectra of other SE-CHEMs and SD-CHEMs confirm the same results.

Fig. 9

FTIR spectra of chitosan (CH), EDTA disodium (EDTA) and SE-CHEM. The samples with KBr pellet were measured (at ambient temp.) for FTIR-ATR analysis in the 500–4000 cm⁻¹ spectral range. The C₂ (SE-CHEM) showed absorption bands between 1676–1657 cm⁻¹ and 1693–1667 cm⁻¹, representing the amide linkage. The absorption bands between 2378 and 2373 cm⁻¹ correspond to free acetate moieties

Fig. 10

FTIR spectra of chitosan (CH), EDTA disodium (EDTA) and SD-CHEM. The samples with KBr pellet were measured (at ambient temp.) for FTIR-ATR analysis in the 500–4000 cm⁻¹ spectral range. The spectra of Y₁ (SD-CHEM) showed absorption bands between 1676–1657 cm⁻¹ and 1693–1667 cm⁻¹, representing the amide linkage. The absorption bands between 2378 and 2373 cm⁻¹ correspond to free acetate moieties

DSC analysis

Figure 11 shows the DSC analysis of the samples. The thermogram of chitosan, C₂ and Y₁ showed an endotherm transition near 100 °C due to the evaporation of moisture or the presence of acetic acid moieties. The exothermic transition around 311 °C corresponds to the degradation of the chitosan. The melting of the chitosan is not observable because of the amorphous regions present, so it remains near the degradation point [25]. In the EDTA thermogram, the sharp endotherm starting at 243.96 °C corresponds to the melting of it. The C₂ and Y₁ thermograms show an endothermic transition around 240 °C and exothermic transitions near 312–14 °C. This analysis confirmed the purity of the synthesized SE-CHEM and SD-CHEM.

Fig. 11

DSC graphs of chitosan, EDTA disodium, C₂ and Y₁. The DSC thermograms were recorded in a Differential scanning calorimeter from 40 to 400 °C temperature range. The CH, C₂ and Y₁ showed an endotherm transition near 100 °C, 240 °C (C₂ and Y₁) and for EDTA near 243.96 °C. The CH showed exothermic transition around 311 °C and C₂ and Y₁ thermograms showed it at 312–314 °C

XRD analysis

XRD patterns of the prepared SE-CHEM and SD-CHEM, along with chitosan and EDTA disodium, are shown in Figs. 12 and 13, respectively. The XRD pattern for chitosan showed two diffraction peaks, one at 2θ = 20.37°, which indicates the characteristic of semicrystalline regions for chitosan and the other at 2θ = 29.57°, which relates to calcite region [26, 27]. The EDTA disodium XRD pattern showed the major diffraction peaks at 2θ = 21.2°, 2θ = 26.5°, 2θ = 29.8°, 2θ = 34.3° and 2θ = 45.4°. All these diffraction peaks correspond to the characteristic crystalline region of EDTA disodium [28]. The SD-CHEM samples showed broad diffraction peaks at 2θ = 21.2°, 2θ = 23°, 2θ = 26.5° and 2θ = 29.8°. Similarly, SE-CHEM samples showed that diffraction peaks at 2θ = 21.2° and 2θ = 23° almost disappeared, and diffraction peaks at 2θ = 26.5° and 2θ = 29.8° were very broad and broad, respectively. These results indicate that microparticles formed from the two methods are amorphous.

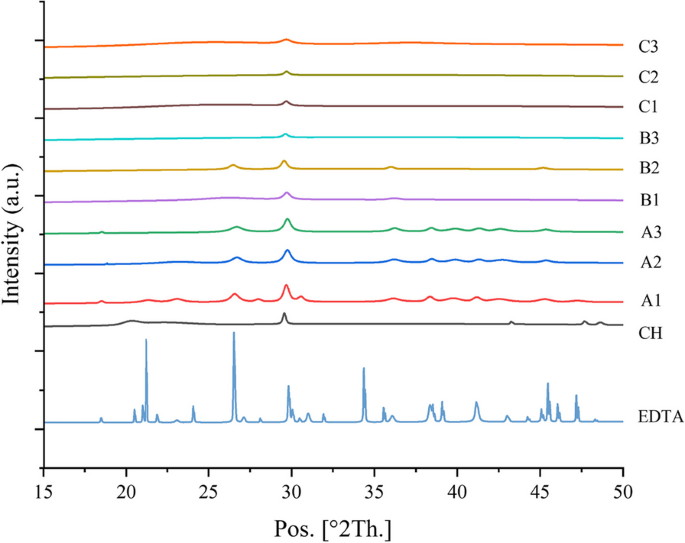

Fig. 12

XRD graphs of chitosan (CH), EDTA disodium (EDTA) and SE-CHEM samples were measured using the X-ray diffractometer at a voltage of 45 kV. The XRD pattern for chitosan showed two diffraction peaks, one at 2θ = 20.37° and 2θ = 29.57°, while EDTA disodium diffraction peaks were at 2θ = 21.2°, 2θ = 26.5°, 2θ = 29.8°, 2θ = 34.3° and 2θ = 45.4°. SE-CHEM samples showed diffraction peaks at 2θ = 26.5° and 2θ = 29.8°

Fig. 13

XRD graphs of chitosan (CH), EDTA disodium (EDTA) and SD-CHEM samples were measured using the X-ray diffractometer at a voltage of 45 kV. The XRD pattern for chitosan showed two diffraction peaks, one at 2θ = 20.37° and 2θ = 29.57°, while EDTA disodium diffraction peaks were at 2θ = 21.2°, 2θ = 26.5°, 2θ = 29.8°, 2θ = 34.3° and 2θ = 45.4°. SD-CHEM samples showed broad diffraction peaks at 2θ = 21.2°, 2θ = 23°, 2θ = 26.5° and 2θ = 29.8°

Surface characteristics

To understand the shape and surface morphology of the microparticles, the scanning electron microscope images of the chitosan, EDTA disodium, C₂ and Y₁ (shown in Fig. 14) were taken. In Fig. 14c, the SE-CHEM (C₂) microparticles had a flaky appearance with an uneven surface, providing a high surface area for the adsorption of liquid SEDDS. Figure 14d shows the SD-CHEM (Y₁) microparticles, which are much spherical with uneven surfaces and wide void spaces, leading to better oil adsorption and desorption.

Fig. 14

Scanning electron micrographs A chitosan, B EDTA disodium, C C₂ and D Y₁. C The SE-CHEM (C₂) microparticles had a flaky appearance. D SD-CHEM (Y₁) microparticles were spherical

Flow properties

The angle of repose (Fixed funnel method), apparent bulk density, tapped density, Carr’s index and Hausner’s ratio were calculated for the flowing characteristic of the microparticles, and the results are shown in Table 4, which shows all the parameters were in acceptable limits [29]. The angle of repose values for all the microparticles were between 9 and 17. Both optimized microparticles, C₂ and Y₁, were free-flowing.

Table 4 Flow properties

OAC and ODC

Cremophor RH 40 and Labrafac were used for the OAC and ODC study; Fig. 15 shows the results. The oil adsorption for both the microparticles was significant, but Y₁ has it slightly higher than C₂ for both Labrafac and Cremophor RH 40. These results relate to the surface morphology analysis, where Y₁ showed a much spherical structure with wide voids compared to C₂, with a flaky structure.

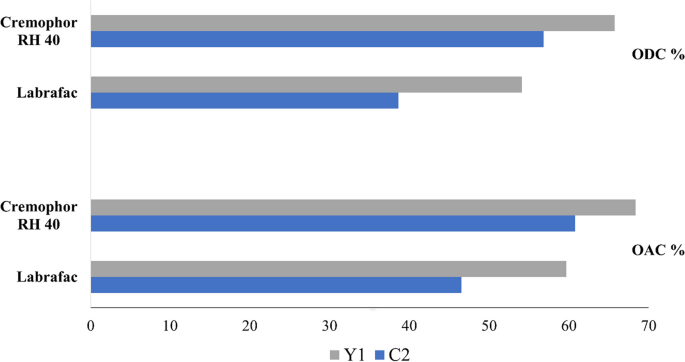

Fig. 15

Oil adsorbing capacity (OAC) and oil desorbing capacity (ODC) for C₂ and Y₁. Cremophor RH 40 and Labrafac were used for the OAC and ODC study. The OAC of Y₁ was slightly higher than C₂ for both Labrafac and Cremophor RH 40

Dynamic advancing contact angle and surface free energy components analysis

For the adsorption and desorption phenomena to happen on the microparticle’s surface, the surface free energy components, i.e., apolar or dispersive component [γ^LW (mJ/m²)] and polar component [γ^P (mJ/m²)] are very important to understand. The γ^LW component is related to the hydrophobic surface, and the γ^P component relates to the hydrophilic part of the surface.

In Fig. 16, the results of the surface free energy components and dynamic advancing contact angles [θ_a (°)] are shown. The γ^LW components of C₂ and Y₁ were enhanced after oil adsorption (for both Labrafac and Cremophor RH 40); this indicates that increased γ^LW components can reduce oil droplet size significantly after reconstitution of the nanoemulsion from the surface of the adsorbent microparticles. In contrast, the γ^P components were decreased after the oil adsorptions for both microparticles. This result is significant in understanding that the microparticles can give ample surface free energy for the stable nanoemulsion, leading to good oil desorption.

Fig. 16

Surface free energy components (dispersive component, γ^LW and polar component, γ^P) and dynamic advancing contact angles (θ_a) for C₂ and Y₁. The γ^LW components of C₂ and Y₁ were enhanced after oil adsorption (for both Labrafac and Cremophor RH 40). The γ^P components were decreased after the oil adsorptions for both microparticles. The dynamic advancing contact angles (θ_a) were also significantly increased after the oil adsorption

The dynamic advancing contact angles (θ_a) were also significantly increased after the oil adsorption. Increased θ_a indicates the hydrophobicity of the surface, which is vital for the development of stable nanoemulsion.

Discussion

The solid adsorbent base with an excellent hydrophobic surface, oil adsorption and desorption capacities will play a crucial role in developing the S-SEDDS [30]. Hence, an attempt was made to develop the microparticles of chitosan–EDTA disodium. Such adsorbent microparticles will allow the incorporation of poorly water-soluble and thermolabile drugs into the S-SEDDS [31]. The solvent evaporation and spray drying techniques were explored to synthesize and characterize SE-CHEM and SD-CHEM microparticles, respectively. In the preliminary study, it was evident that the chitosan–EDTA disodium ratio and processing temperature in the solvent evaporation and spray drying procedures play a crucial role in the various properties of the microparticles like water solubility, yield, particle size and zeta potential. So, optimization was required for the development of the CHEM. The process was optimized using 3² full factorial designs, which showed a CH/EDTA ratio (60:40) and drying temp. 70 °C for solvent evaporation method and inlet temp. 110 °C and CH/EDTA ratio (50:50) produced SE-CHEM (C₂) and SD-CHEM (Y₁), respectively, with highest yield, zeta potential and lowest particle size. The different characterization studies like DSC and FTIR analysis for both optimized microparticles confirmed the amide conjugation between the CH and EDTA and free acetate moieties’ existence. XRD study confirmed the broadening of the diffraction peaks for both C₂ and Y₁, suggesting the amorphous character of the particles. The high oil adsorption and desorption were achieved for both microparticles, confirmed by OAC and ODC studies. The ODC is closer to the OAC, which signifies that the amount of oil adsorbed by the microparticles will be desorbed in a very close quantity to adsorption. Surface morphology analysis through SEM images confirmed the flaky appearance of C₂ and Y₁, showing a spherical shape with voids. Flowability analysis revealed that both the microparticles were free-flowing. The surface free energy component analysis before and after oil adsorption revealed the enhancement in the dispersive components for both microparticles; this property leads to a reduction in oil droplet size on reconstitution of S-SEDDS, whereas reduced polar components after oil adsorption suggest microparticle’s ability to provide sufficient surface free energy for the stability of the nanoemulsion after reconstitution. The enhanced dynamic advancing contact angles for C₂ and Y₁ indicated the hydrophobic surface of the microparticles, which was evident in high OAC for both microparticles. All these results suggest that both the microparticles can serve as stable adsorbent base for solid SEDDS to produce stable nanoemulsion after reconstitution.

Conclusion

This study has reported development of superior adsorbent carrier (microparticles) by solvent evaporation and spray drying techniques. The development of the CH-EDTA disodium microparticles (adsorbent carriers) by the solvent evaporation and spray drying methods is simplistic and practical, with the potential to be adopted at an industrial scale. The results of improved OAC, ODC and surface free energy components were satisfactory. They will prove beneficial for these microparticles to fabricate them with the liquid self-emulsifying drug delivery systems. The microparticles developed with both techniques were superior in their qualities as an adsorbent base for the solidification of SEDDS. However, if we compare both techniques, the microparticles developed by the spray drying technique were better than those from the solvent evaporation technique. The SE-CHEM had the advantage of a greater percentage yield as no minimal loss occurred during production, while SE-CHEM suffered a more significant loss and had a low percentage yield during the process. Further, the fabrication of these microparticles with SEDDS (of suitable drugs) is required to form a solid self-emulsifying drug delivery system, whose analysis in in vitro and ex vivo conditions will give a clear image of these microparticle’s ability to enhance the drug loading, dissolution and bioavailability and to form a stable solid self-emulsifying drug delivery system.
